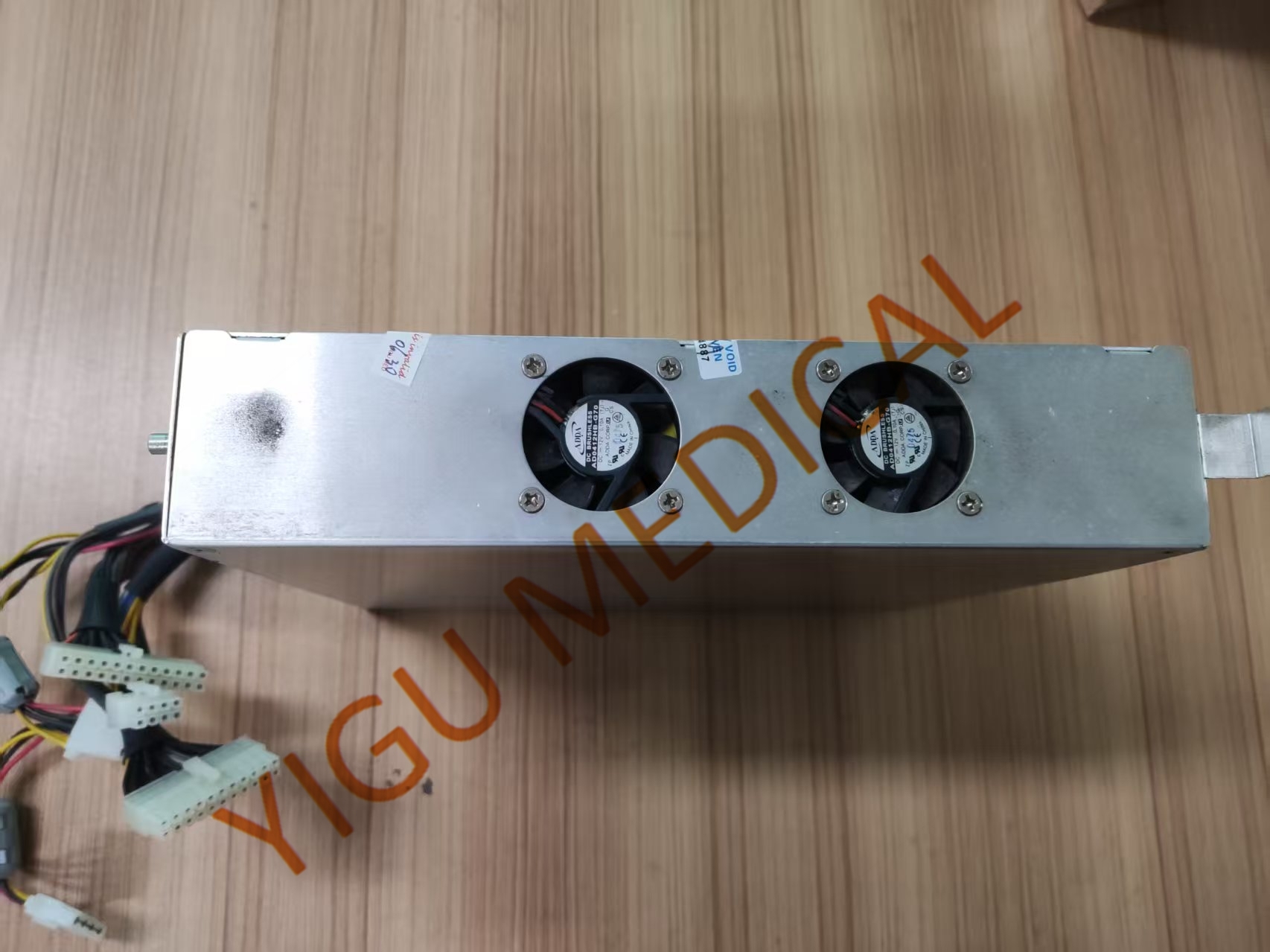

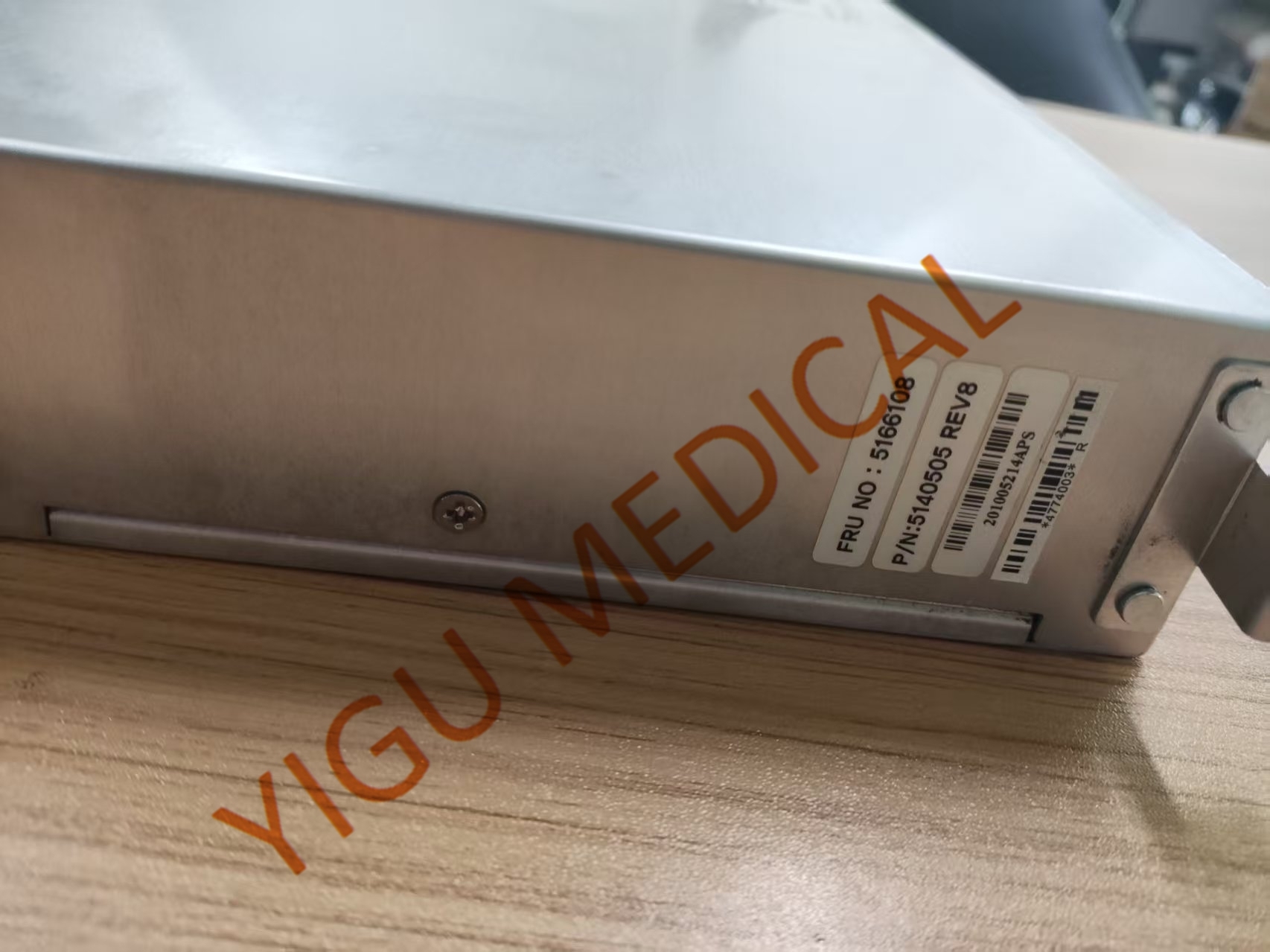

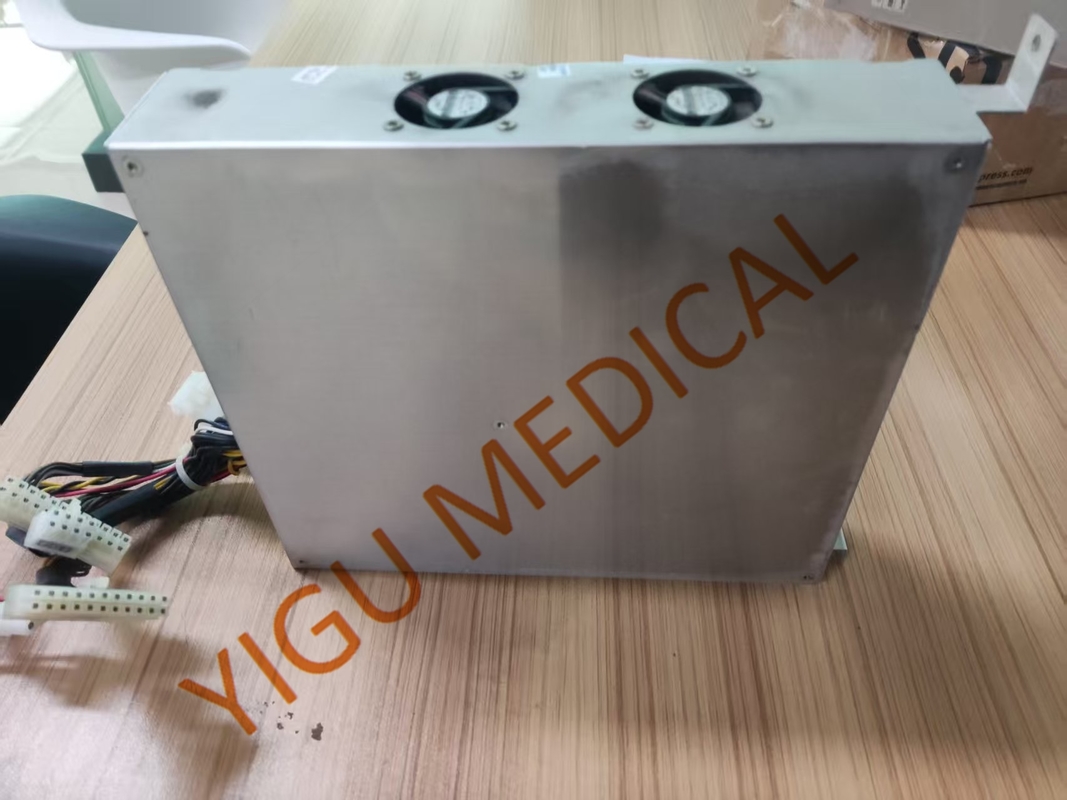

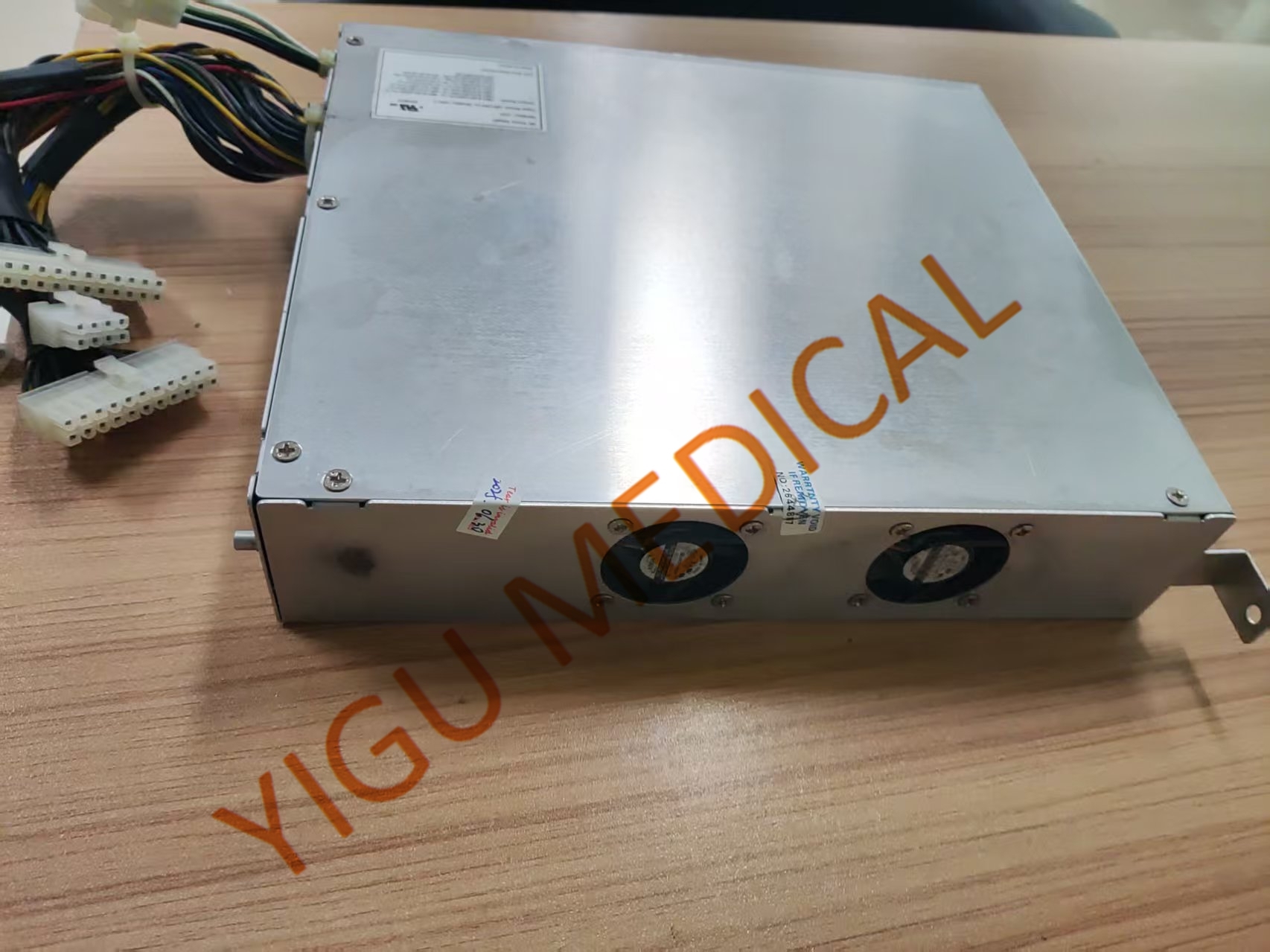

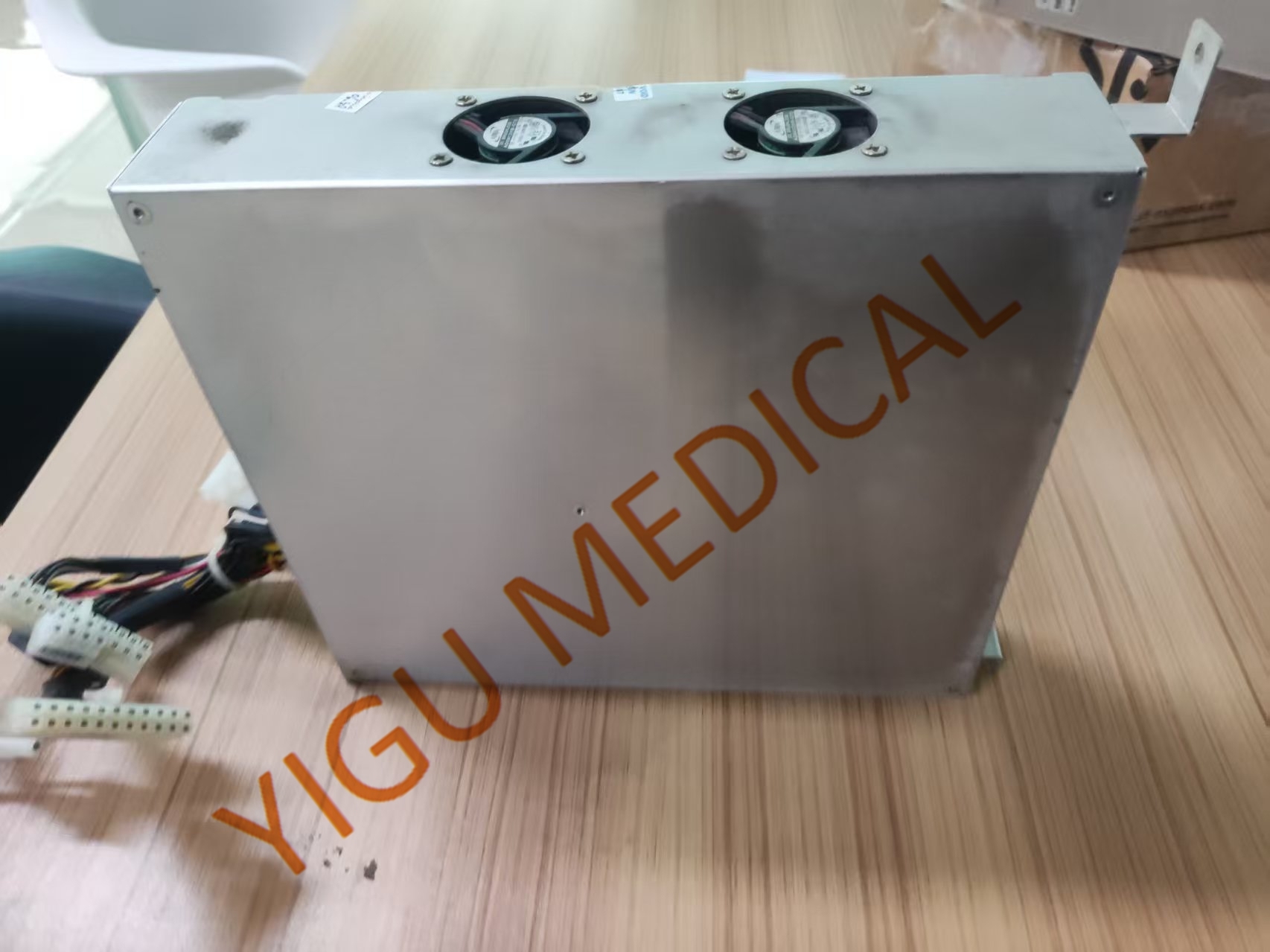

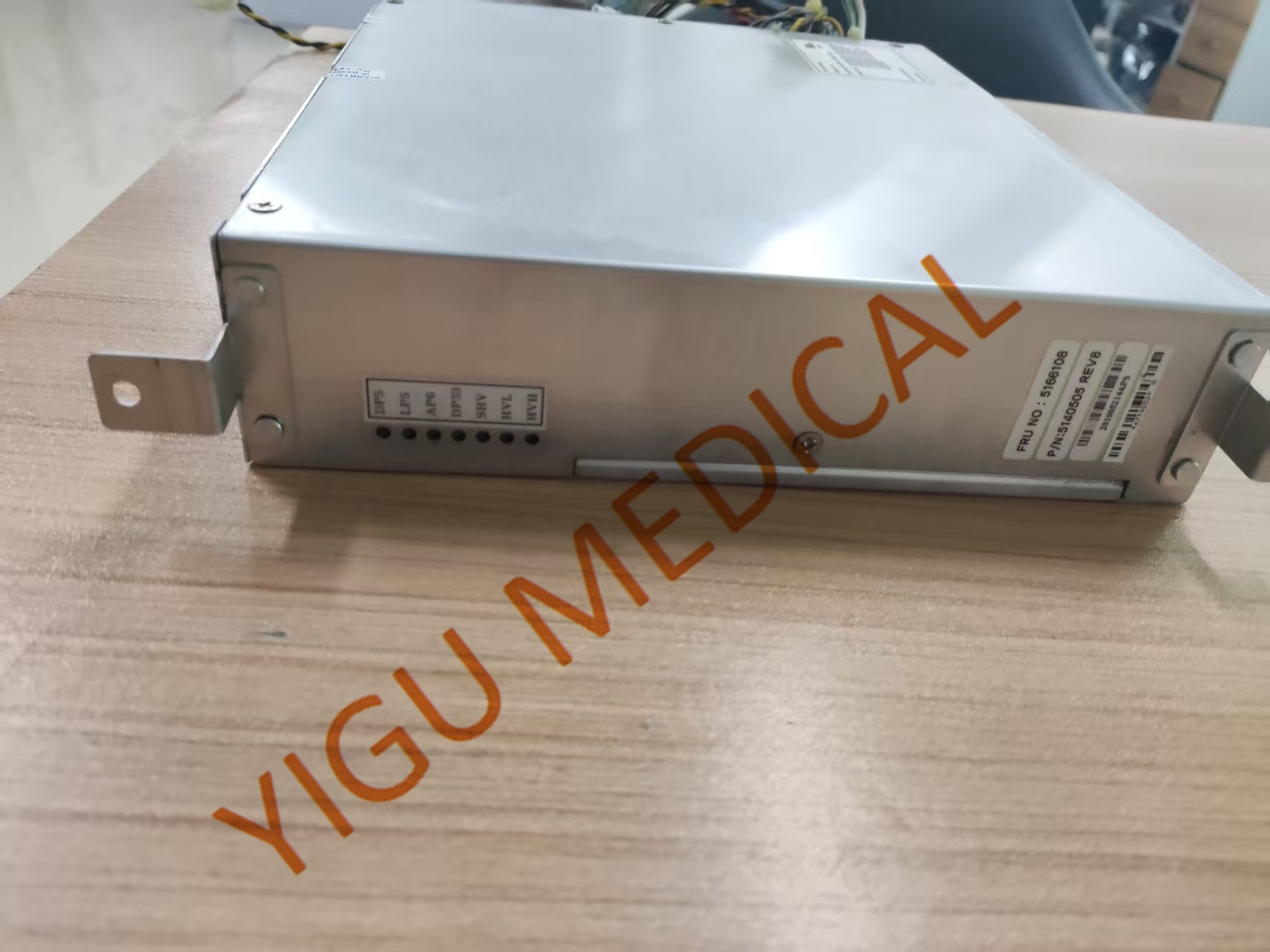

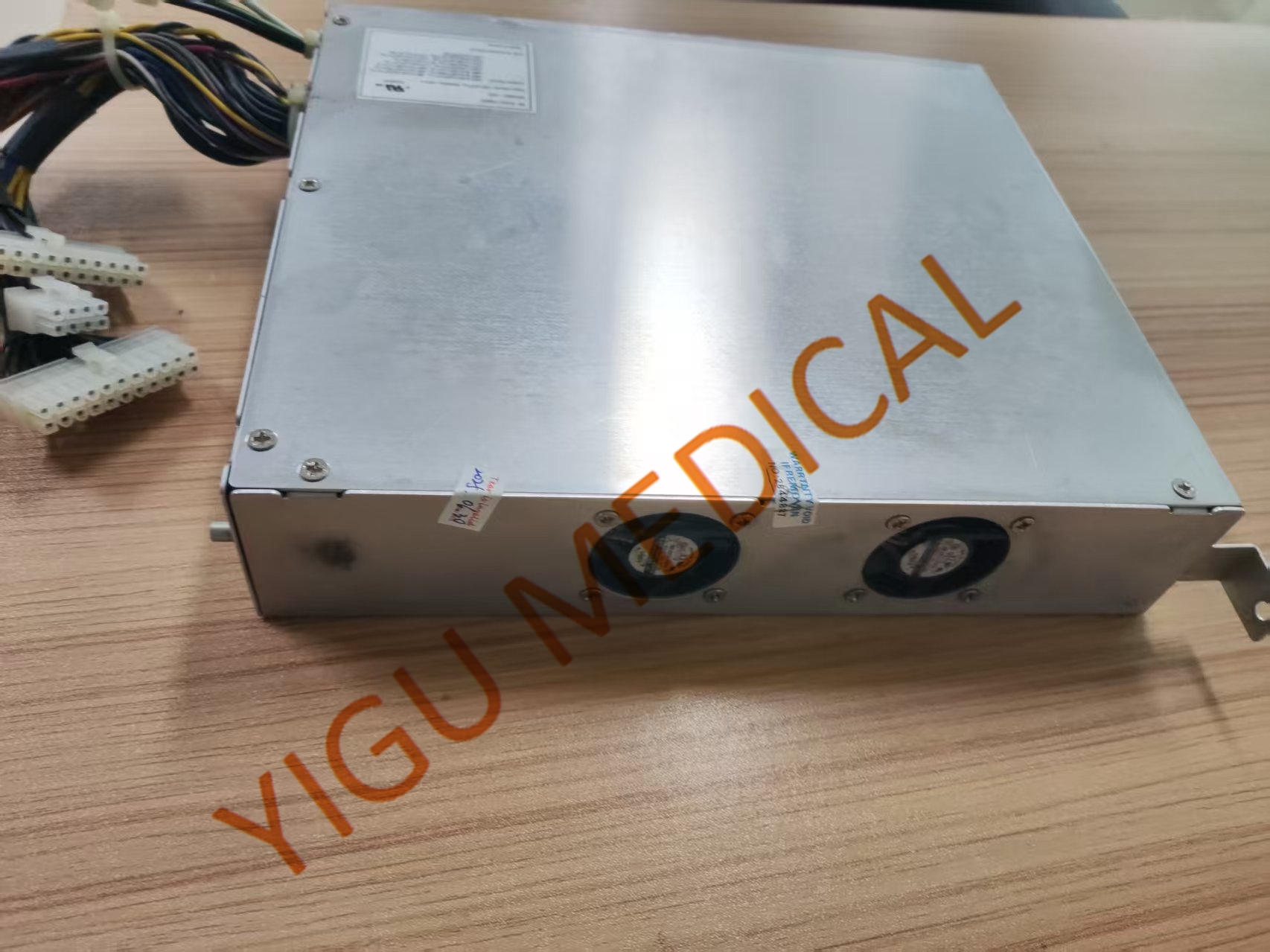

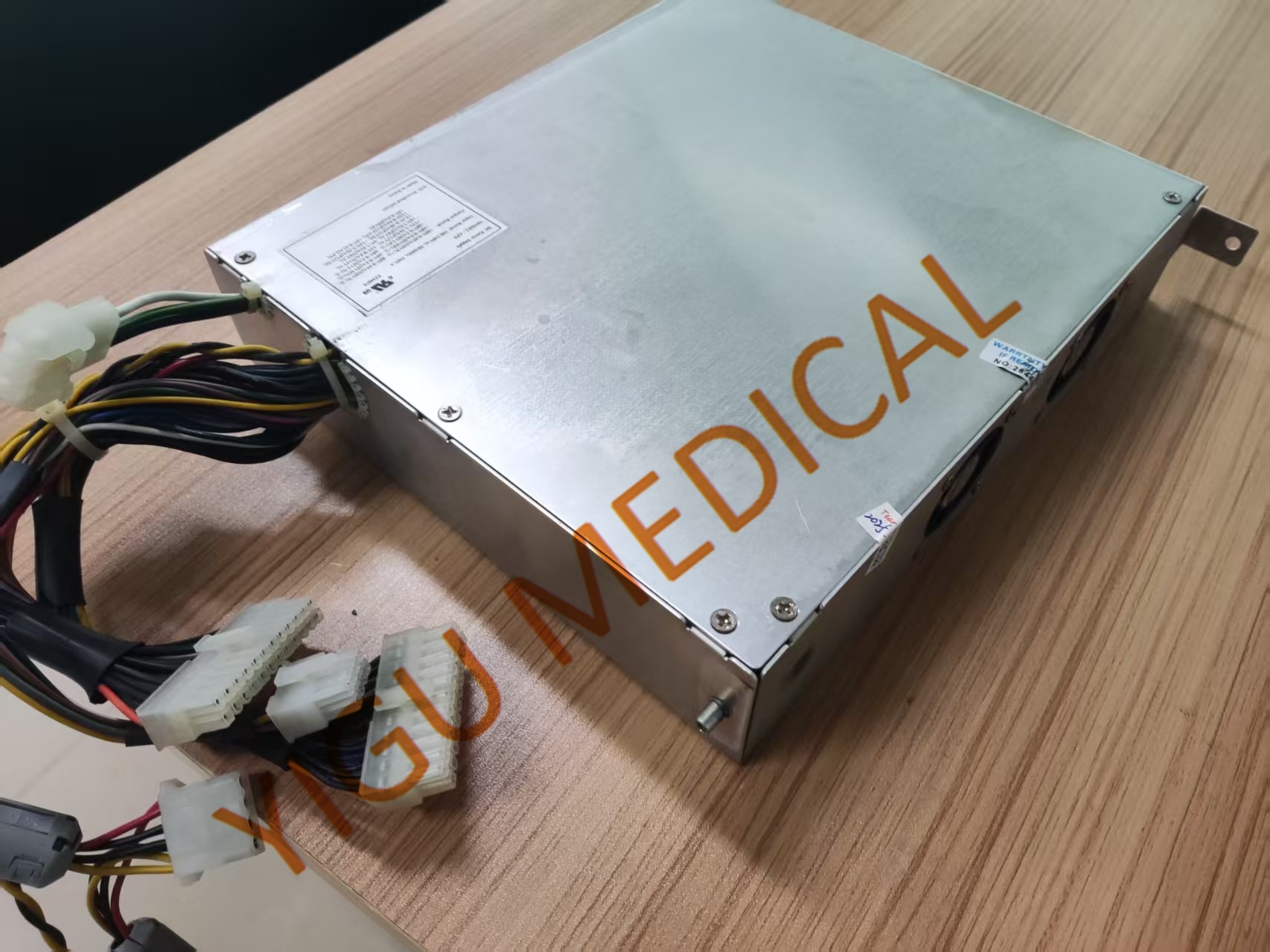

GE Ultrasonic LOGIQ P5 Power Supply Module Ultrasonic Power Supply PN 5140505REV8

Product Description

GE Ultrasonic LOGIQ P5 power supply module Ultrasonic power supply PN 5140505REV8

The **GE LOGIQ P5 Power Supply Module** is a critical component of the **LOGIQ P5 ultrasound system**, ensuring stable and reliable power delivery for continuous operation during diagnostic imaging. Designed for GE Healthcare’s versatile **LOGIQ P5** ultrasound machine—used in radiology, cardiology, obstetrics, and point-of-care applications—this module plays a vital role in maintaining system performance and preventing disruptions during exams.

---

**Key Features of the LOGIQ P5 Power Supply Module**

1. **High-Efficiency Power Delivery**
- Provides consistent voltage and current to support the ultrasound system’s processing, display, and transducer functions.
- Optimized for low energy consumption while maintaining performance.

2. **Robust Protection Mechanisms**
- Built-in safeguards against **power surges, short circuits, and overheating** to protect sensitive internal electronics.
- Complies with medical-grade safety standards (e.g., **IEC 60601**).

3. **Thermal Management**
- Incorporates cooling systems (e.g., fans or heat sinks) to dissipate heat during prolonged use, ensuring longevity.

4. **Seamless Compatibility**
- Designed exclusively for the **LOGIQ P5** system, ensuring plug-and-play integration without compatibility issues.
- May support both **AC mains power** and optional battery backup (varies by configuration).

5. **Serviceability & Modular Design**
- Allows for quick replacement by certified technicians to minimize downtime in clinical settings.

---

**Applications & Importance**
- **Hospitals & Imaging Centers**: Ensures uninterrupted operation during critical diagnostic procedures.
- **Portable & Emergency Use**: Reliable performance in mobile or unstable power environments.
- **Preventive Maintenance**: Reduces system failures, lowering long-term operational costs.

---

#**Technical Specifications**
- **Input Voltage**: Typically **100–240V AC, 50/60Hz** (auto-sensing).
- **Output**: Stable DC power tailored to the LOGIQ P5’s requirements.
- **Certifications**: Meets **medical safety and EMC standards** (e.g., CE, FDA).

---

**Common Issues & Troubleshooting**
- **System Won’t Power On**: Check power supply connections, fuses, or replace the module if defective.
- **Intermittent Shutdowns**: May indicate overheating or power supply failure.
- **Warning Alarms**: Monitor for error codes related to power fluctuations.
