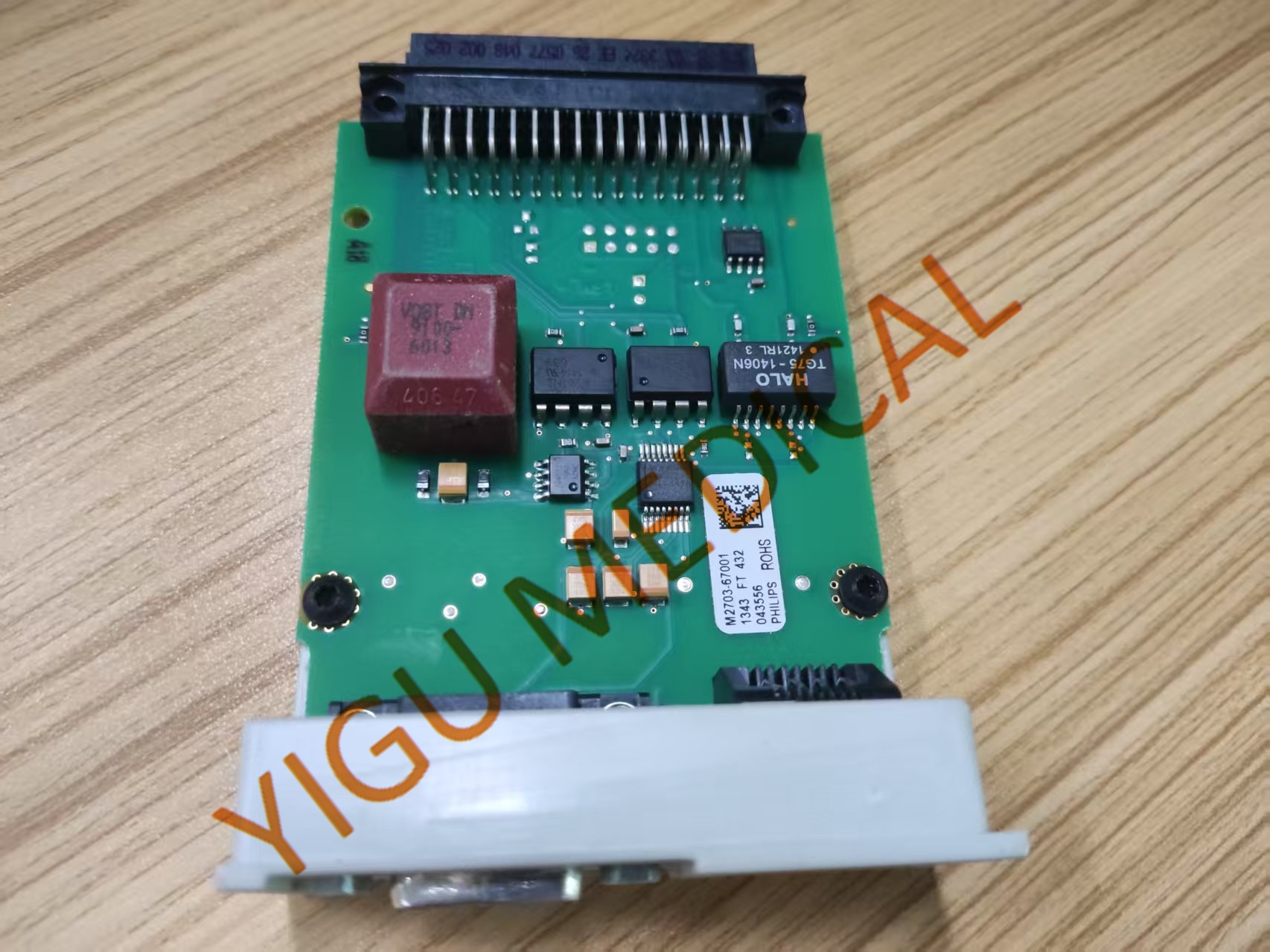

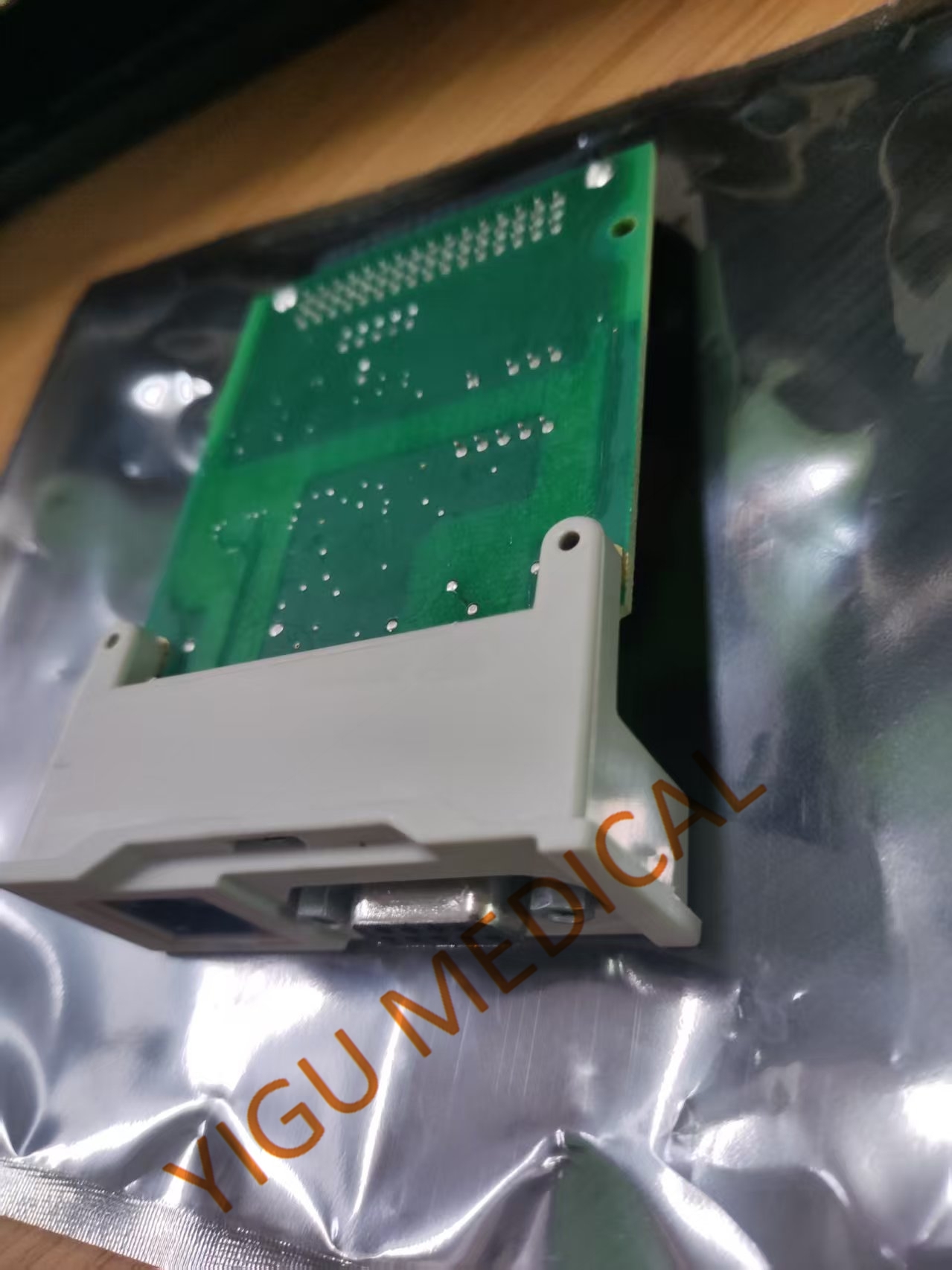

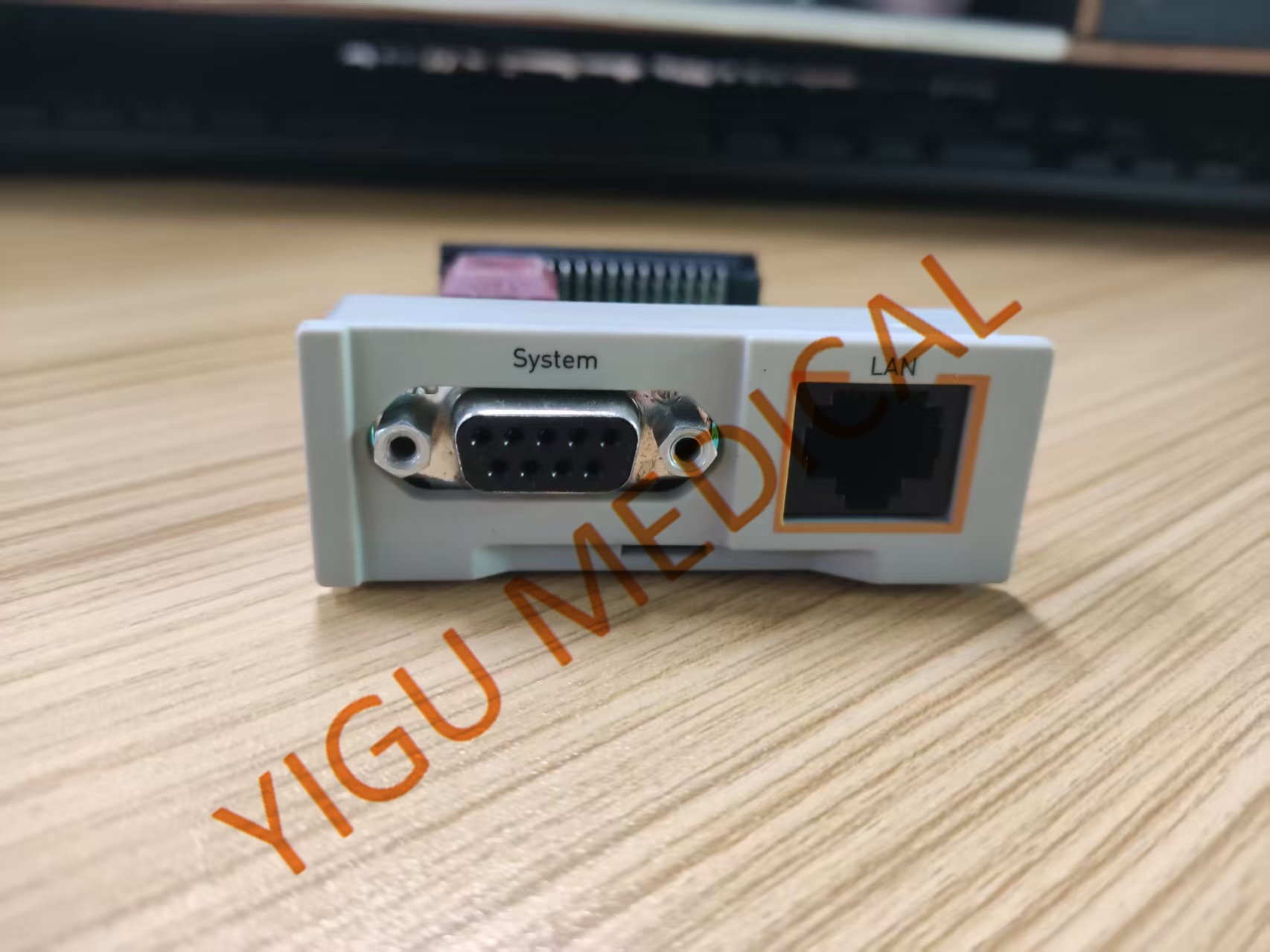

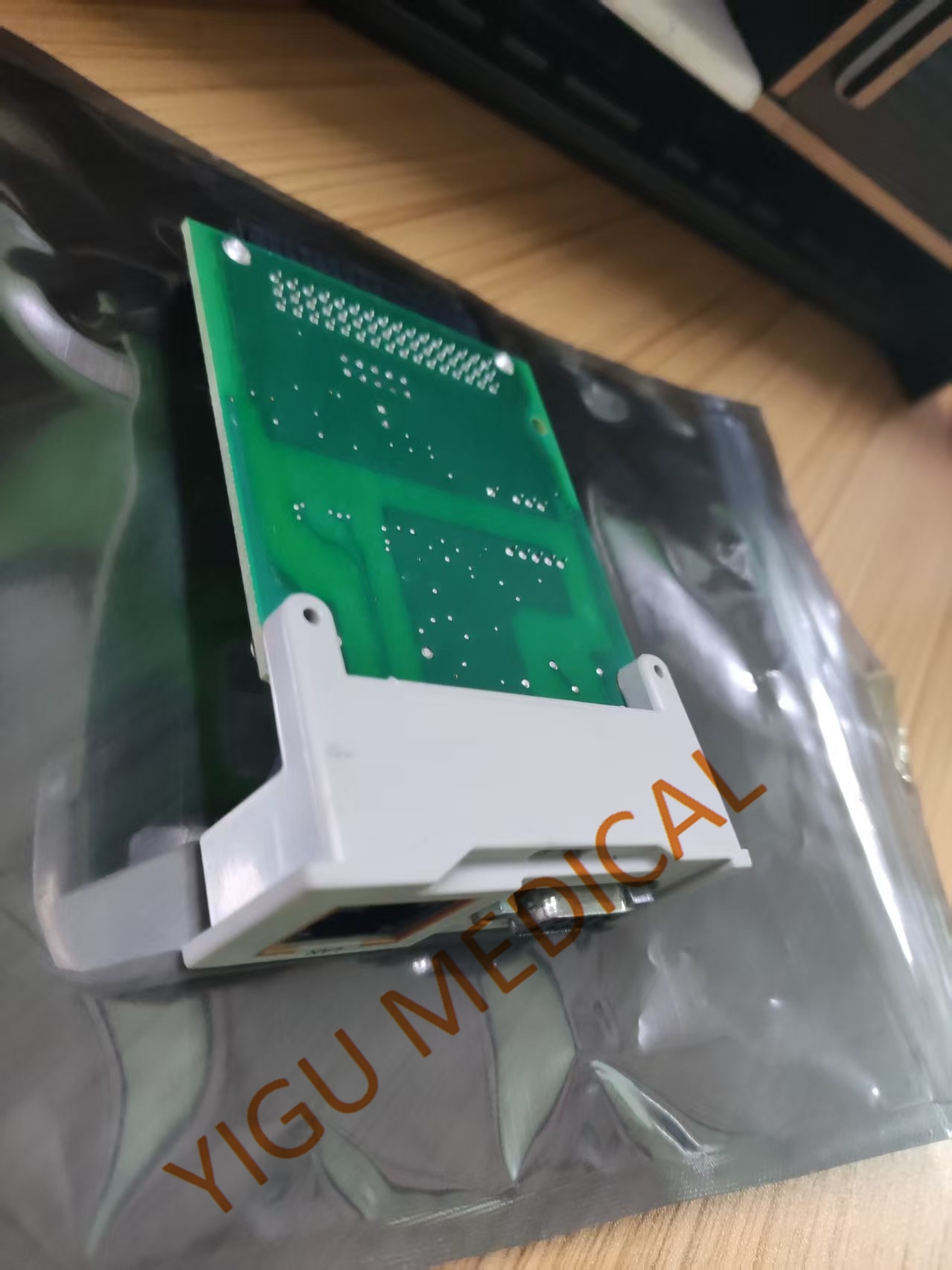

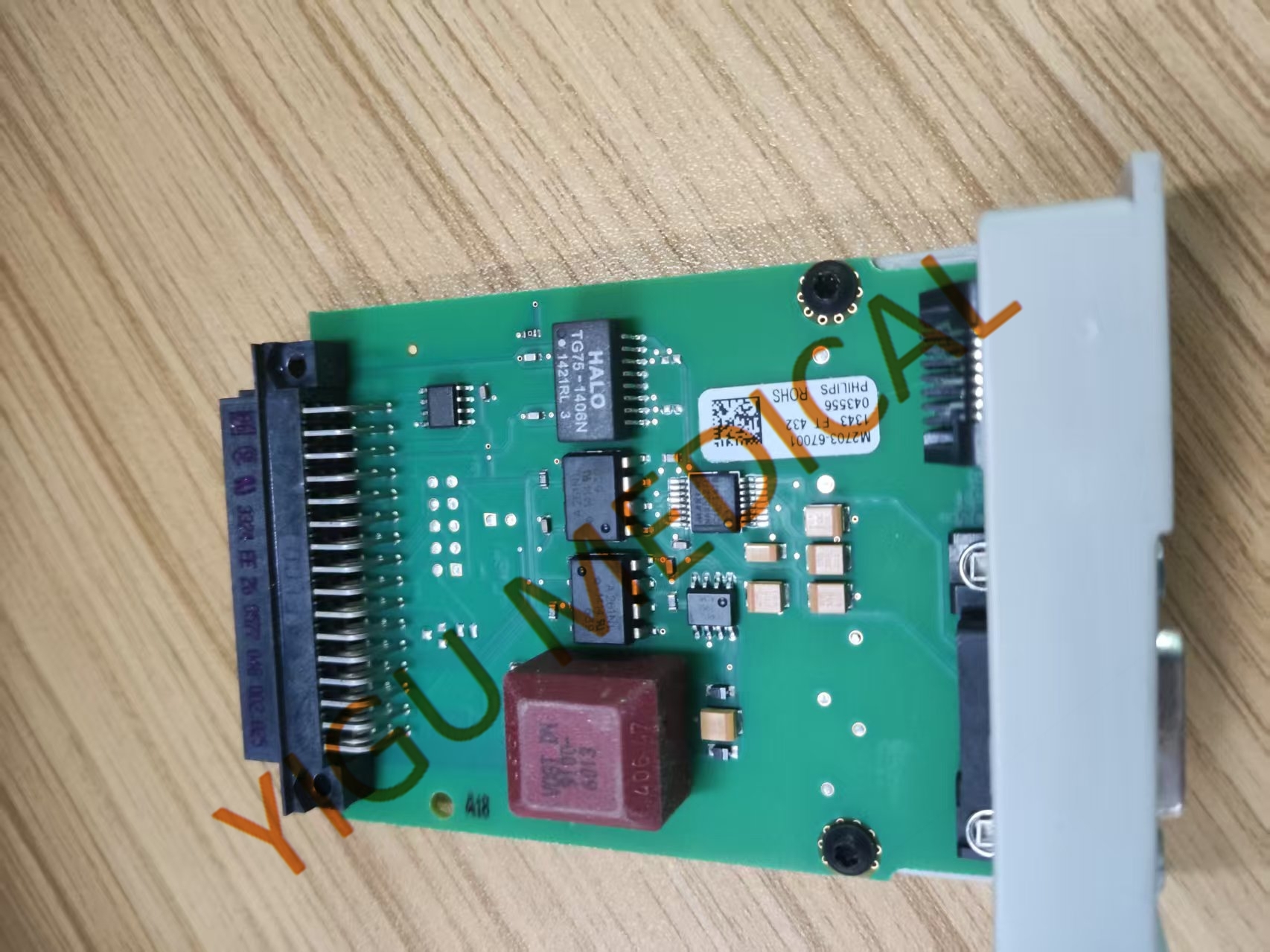

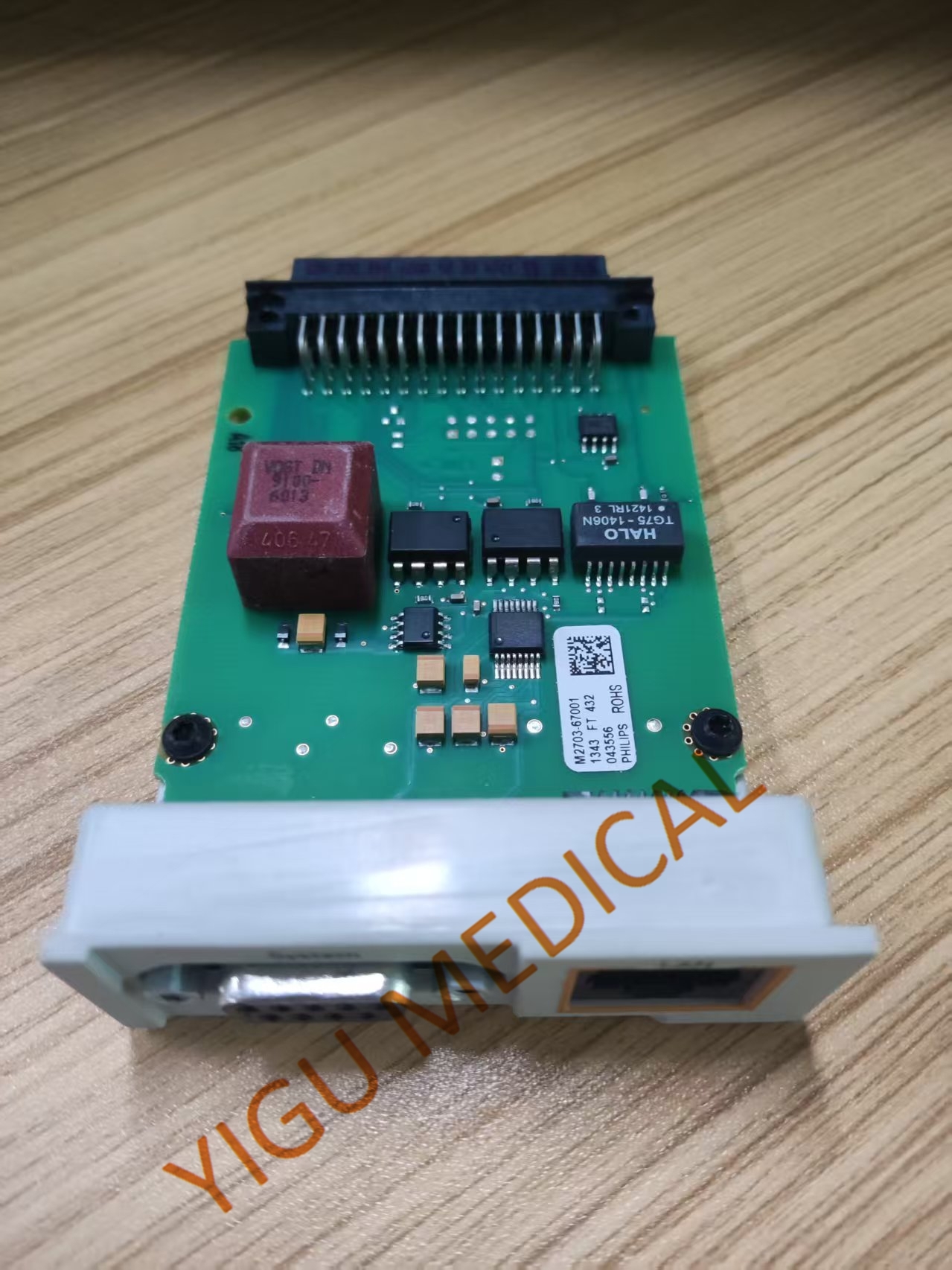

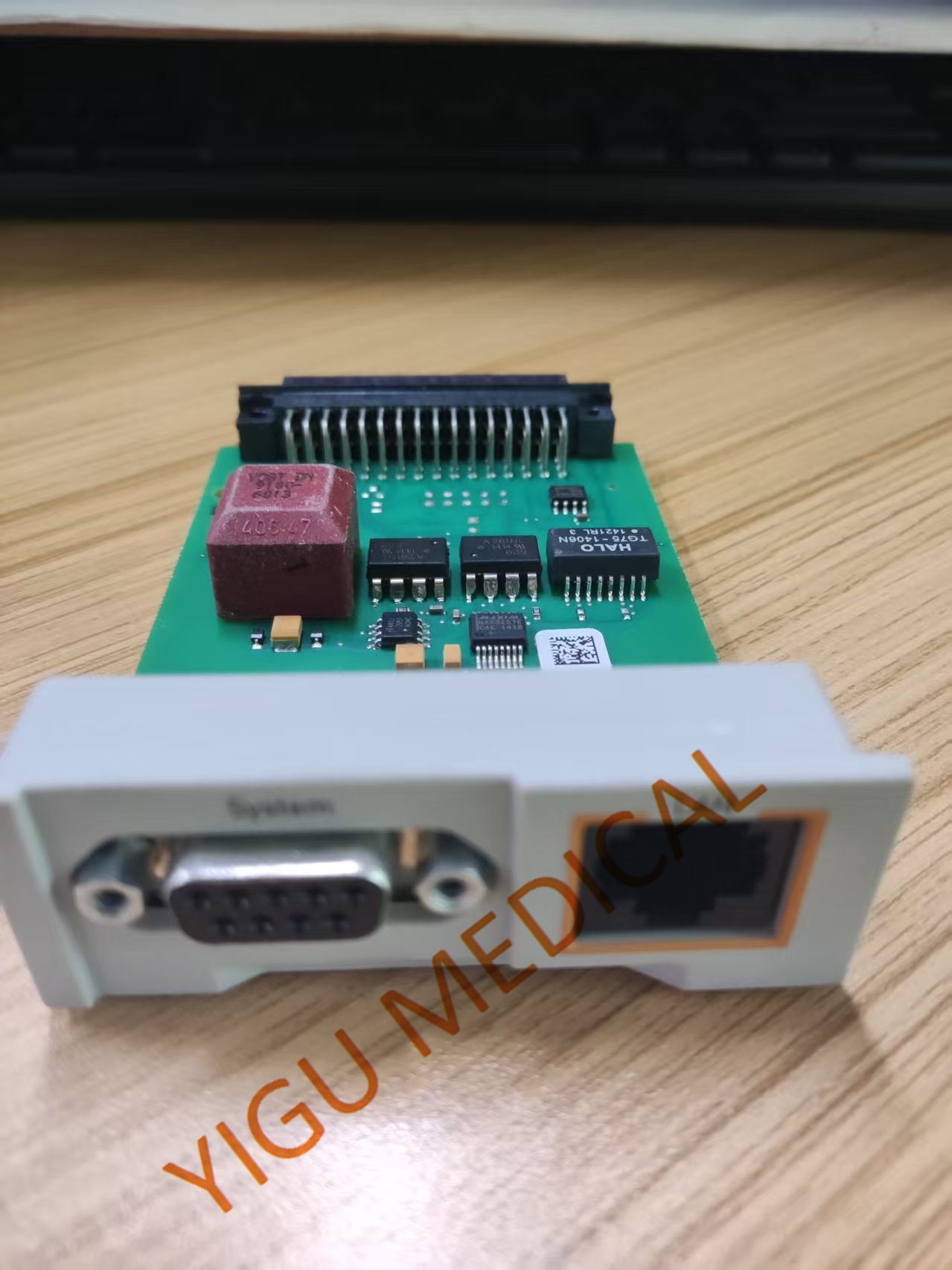

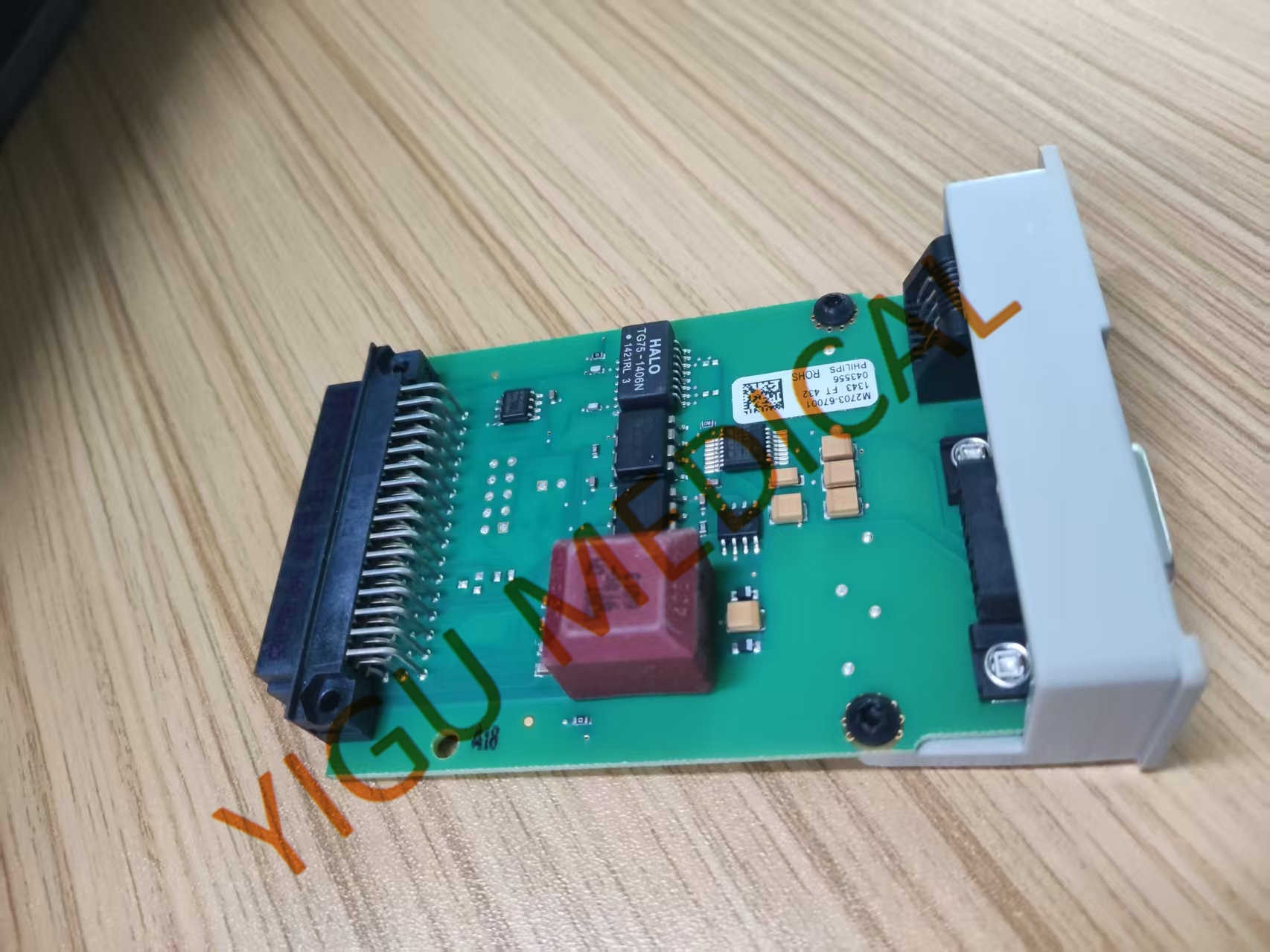

Fetal Monitor FM20 Interface Board M2703-67001 With 3 Months Wattanty

Product Details:
Brand Name: PH
Model Number: FM20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Normal package
Delivery Time: Within 1-2 work days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 30
  • Detail Information
  • Product Description

Detail Information

Part No: M2703-67001 Material: High-quality Materials
Inventory: Yes Product: Interface Board
Stocks: 30pcs Model No: FM20
Package: Normal Standard Package Equipment Type: Fetal Patient Monitor
Highlight:

M2703 67001 interface board

,

Fetal monitor interface board

,

M2703-67001 interface board

Product Description

Fetal monitor FM20 interface board M2703-67001 with 3 Months wattanty

FM20 Fetal Monitor – Interface Board (M2703-67001) Overview**

The **M2703-67001** is an **interface board** designed for the **FM20 Fetal Monitor**, a widely used device in obstetrics for monitoring fetal heart rate (FHR) and maternal uterine activity during pregnancy and labor.

This critical component facilitates communication between the monitor’s **sensors, display, printer, and external systems**, ensuring accurate data acquisition and processing.

---

**Key Features & Functions**

1. **Central Control & Data Processing**
- Acts as the **primary circuit board**, managing signal inputs from:
- **Tocodynamometer (TOCO)** (uterine contractions)
- **Ultrasound transducer** (fetal heart rate)
- **External Doppler/Maternal ECG** (if applicable)
- Processes and transmits data to the **display, printer, and network** (if connected).

2. **Connectivity & Expansion**
- Interfaces with:
- **Front-panel controls** (buttons, touchscreen if applicable)
- **Printer module** (for strip chart recording)
- **Network/EMR systems** (via optional connectivity modules)

3. **Signal Integrity & Noise Reduction**
- Ensures **clean signal transmission** to prevent artifacts in fetal heart rate tracings.
- Includes **filtering circuits** to minimize interference.

4. **Firmware & Software Integration**
- May store or interact with the monitor’s **firmware**, affecting system functionality and updates.

5. **Durability & Compliance**
- Built to meet **medical-grade standards** (e.g., IEC 60601 for safety and EMC).
- Designed for **long-term reliability** in clinical environments.

---

**Common Applications**
- **Labor & Delivery Units**: Continuous fetal monitoring during childbirth.
- **Antepartum Testing**: Non-stress tests (NSTs) and contraction stress tests.
- **Outpatient Clinics**: Routine prenatal monitoring.

---

**Troubleshooting & Failure Signs**
If the **M2703-67001 interface board malfunctions**, the FM20 may exhibit:
- **Blank or frozen display**
- **Intermittent signal loss** (e.g., FHR or TOCO dropouts)
- **Printer/connectivity failures**
- **Error codes** (e.g., "System Error" or "Board Failure")



Fetal Monitor FM20 Interface Board M2703-67001 With 3 Months Wattanty 0Fetal Monitor FM20 Interface Board M2703-67001 With 3 Months Wattanty 1
