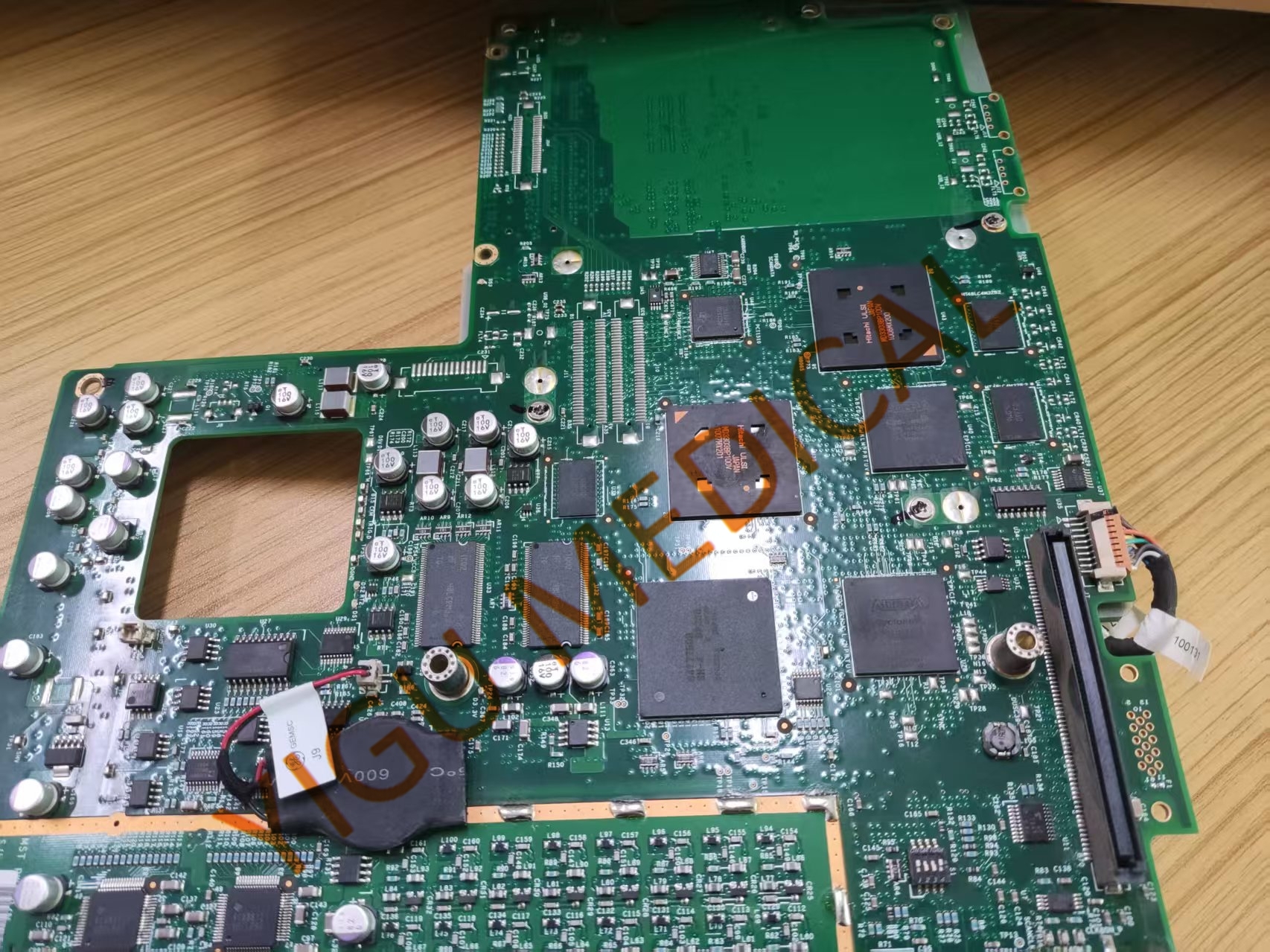

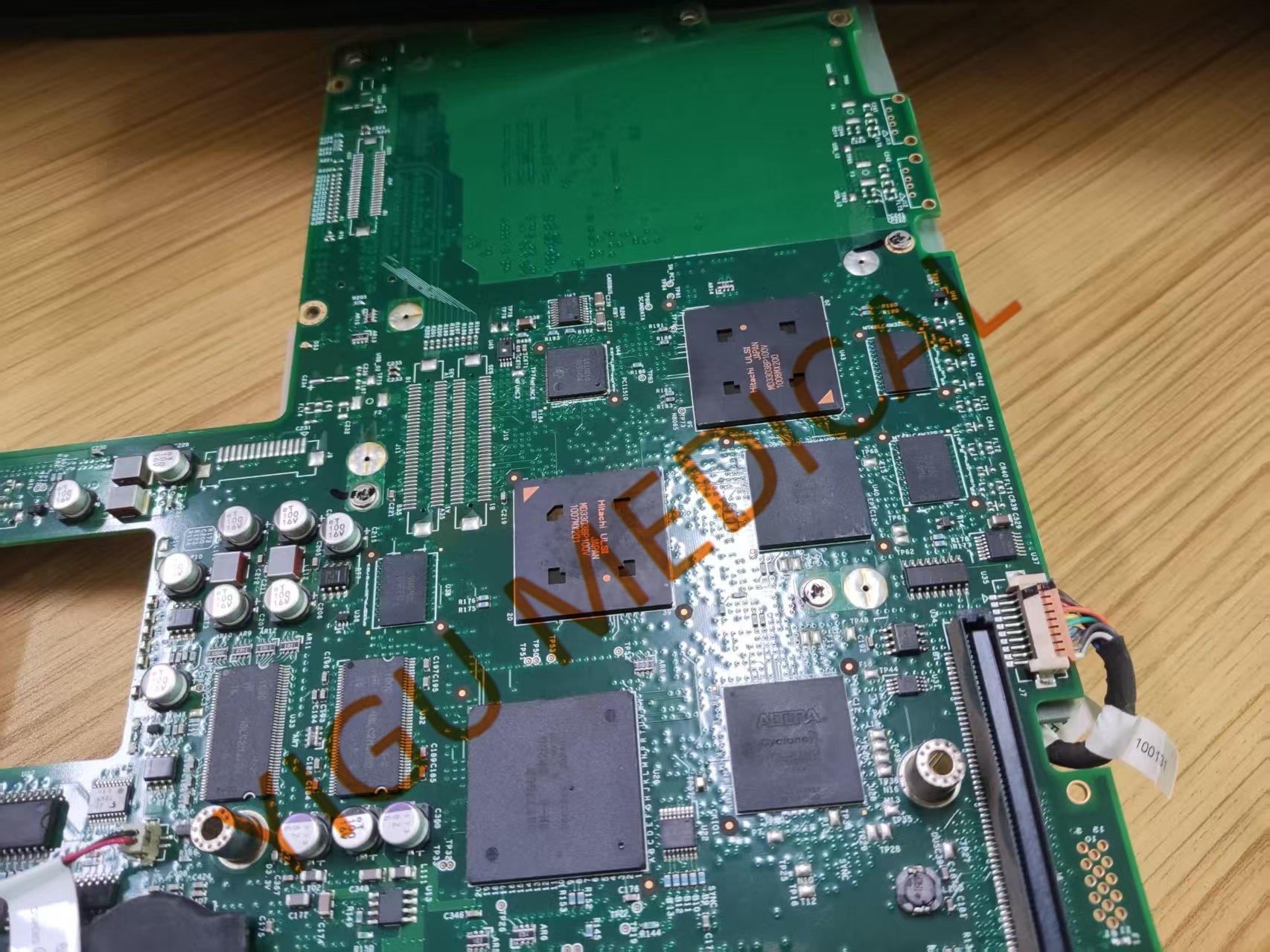

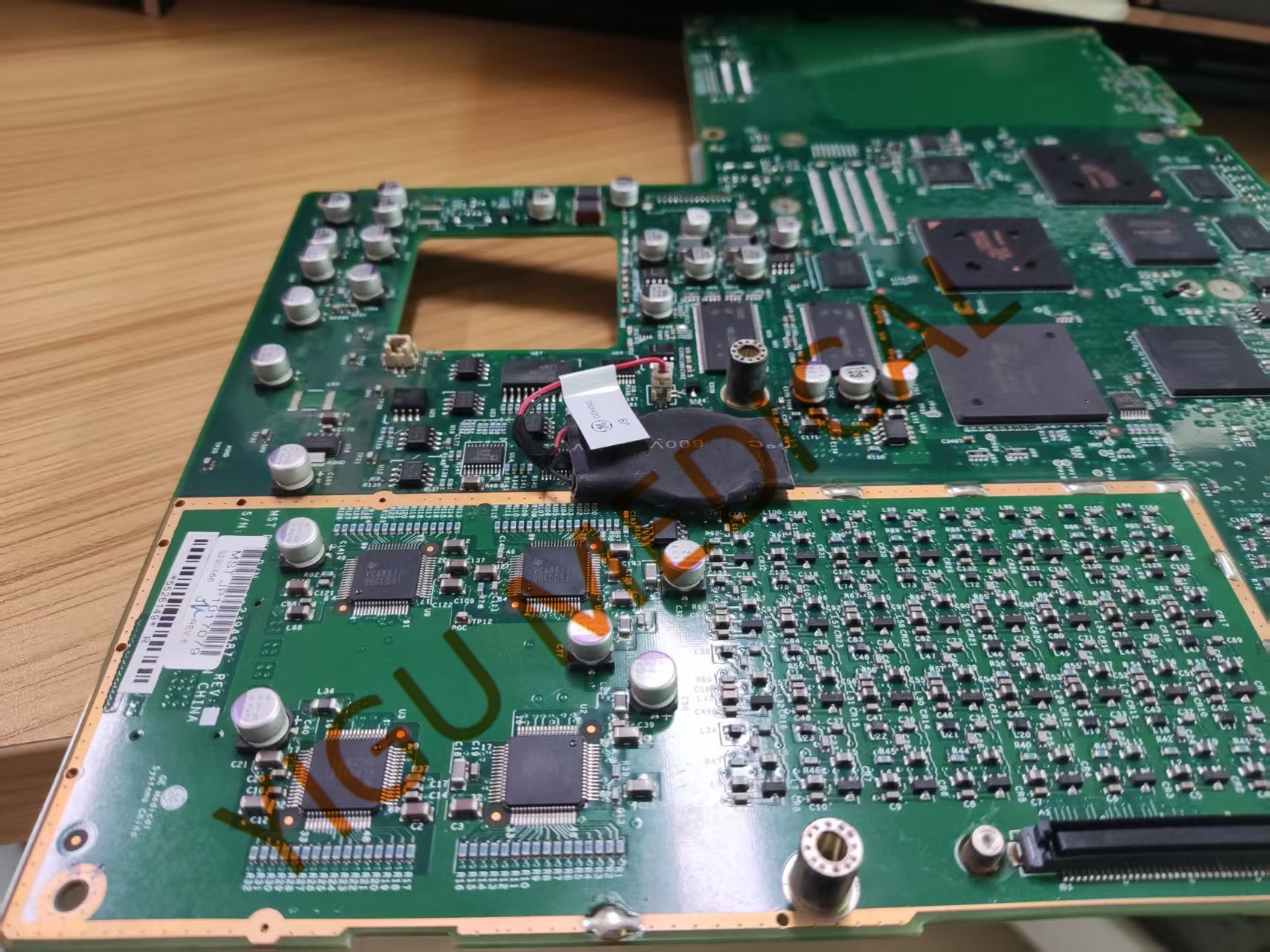

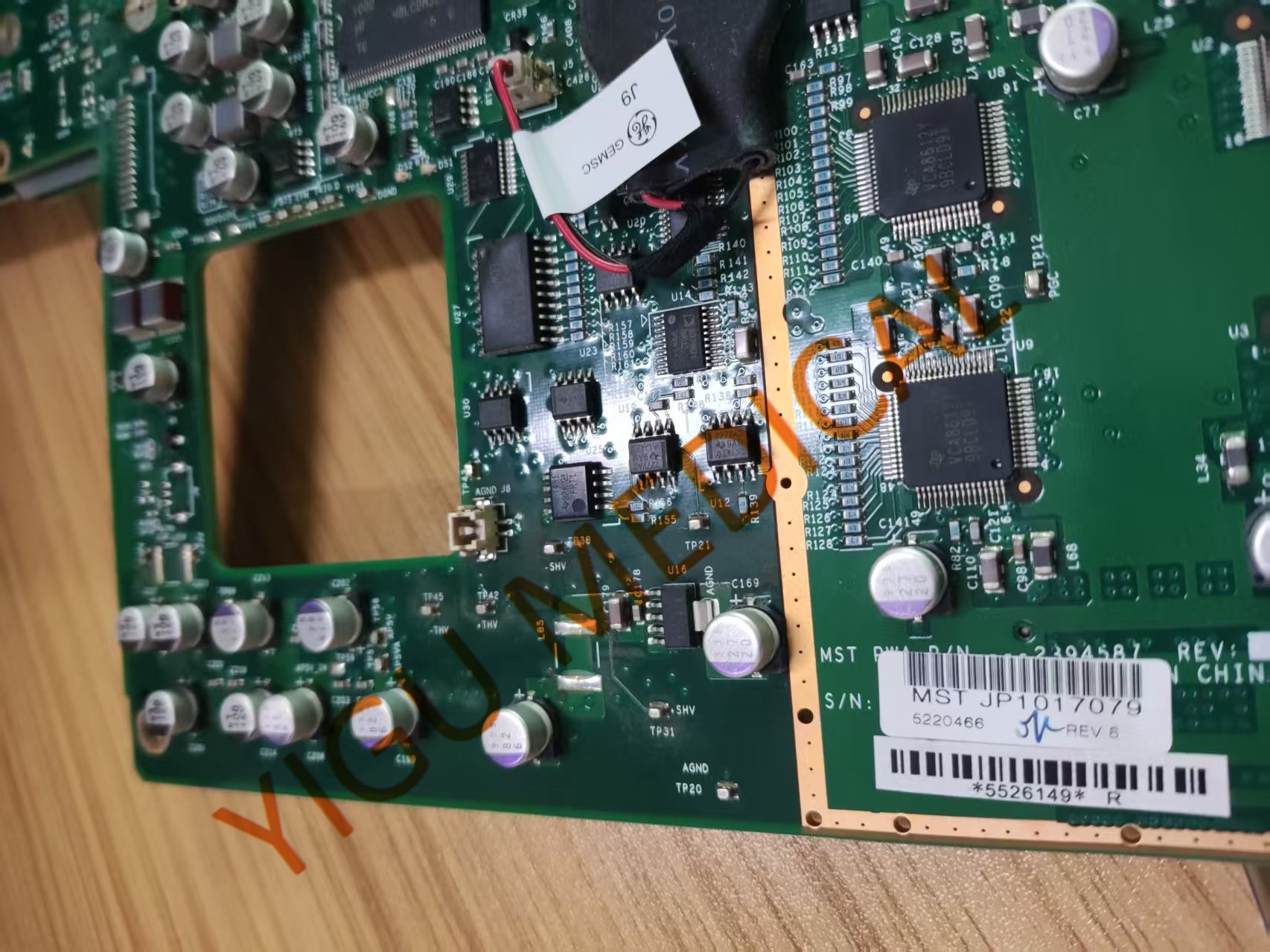

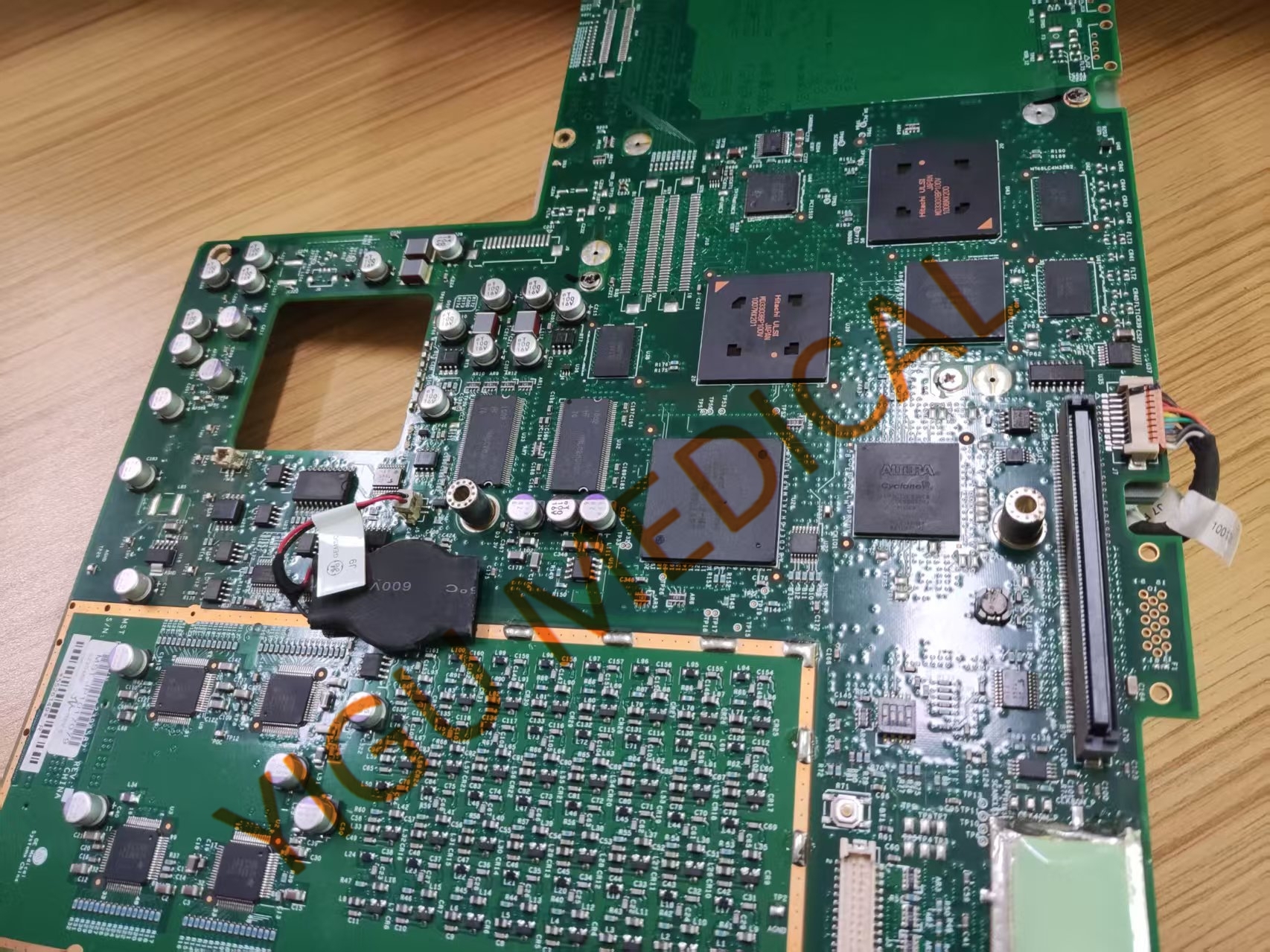

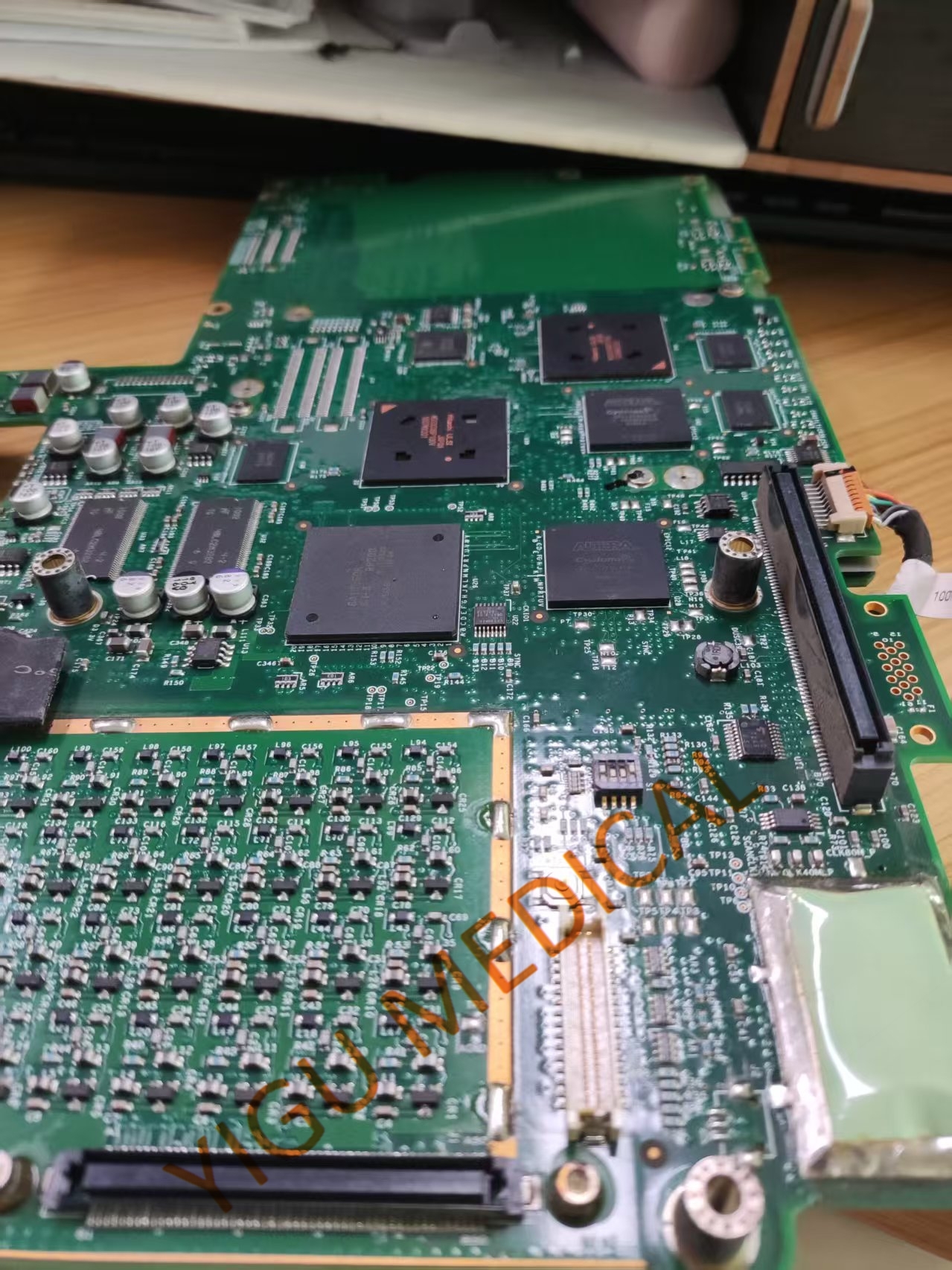

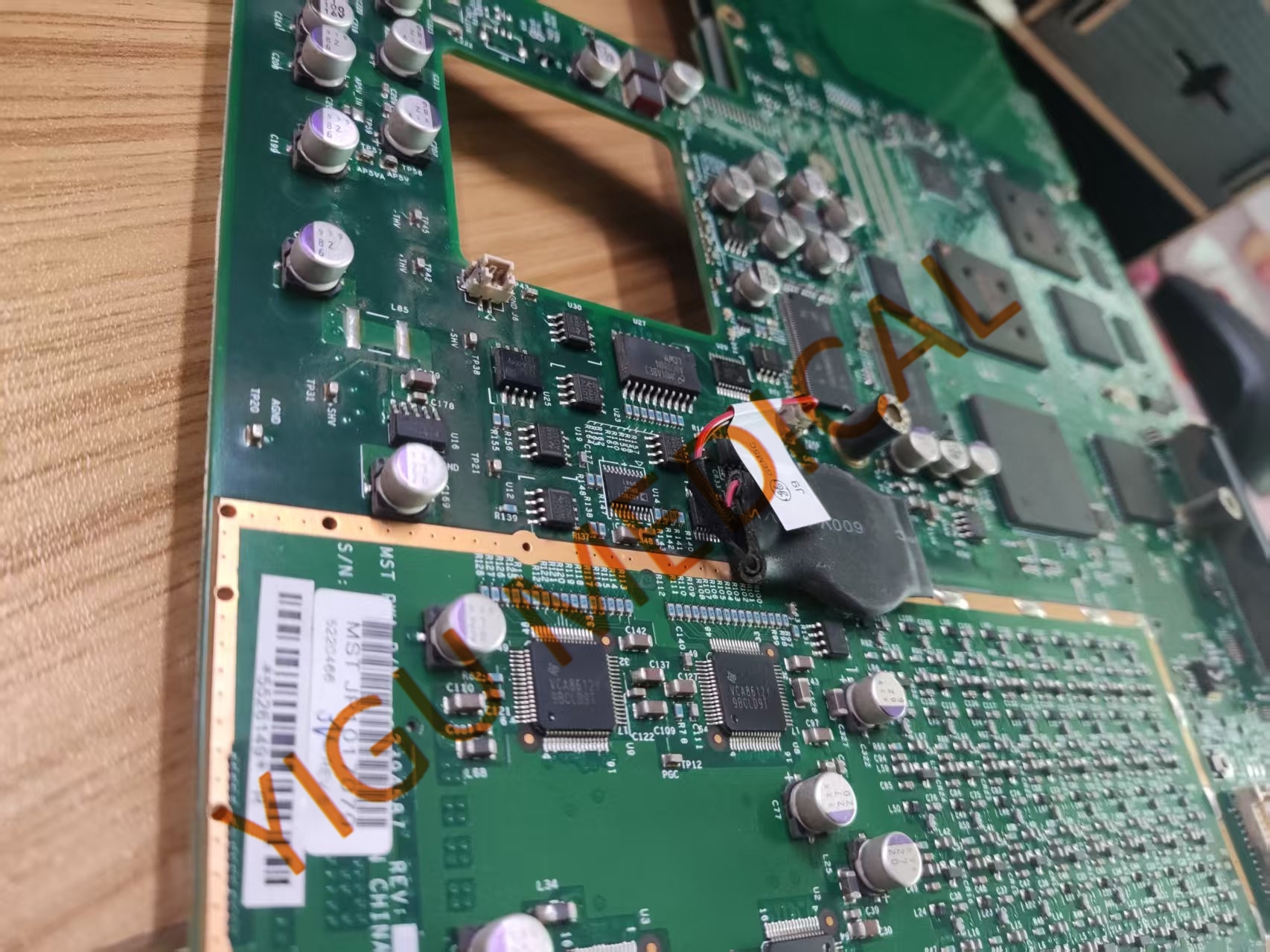

Ultrasound GE Logiq C2 Motherboard PN 5220411-2 REV3 Ultrasound Manboard

Product Description

Ultrasound GE Logiq C2 Motherboard PN 5220411-2 REV3 Ultrasound Manboard

GE LOGIQ C2 Ultrasound System – Motherboard Overview**

The **motherboard** (mainboard or system board) in the **GE LOGIQ C2 ultrasound machine** is the **central processing and control hub**, responsible for managing data flow between the system’s key components, including the **transducer, display, user interface, and external connections**.

The LOGIQ C2 is a **compact, portable ultrasound system** used in general imaging, vascular studies, and point-of-care diagnostics. Its motherboard ensures stable performance, signal processing, and system communication.

---

**Key Features & Functions**

1. **Central Processing & Data Handling**
- Acts as the **primary circuit board**, integrating:
- **CPU (Central Processing Unit)** – Processes ultrasound image data.
- **GPU (Graphics Processing Unit)** – Renders real-time images on the display.
- **Memory (RAM & Storage)** – Supports system operation and image storage.

2. **Transducer Interface**
- Manages signal input from **GE-compatible transducers** (e.g., convex, linear, phased array).
- Ensures **low-noise signal transmission** for high-quality imaging.

3. **Display & User Interface Control**
- Connects to the **touchscreen/control panel** for user interaction.
- Outputs video signals to the **integrated LCD display**.

4. **Connectivity & Expansion**
- Includes ports for:
- **USB, Ethernet, VGA/HDMI (if applicable)**
- **DICOM compatibility** (for PACS integration)
- **Printer & external storage devices**

5. **Power Regulation & Protection**
- Works with the **power supply module** to distribute stable voltage.

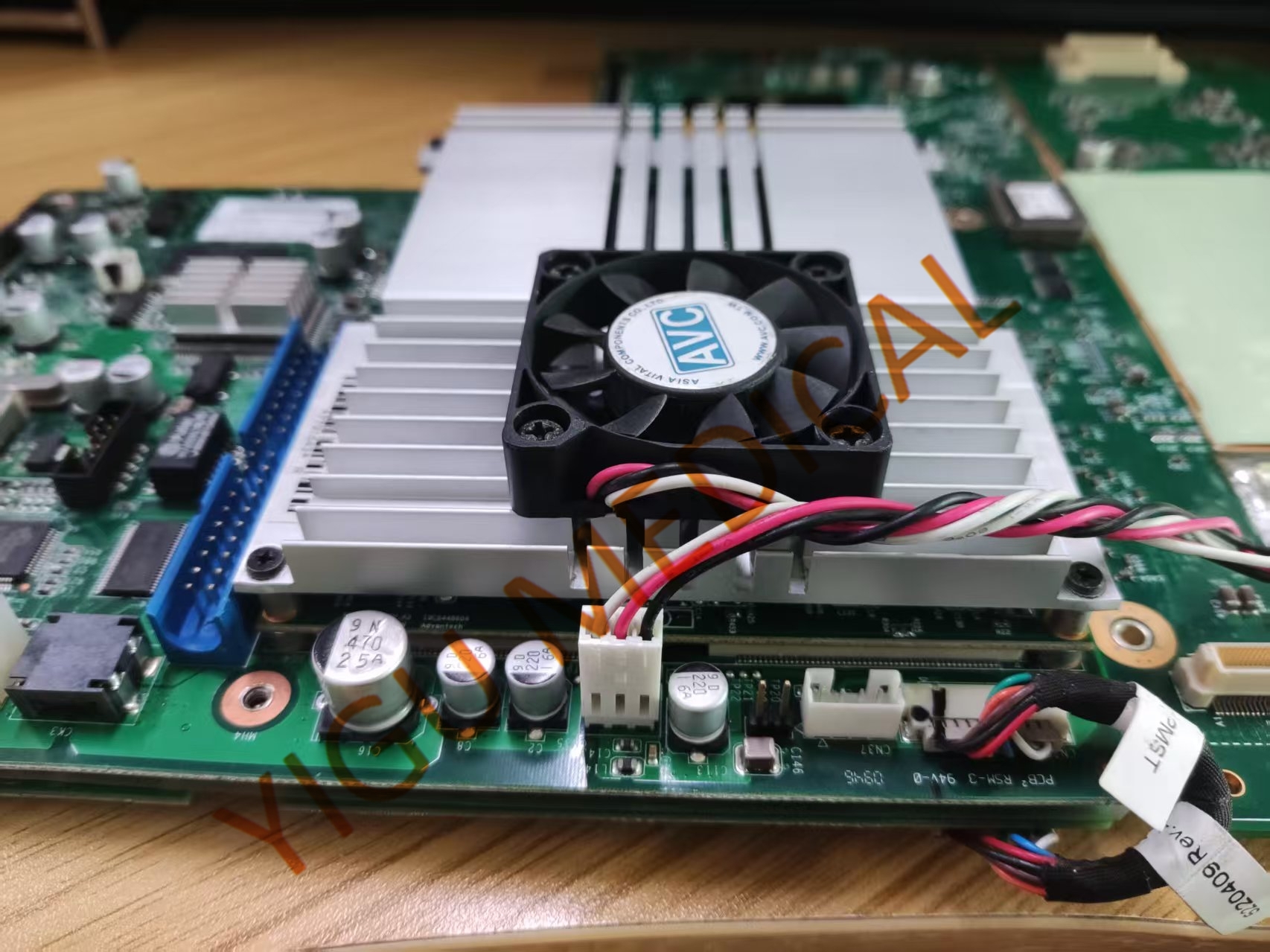

- Includes **surge protection & thermal management** (heat sinks/fans).

6. **Firmware & Software Integration**
- Stores the **system BIOS & ultrasound software**.
- May require **firmware updates** for performance optimization.

---

**Common Symptoms of Motherboard Failure**
If the LOGIQ C2 motherboard malfunctions, the system may exhibit:
- **Failure to power on** (no display or backlight)
- **Freezing/crashing during operation**
- **Image artifacts or signal loss**
- **Touchscreen/unresponsive controls**
- **Error codes** (e.g., "System Error," "Boot Failure")

---

**Troubleshooting & Maintenance**
1. **Basic Checks**
- Ensure **proper power supply** (check cables & voltage).
- Verify **all connections** (transducer, display, peripherals).
- Attempt a **hard reset** (if applicable).

**Conclusion**
The **LOGIQ C2 motherboard** is critical for system functionality, affecting imaging performance, user interface, and connectivity. If failure is suspected, **professional service is required** to avoid further damage.
