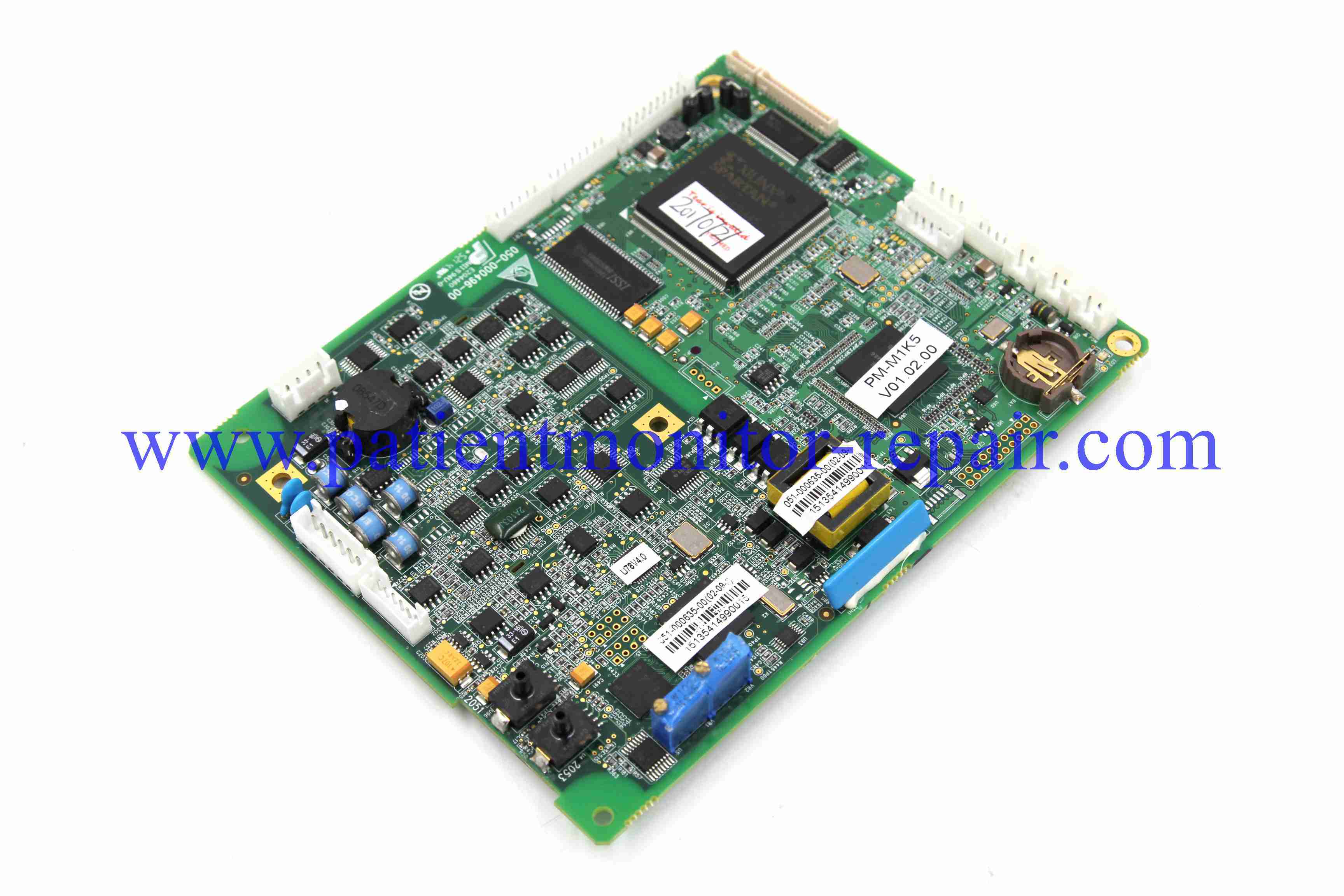

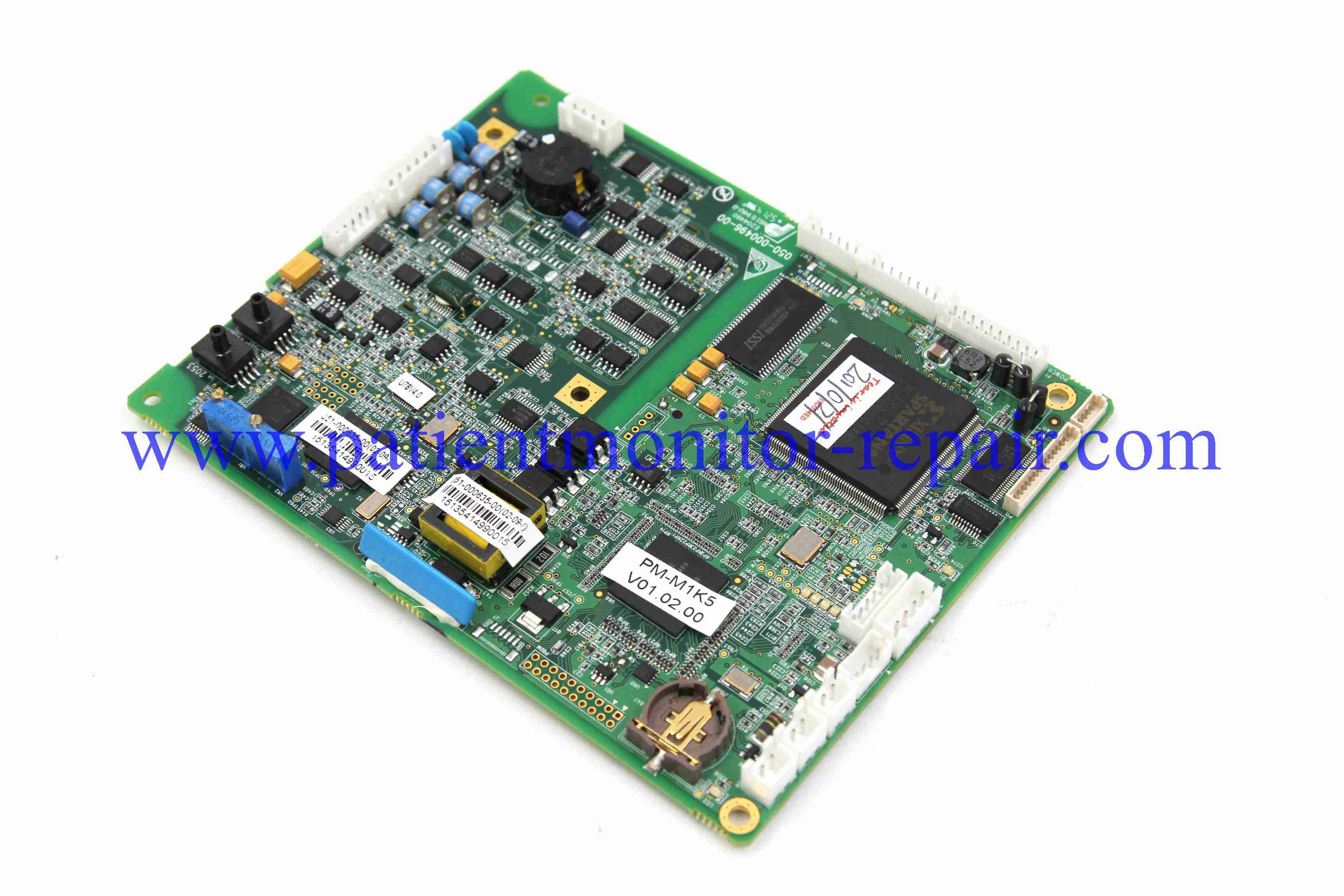

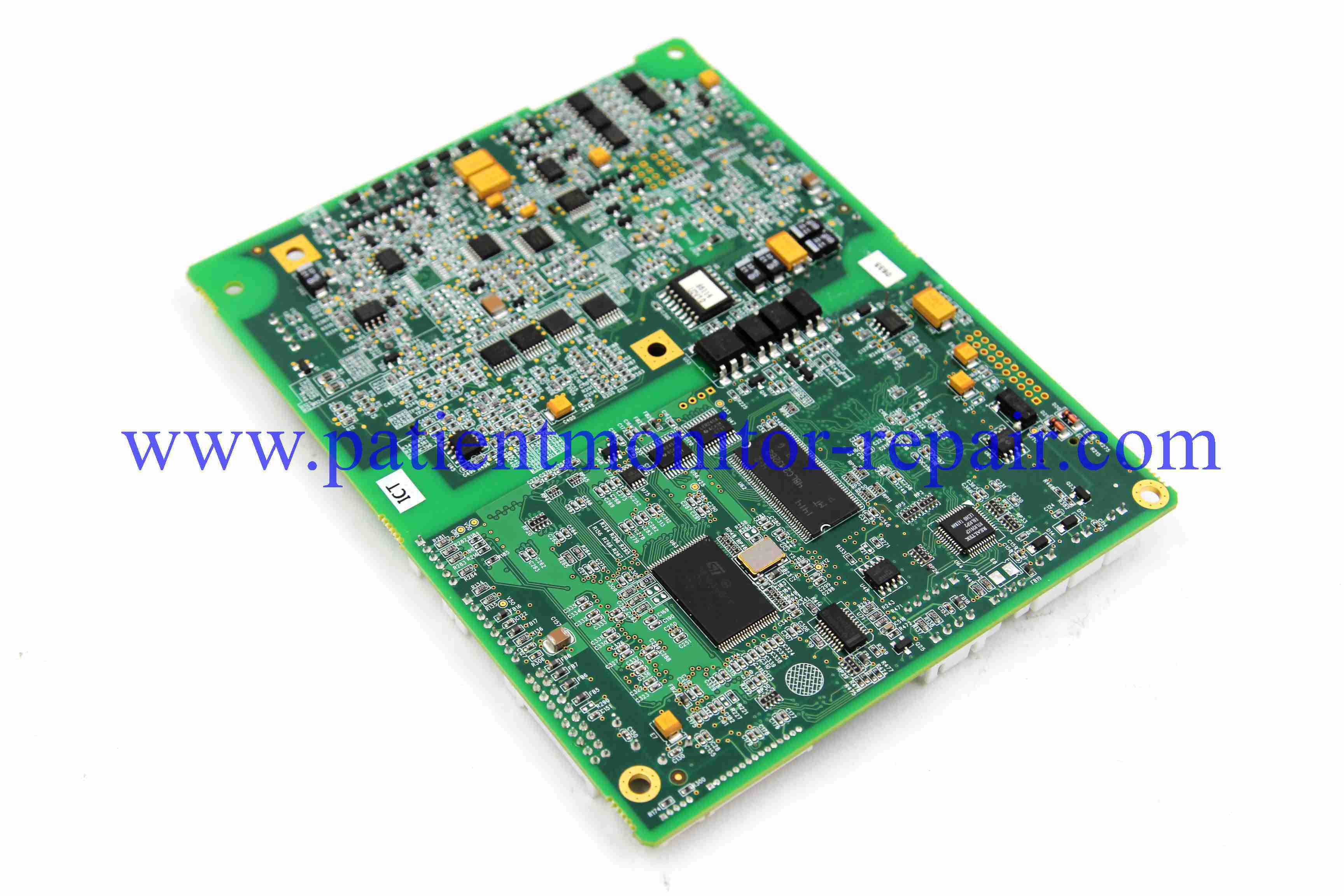

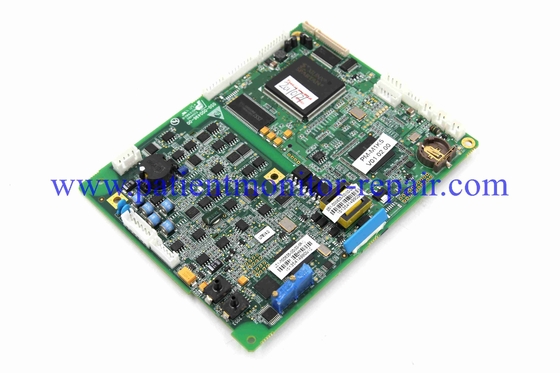

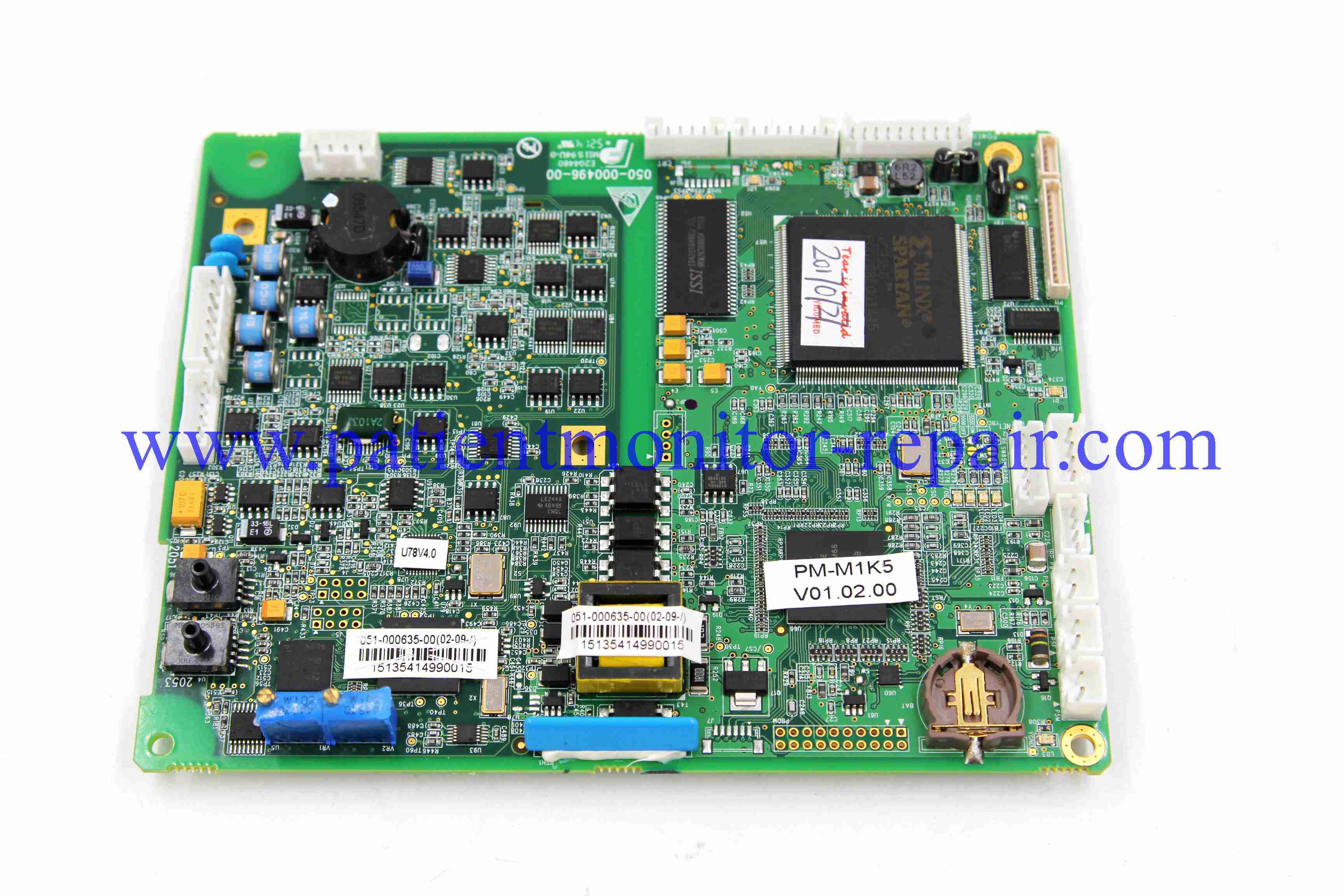

Mindray MEC-1200 Patient Monitor Mainboard PN 051-000635-00

Product Description

Mindray MEC-1200 Mainboard – Key Features

• Device Compatibility: Specifically designed for the Mindray MEC-1200 patient monitor system.
• Central Processing Unit: Acts as the core controller for all monitoring functions including ECG, SpO₂, NIBP, RESP, TEMP, and more.
• High Integration:
  • Combines CPU, RAM, ROM, and essential I/O interfaces on a single board.
  • Supports various physiological parameter modules via dedicated connectors.
• Real-Time Data Processing:
  • Processes multi-channel vital sign data with high accuracy and low latency.
  • Ensures continuous real-time monitoring and alarm functions.
• Display Interface: Directly interfaces with the device's LCD screen and touch panel (if applicable).
• Communication Ports:
  • Supports USB, Ethernet (LAN), serial ports, and internal module buses.
  • Enables data sharing with external systems or hospital networks.
• Firmware Support:
  • Compatible with Mindray’s proprietary monitoring software.
  • Supports firmware upgrades via USB or internal service ports.
• Modular Expandability:
  • Allows connection of external or internal modular boards for additional functions (e.g., CO₂, IBP).
• Diagnostic LEDs: On-board status LEDs assist in troubleshooting hardware-level issues.
• Medical-Grade Reliability:
  • Designed and manufactured under strict medical device standards (e.g., IEC 60601-1).
  • Long operational lifespan and high resistance to EMI/RFI.
• Serviceability:
  • Easily replaceable as a spare part in field repairs.
  • Clearly labeled connectors and test points to assist technical diagnostics.

Mindray MEC-1200 Mainboard – Precautions

• Electrostatic Discharge (ESD) Protection

  • Always wear an anti-static wrist strap and work on an ESD-safe surface when handling the mainboard.
  • Avoid touching electronic components or circuit traces directly with bare hands.

• Power Off Before Service

  • Ensure the patient monitor is completely powered off and unplugged before removing, installing, or servicing the mainboard.

• Use Original Parts Only

  • Only use genuine Mindray replacement parts to maintain compatibility, safety, and performance.

• Avoid Liquid Contact

  • Keep the mainboard away from liquids, moisture, and condensation to prevent short circuits or corrosion.

• Handle with Care

  • Do not bend, drop, or apply excessive force to the board.
  • Avoid scratching or damaging connectors, traces, and component leads.

• Proper Connector Handling

  • Insert and remove all connectors gently to avoid pin damage or PCB trace lifting.
  • Check for secure and correct alignment of all cables and module connectors.

• Thermal Management

  • Ensure that the monitor's cooling system (fan, vents, or heat sinks) is functional to prevent overheating.

• Firmware Compatibility

  • When replacing the mainboard, ensure the firmware version is compatible with the rest of the system.
  • Use only authorized Mindray tools to perform firmware upgrades or configuration.

• Avoid Electrical Shorts

  • After installation, inspect for loose screws, tools, or conductive debris that could cause shorts.

• Storage Conditions

  • Store the board in anti-static packaging in a dry, temperature-controlled environment.
  • Avoid exposure to extreme temperatures, humidity, or magnetic fields.

• Professional Servicing Only

  • Mainboard replacement or repair should be performed by a qualified biomedical technician or authorized service personnel.

Equipment Repair

Advanced: Quick 1 to 2 days turnaround

Repair parts: Mian board, parameter module, power supply etc.,

Common fault: SPO2, ECG, NIBP, device fault, equipment could not be turned on, blank screen, equipment could not be used.
