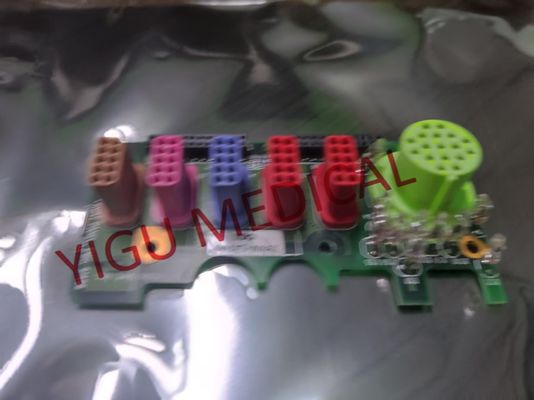

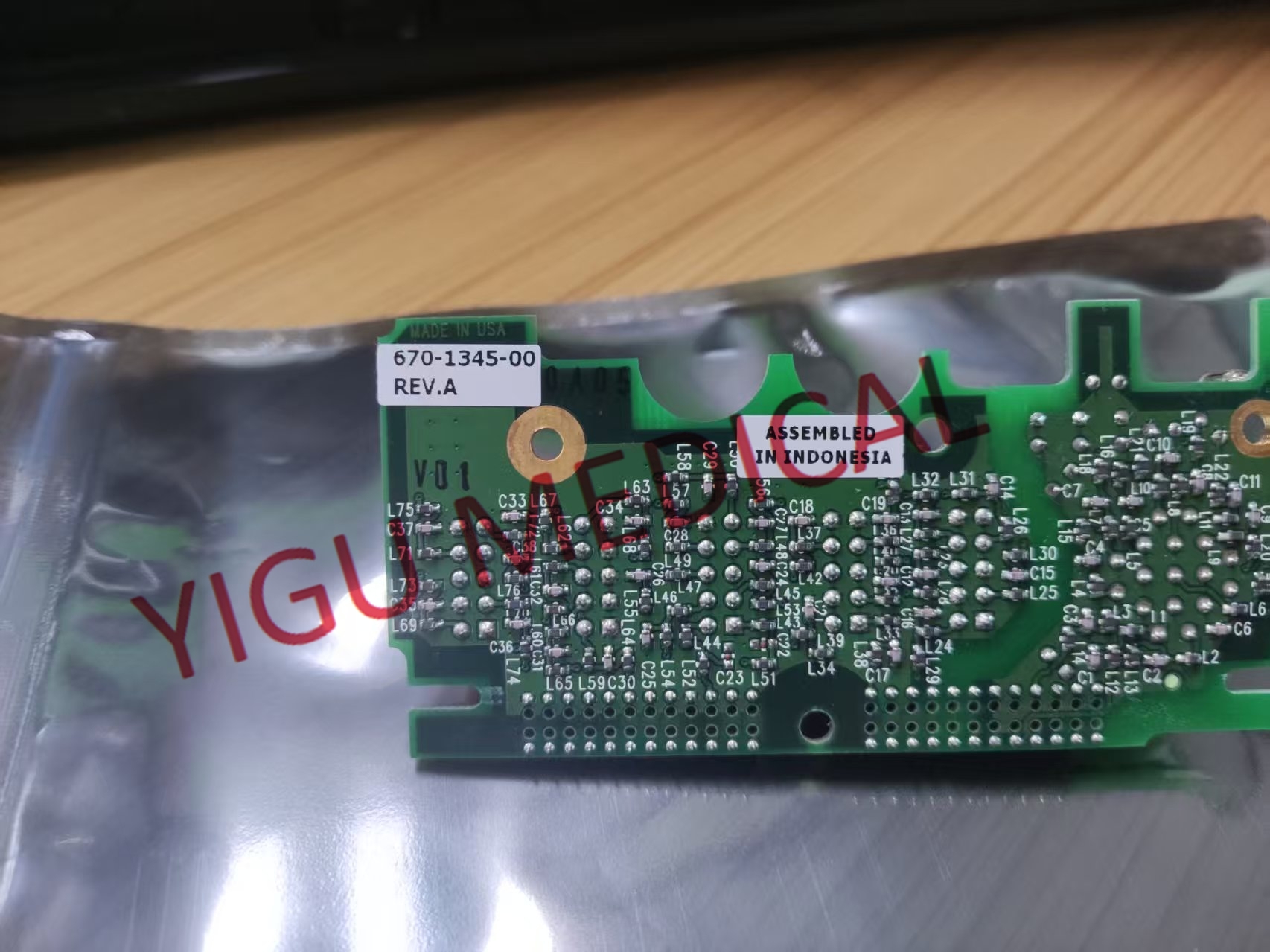

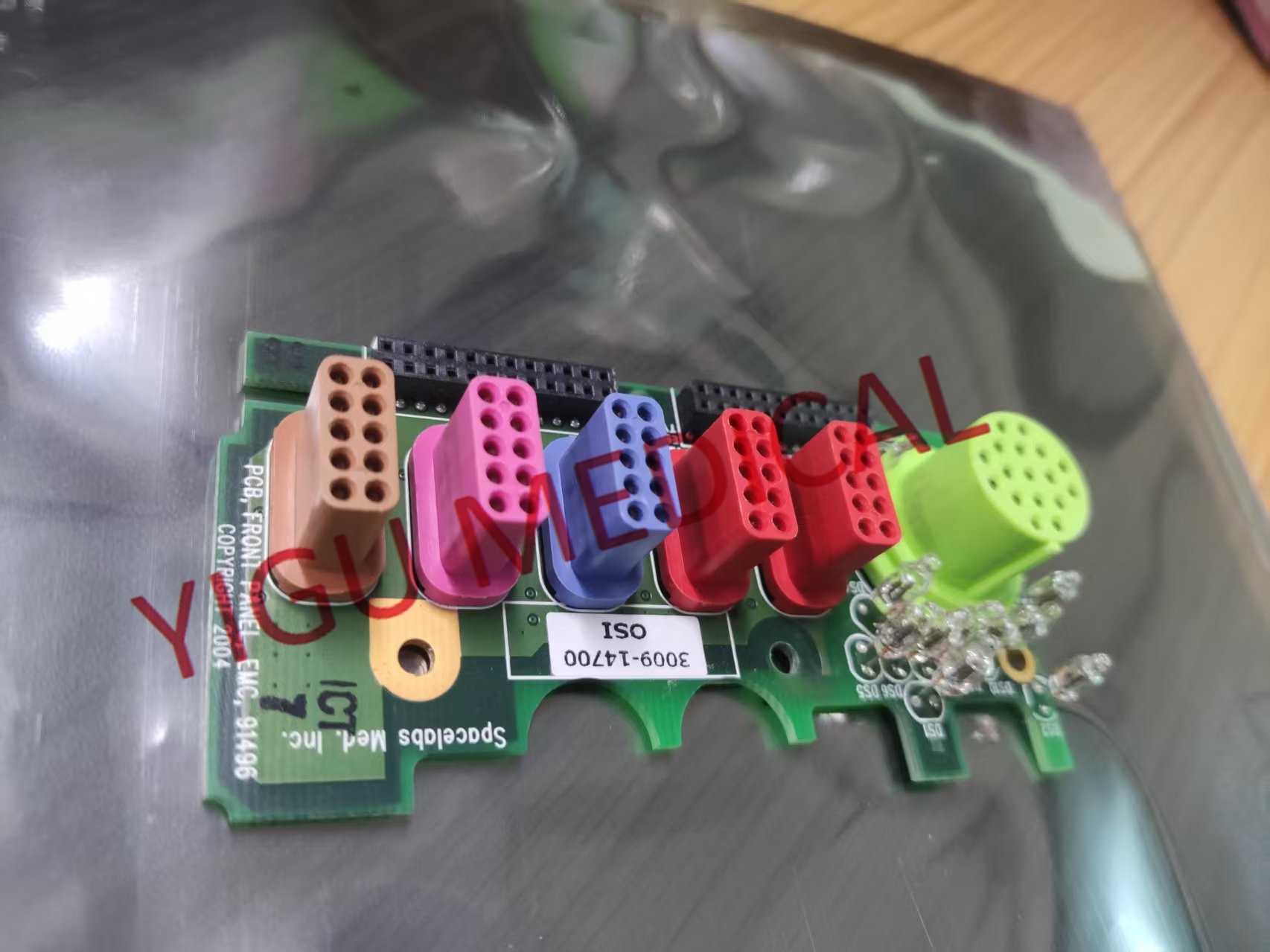

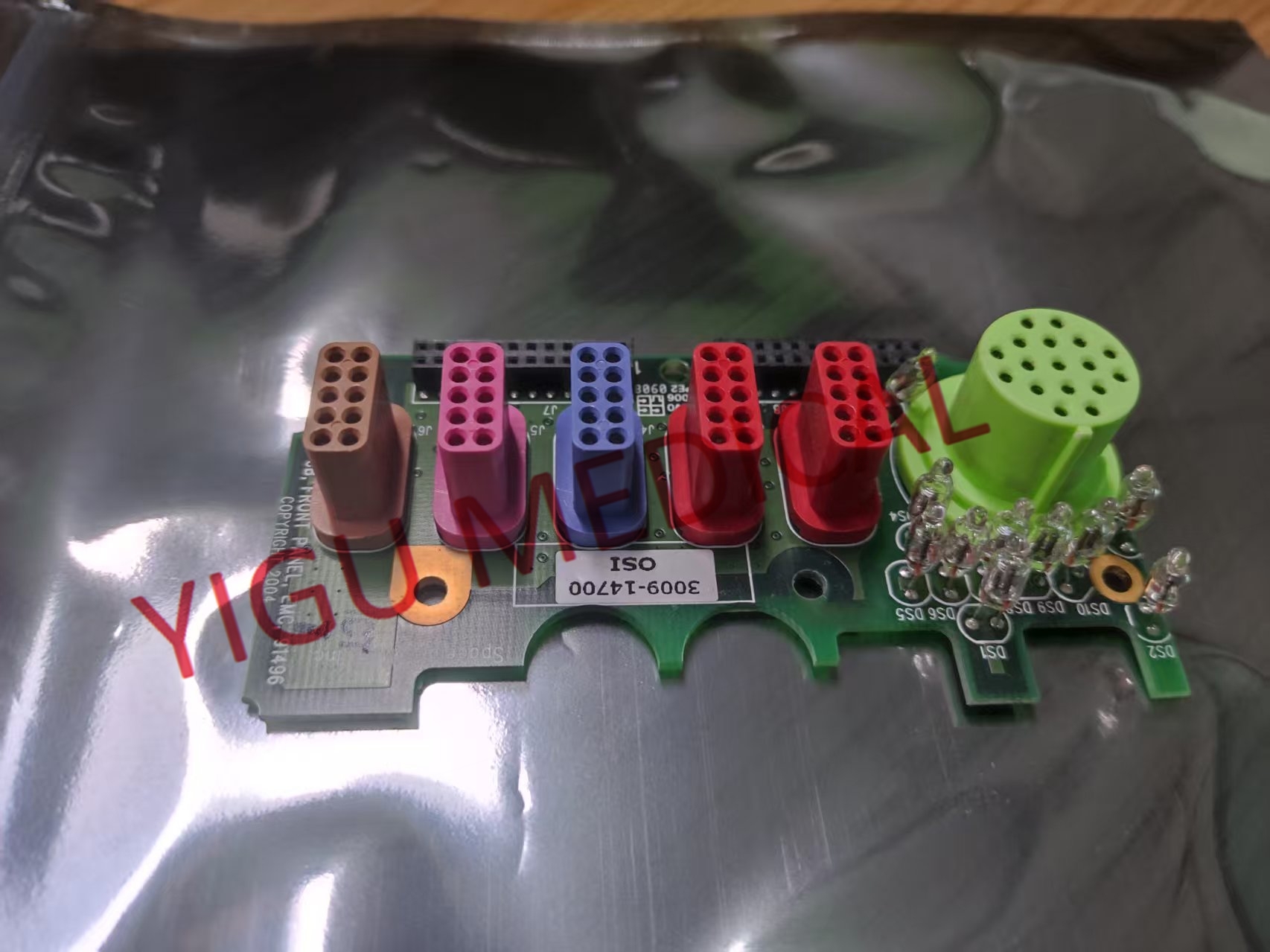

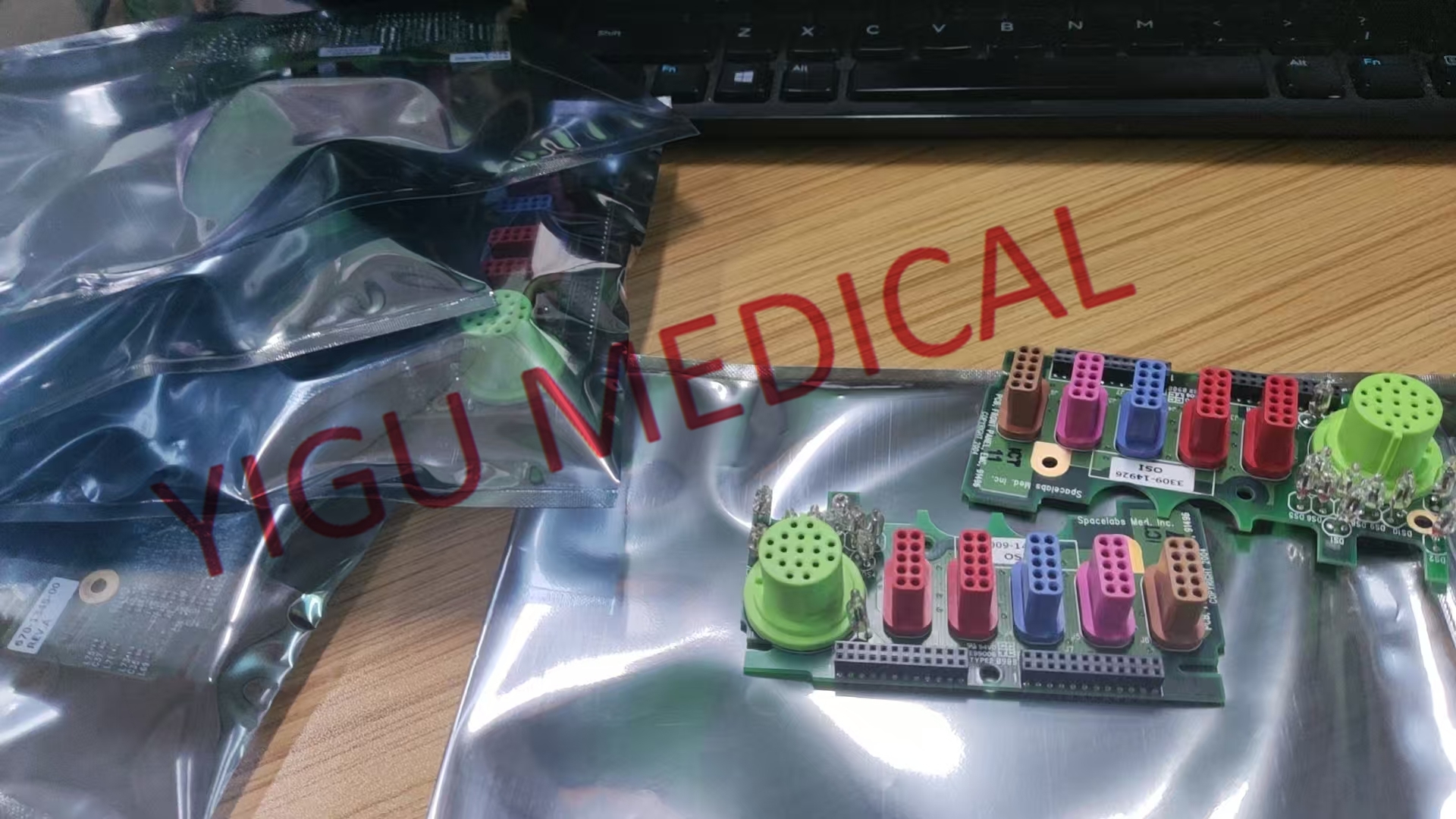

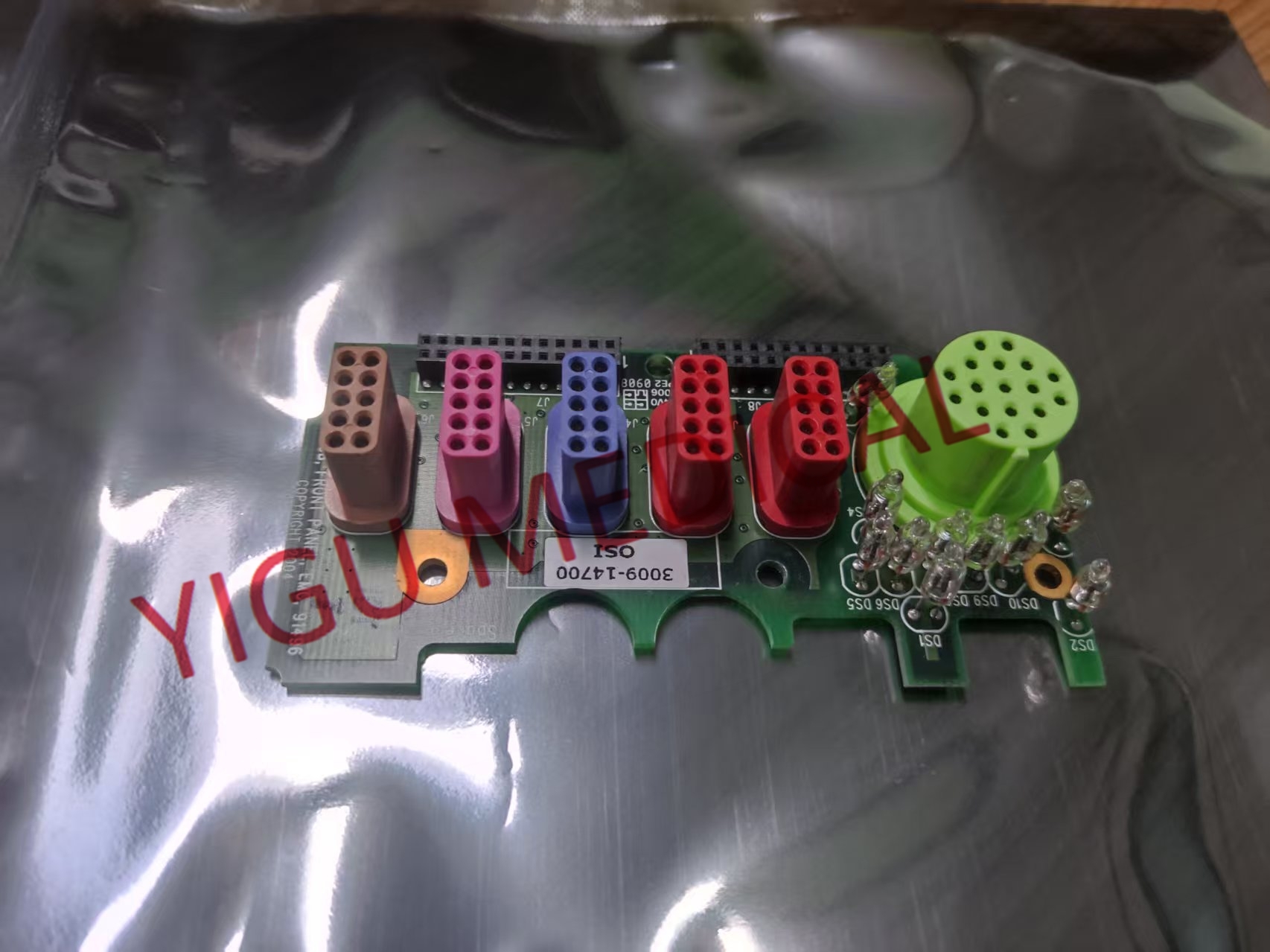

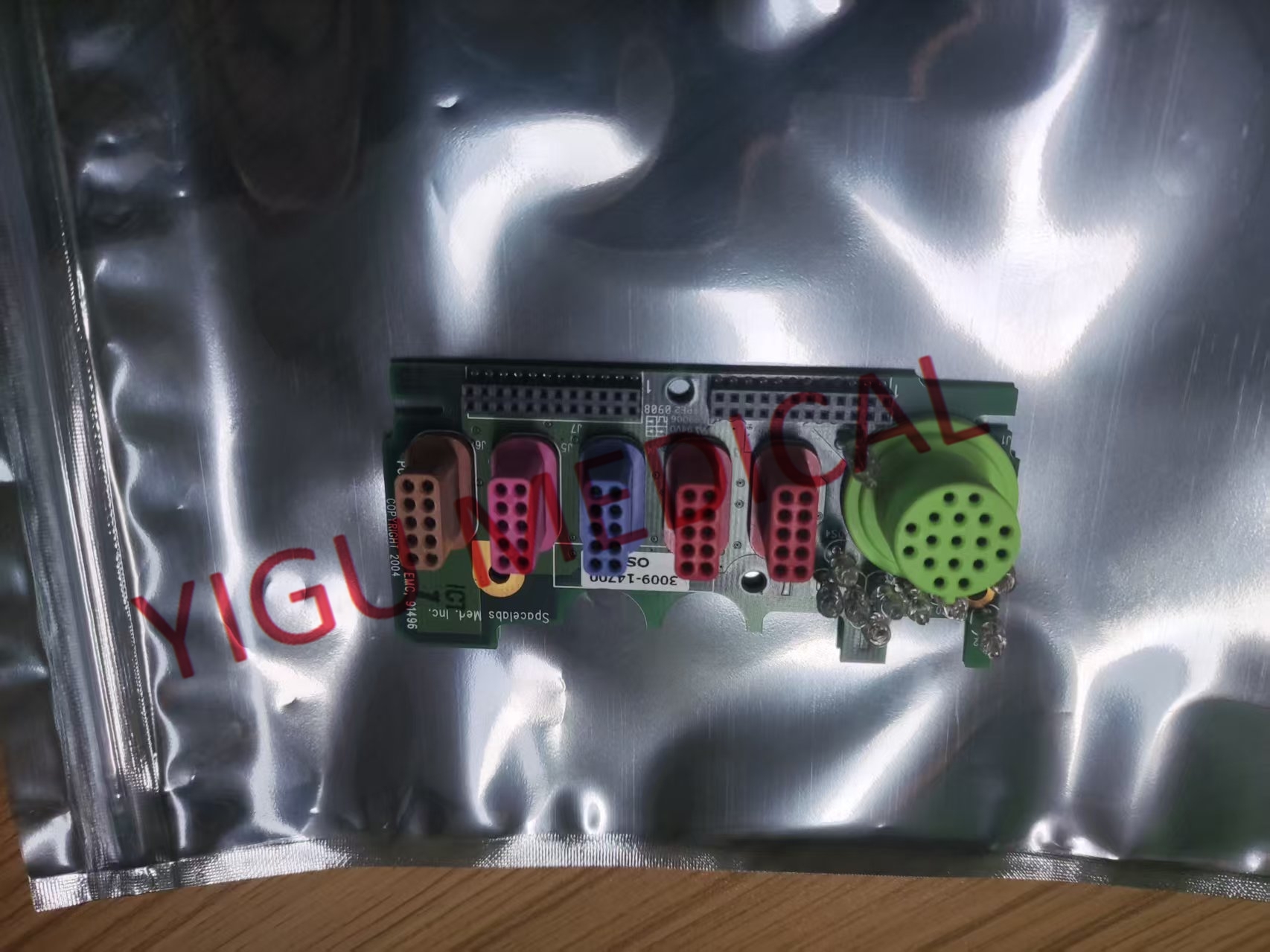

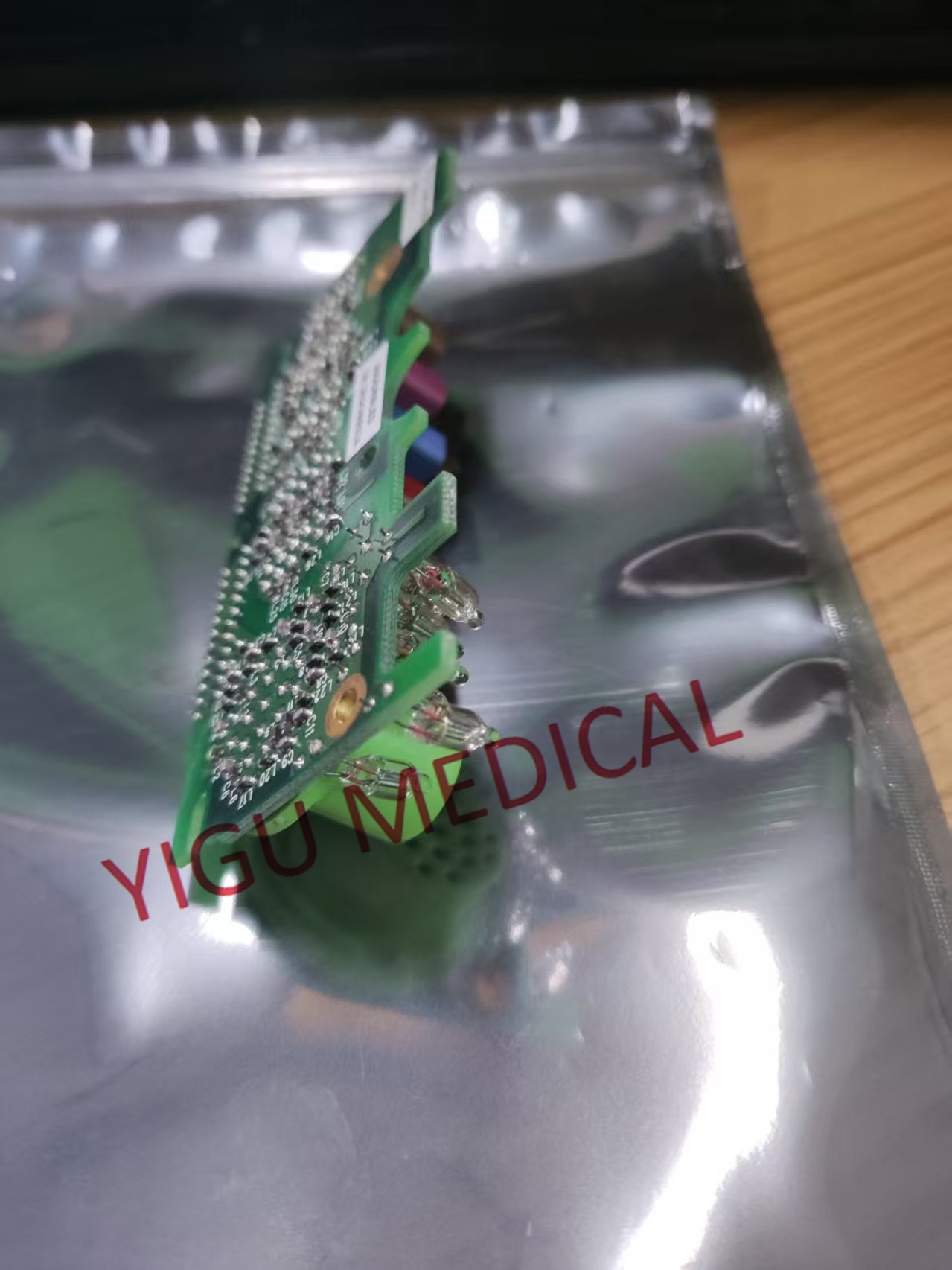

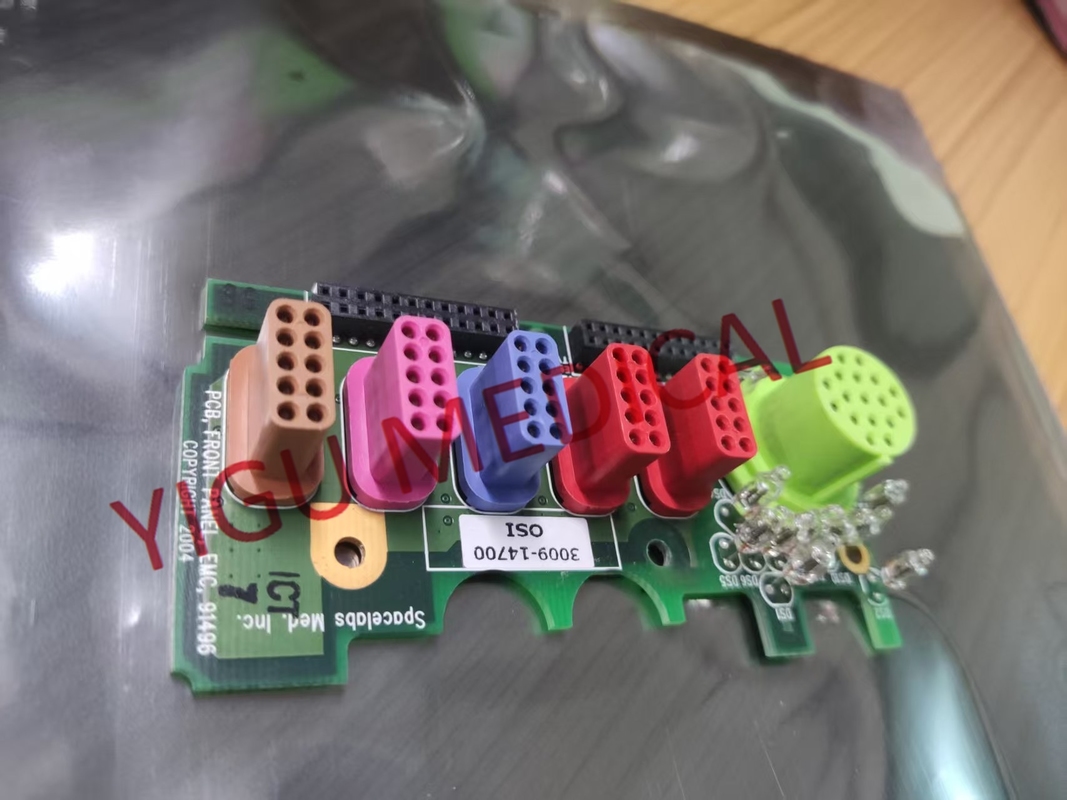

SPACELABS 91496 Module OXIMAX interface board PN:670-1345-00 MMS Module keyboard

The Spacelabs 91496 Module, often referred to as the OxiMax Interface Board or Interface Board, is a printed circuit board (PCB) that acts as a communication bridge. Its primary function is to allow a Spacelabs patient monitor to correctly interpret and process data received from advanced OxiMax pulse oximetry sensors.

This is not a standalone device but an internal module that gets installed inside the monitor's parameter slot.

• Protocol Translation: Translates proprietary OxiMax digital signals into formats compatible with Spacelabs monitors
• Advanced OxiMax Features: Unlocks full OxiMax technology capabilities including OxiMax Signal Extraction Technology, TrueSAT® Algorithm, and SmartSat® Technology
• Sensor Compatibility: Supports 's complete line of OxiMax sensors including Max-A™ adhesive, Max-F™ forehead, and Max-N™ neonatal sensors
• Power and Data Integration: Provides correct electrical power and handles bidirectional data exchange
• Plug-and-Play Operation: Automatic sensor recognition and algorithm selection once installed

• Compatible Monitors: Spacelabs Xhibit, Ultraview SL, Aria Tele, and related product families
• Clinical Settings: Intensive Care Units (ICUs), Emergency Departments, Operating Rooms, Post-Anesthesia Care Units, and general hospital floors

Symptoms of Failure:

• Monitor fails to recognize connected OxiMax sensors
• SpO₂ module or sensor error messages
• Inaccurate or erratic SpO₂/pulse rate readings
• Complete SpO₂ parameter failure

The Spacelabs 91496 OxiMax Interface Board is a crucial interoperability module that enables Spacelabs monitors to utilize the advanced features and clinical benefits of OxiMax pulse oximetry technology, ensuring accurate and reliable oxygen saturation monitoring for patients.
