Original Mindray BeneHeart D3 MPM Board Multi-Parameter Module with Advanced Equipment and Durable Design

Product Description

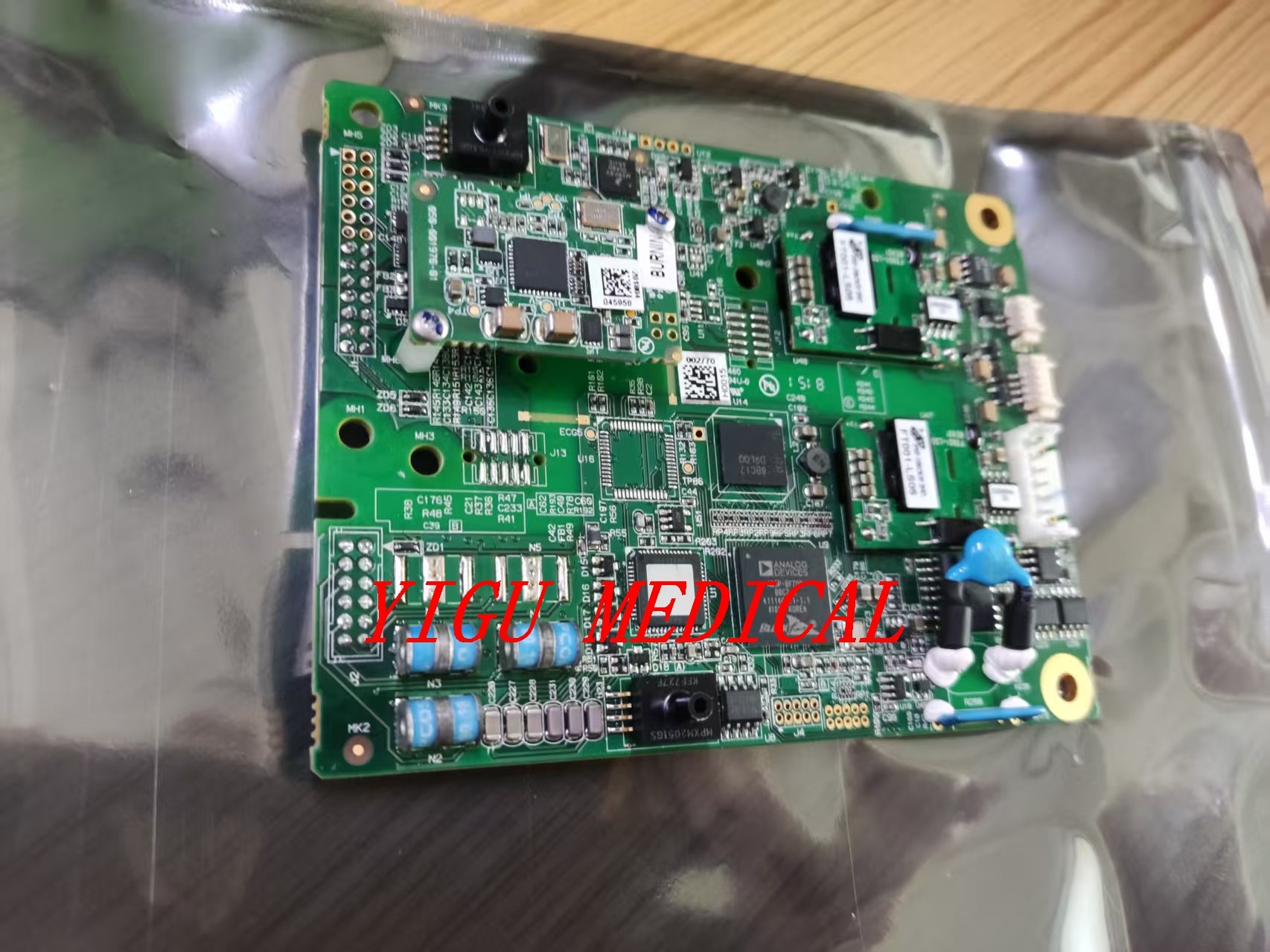

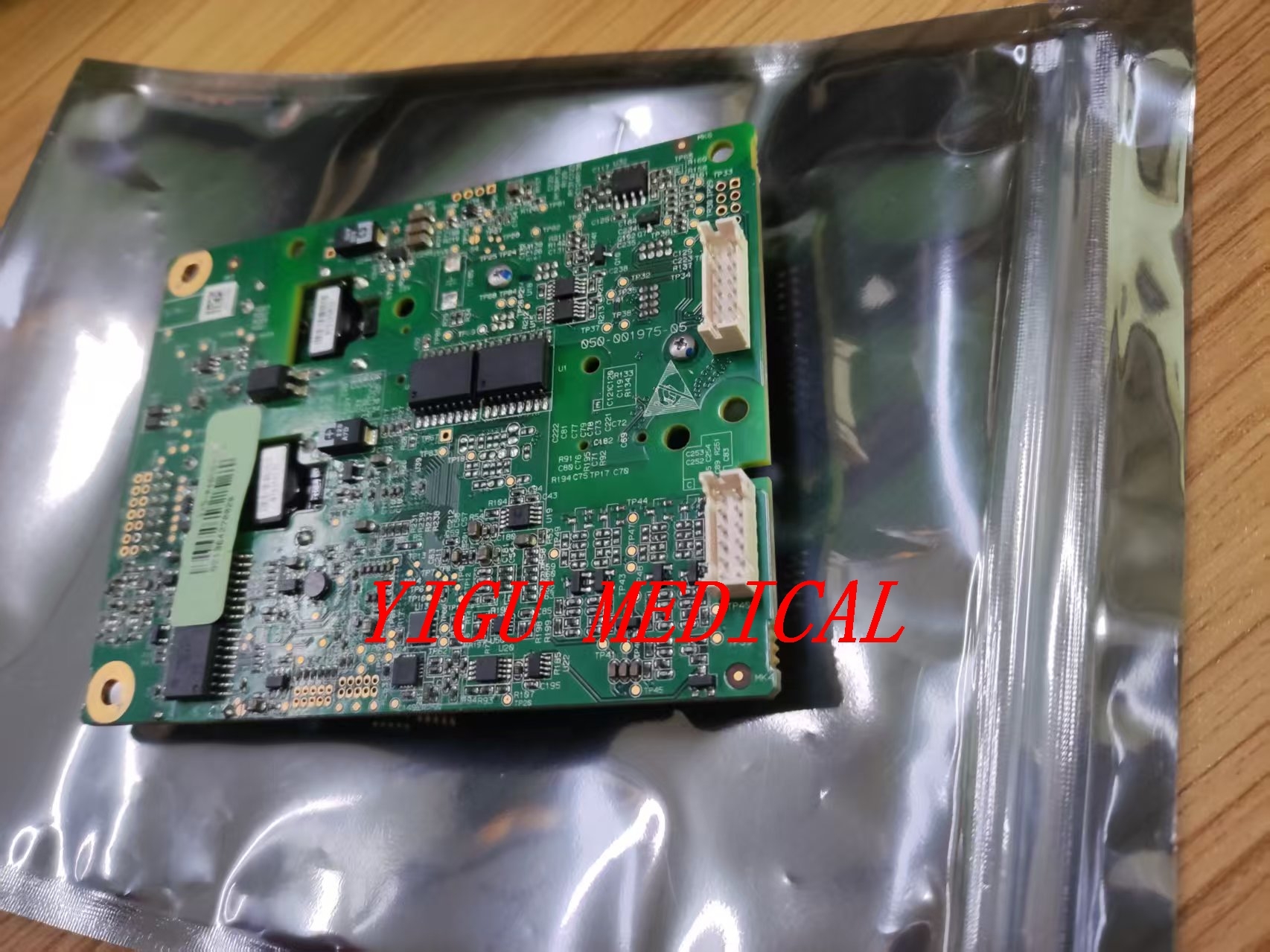

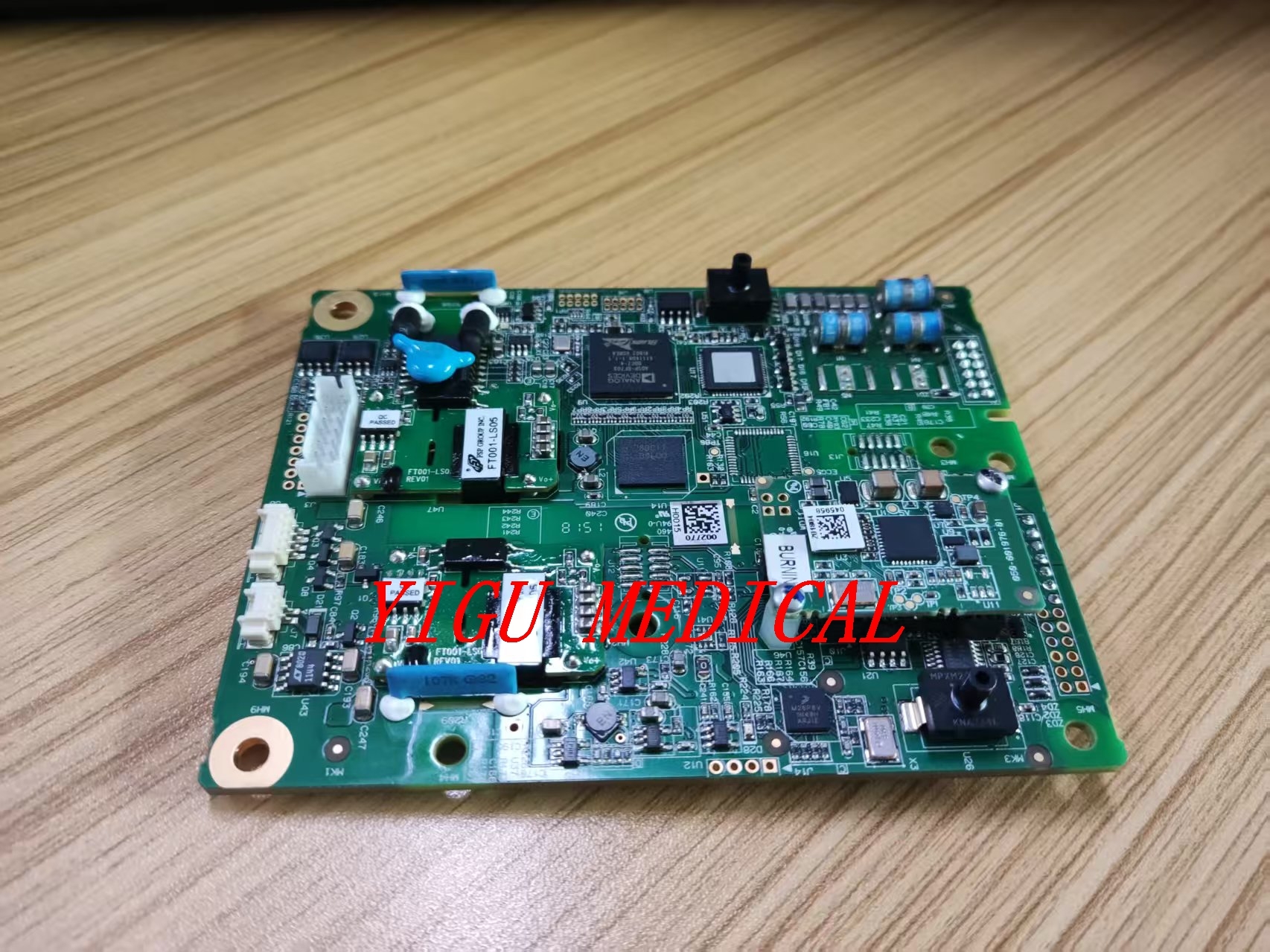

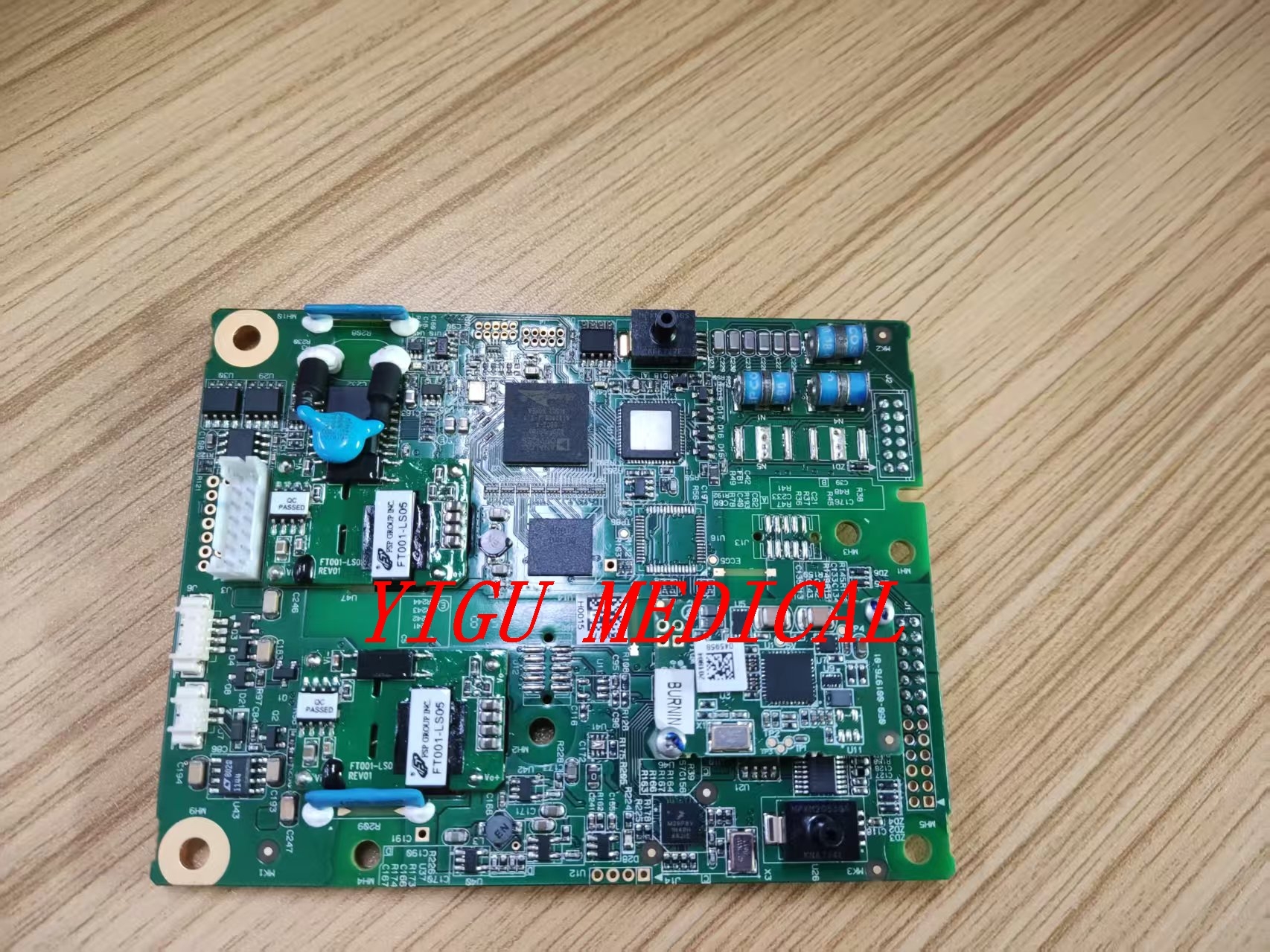

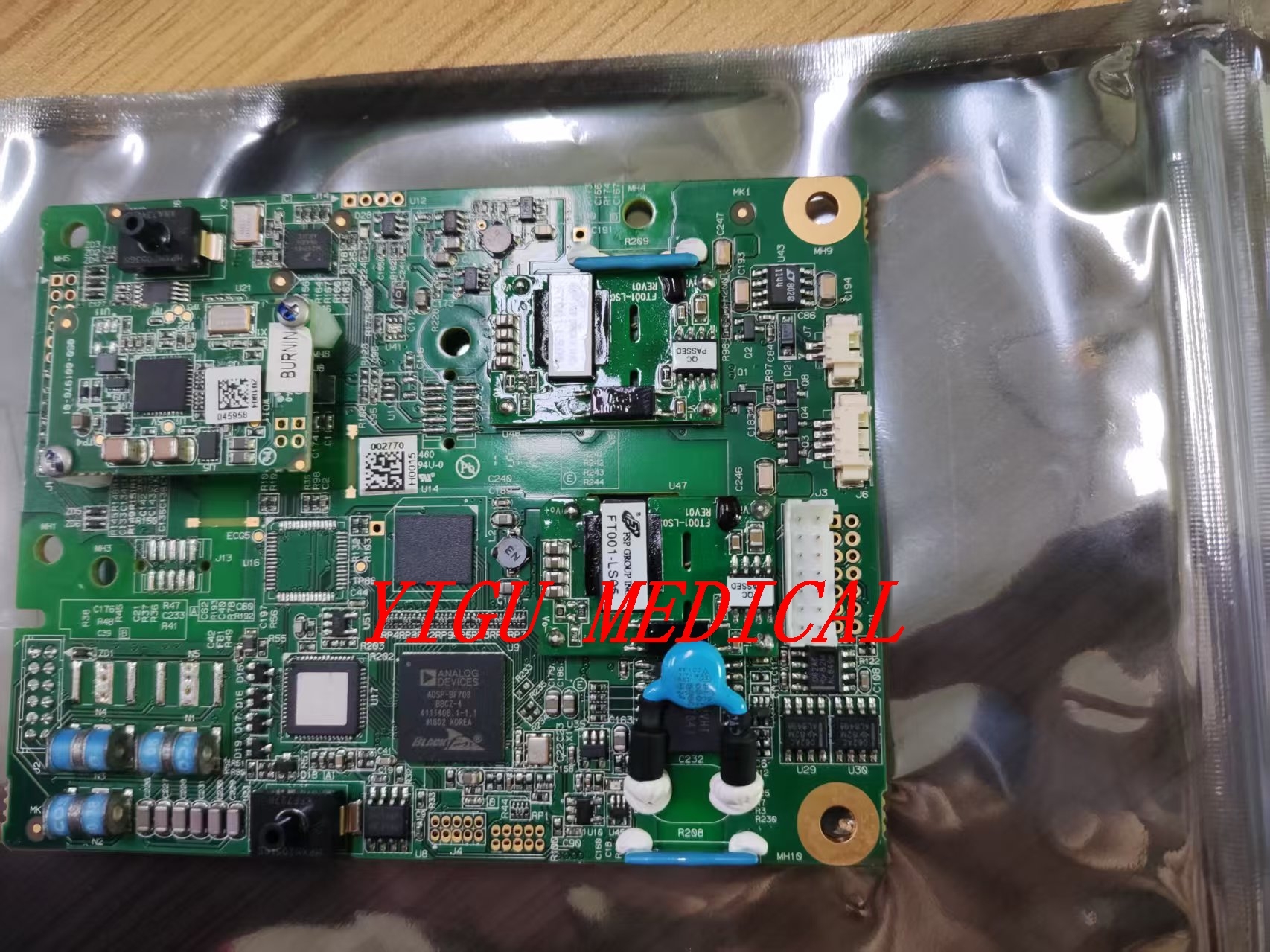

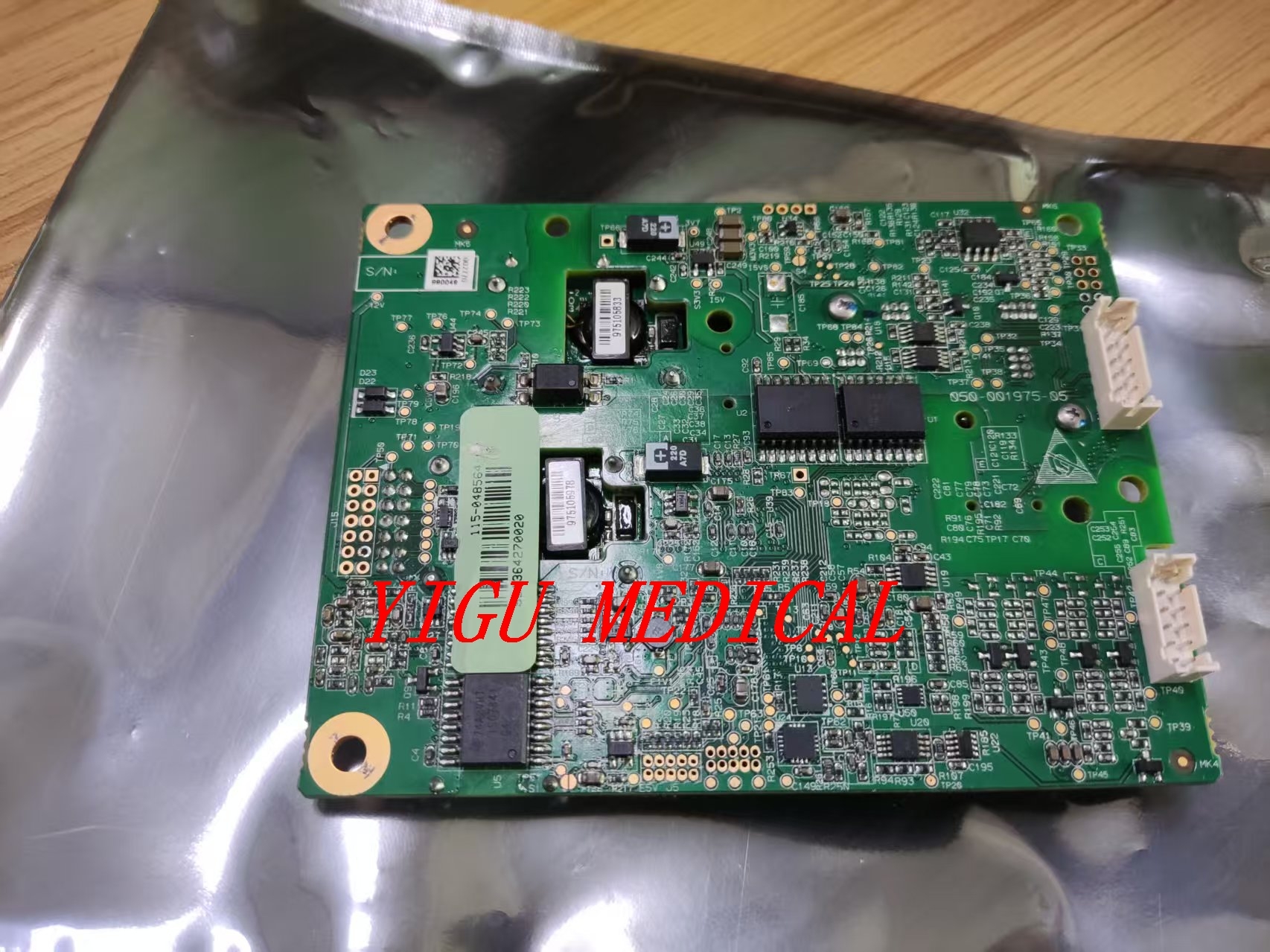

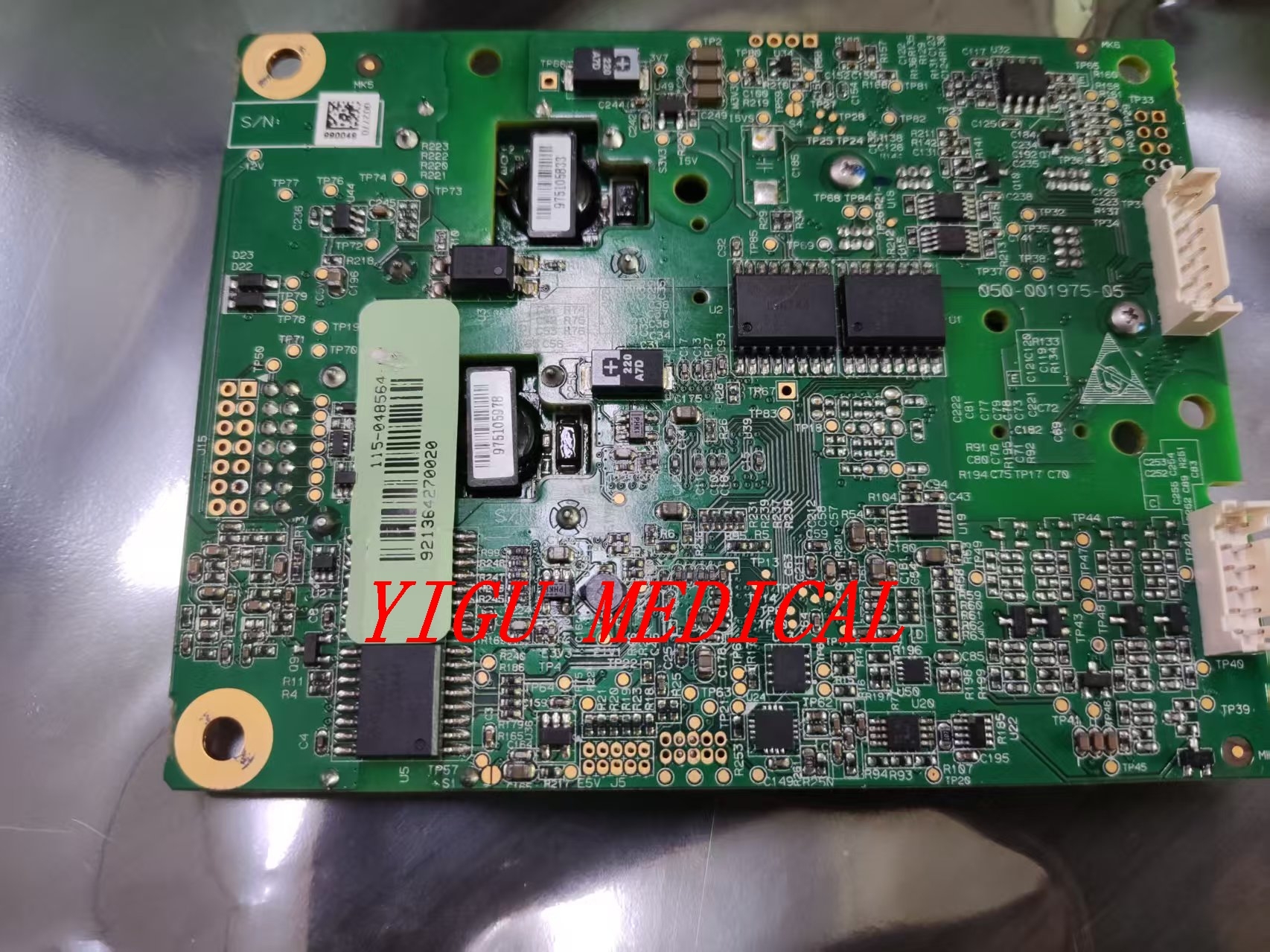

Mindray BeneHeart D3 Multi-Parameter Module MPM board PN 050-001975-05 in New condition

he Mindray D3 MPM is a modular patient monitoring system. The MPM board is the core processing module responsible for collecting, analyzing, and transmitting physiological data from various parameter modules (ECG, SpO₂, NIBP, etc.).

Board Architecture & Function
Primary Functions
Data Integration Hub:
Aggregates data from connected parameter modules
Synchronizes multiple data streams
Handles calculation of derived parameters (MAP, HR, etc.)
Processing & Analysis:
Real-time signal processing algorithms
Arrhythmia detection and ST segment analysis (with appropriate modules)
Artifact filtering and signal validation
System Management:
Module recognition and configuration
Power distribution to connected modules
Firmware management for peripheral modules

Hardware Specifications
Key Components on Board
Main Processor: ARM-based microcontroller (exact model varies by version)
Memory: Flash storage for firmware, RAM for real-time processing
Communication Interfaces:
CAN bus for internal module communication
Ethernet port for network connectivity
Serial interfaces for legacy devices
USB ports for data export/upgrades
Power Regulation: DC-DC converters for clean power to sensitive circuits
Technical Features
Signal Processing
ECG: 12-lead capability with advanced filtering
SpO₂: Motion artifact reduction (Masimo or Mindray proprietary algorithms)
NIBP: Adaptive measurement algorithms for different patient populations
Alarm Management
Configurable alarm limits and priorities
Smart alarm suppression during short artifacts
Escalating alarm protocols
Data Storage & Export
Trend Storage: Typically 72+ hours of detailed waveforms
Event Logging: User actions, alarms, parameter changes
Export Formats: PDF, XML, or proprietary formats
Common Configurations
D3 System Combinations
Basic MPM: ECG + SpO₂ + NIBP
Extended MPM: Adds temperature, respiration, IBP
Full MPM: Includes capnography, cardiac output modules
Display Options
D3 Main Display: Integrated with MPM module
Secondary Displays: Can drive additional screens
Remote Viewing: Via network connectivity
Troubleshooting & Maintenance
Common Issues
Module Not Recognized:
Check connector pins for damage
Verify module compatibility
Possible board communication fault

Intermittent Data Loss:

Loose internal connections

Power supply issues

Firmware corruption

Processing Errors:

Software glitches (may require reboot)

Memory corruption

Processor overload

Maintenance Requirements
Regular: Software updates/firmware upgrades

Preventive: Contact cleaning, visual inspection

Periodic: Calibration verification (for some parameters)

Technical Notes
Firmware Architecture
Real-time OS: Typically VxWorks or similar embedded system

Modular Design: Each parameter module has dedicated firmware

Update Process: Via USB or network connection

Safety Features
Isolation: Patient-connected circuits have medical-grade isolation

Self-Tests: Automatic on startup and periodically during operation

Redundancy: Critical functions may have backup processing paths
