Mindray PM8000 Patient Monitor Interface Board with 3 Months Warranty, Ethernet LAN Port, and VGA Port
Mindray PM8000 Patient Monitor Interface Board with 3 Months Warranty, Ethernet LAN Port, and VGA Port
Mindray PM8000 Patient Monitor Interface Board with 3 Months Warranty, Ethernet LAN Port, and VGA Port Mindray PM8000 Patient Monitor Interface Board with 3 Months Warranty, Ethernet LAN Port, and VGA Port Mindray PM8000 Patient Monitor Interface Board with 3 Months Warranty, Ethernet LAN Port, and VGA Port Mindray PM8000 Patient Monitor Interface Board with 3 Months Warranty, Ethernet LAN Port, and VGA Port Mindray PM8000 Patient Monitor Interface Board with 3 Months Warranty, Ethernet LAN Port, and VGA Port Mindray PM8000 Patient Monitor Interface Board with 3 Months Warranty, Ethernet LAN Port, and VGA Port

Mindray PM8000 Patient Monitor Interface Board with 3 Months Warranty, Ethernet LAN Port, and VGA Port

Product Details:
Brand Name: Mindray
Model Number: PM8000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: normal package
Delivery Time: 1-2 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10
Contact Now
  • Detail Information
  • Product Description

Detail Information
Type: PM8000 Leadtime: 1-2 Business Days Once Payment Is Done
Replacementparts: Original Manufacturer Parts Transportation: DHL, EMS, UPS And ACS
Model No: PM-8000 Shipping Area: All Country In All Over The World
Use: Patient Monitor Service: Full Technical Support
Usage: Clinic,Patient Monitor,Surgical Room Payments: T/T, Western Union, Paypal
Highlight:

3 Months Warranty Patient Monitor Interface Board

,

Ethernet LAN Port PM8000 Interface Board

,

VGA Port Network/Recorder Interface Board

Product Description

Mindray PM8000 Patient Monitor Interface Board
Condition: In Good Condition
Warranty: 3 Months Comprehensive Warranty
This Network/Recorder Interface Board serves as the primary communication hub for the Mindray PM-8000 Express patient monitor, facilitating data transfer and peripheral connectivity in clinical environments.
Primary Functions
  • Networking: Enables Ethernet (LAN) connectivity to central nursing stations and hospital information systems for remote patient data monitoring
  • Peripheral Output: Provides analog signal output to drive external displays and central monitoring screens
Interface Specifications
Interface Type Connector Function
LAN Port RJ45 Ethernet Digital network communication for remote data viewing and system integration
Video Output 15-pin VGA Analog video output for external displays and larger screen waveform viewing
I/O Port (Optional) DB9 D-Sub Connection for specialized external equipment and data output protocols
Technical Specifications
  • Part Number: 0120-17-47258 (also known as HY2150 VGA + LAN interface board)
  • Compatibility: Designed specifically for Mindray PM-8000 Express series
  • Installation: Technician-level replacement requiring monitor disassembly
  • Location: Mounted on rear panel for easy connector access

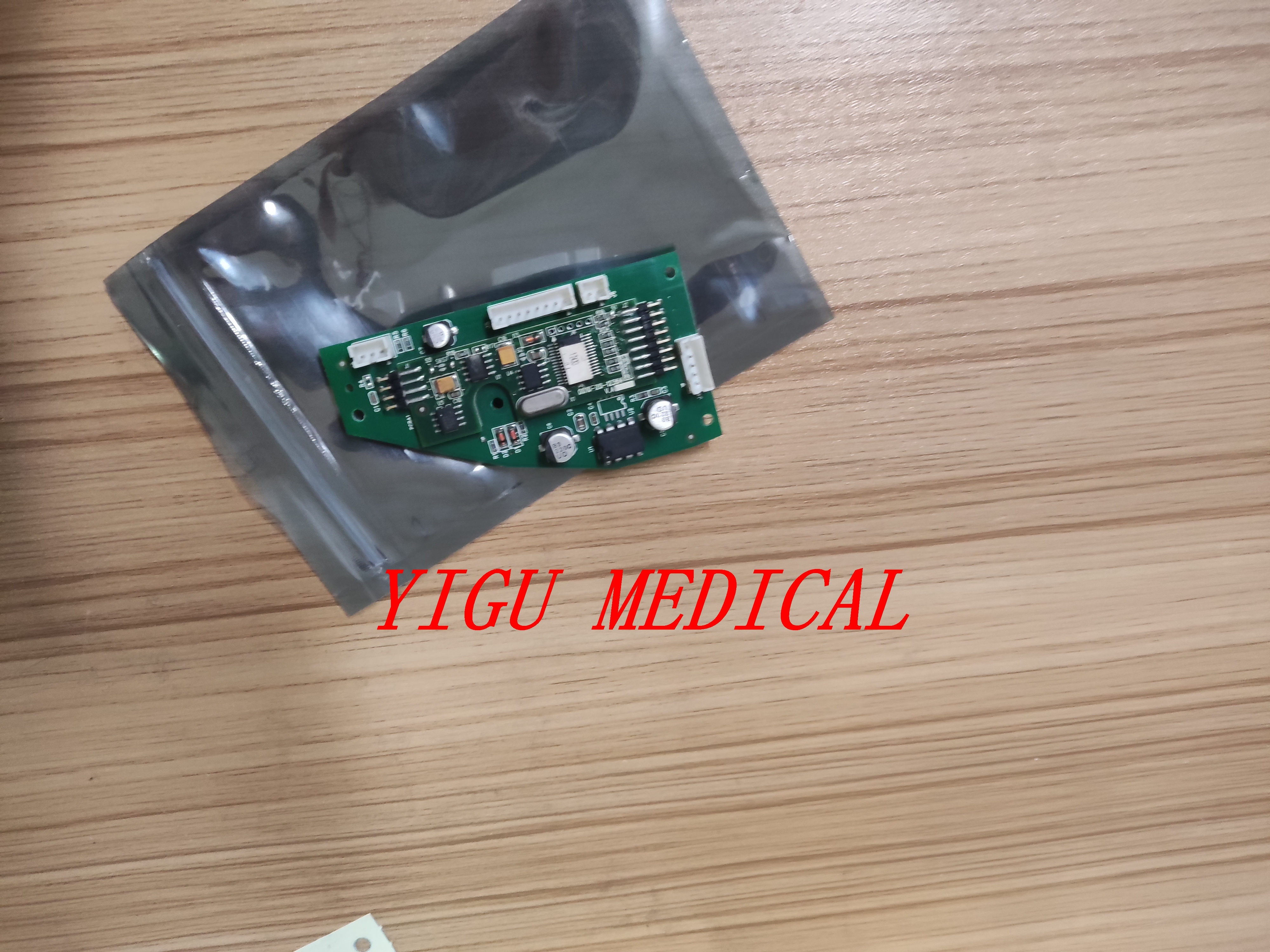

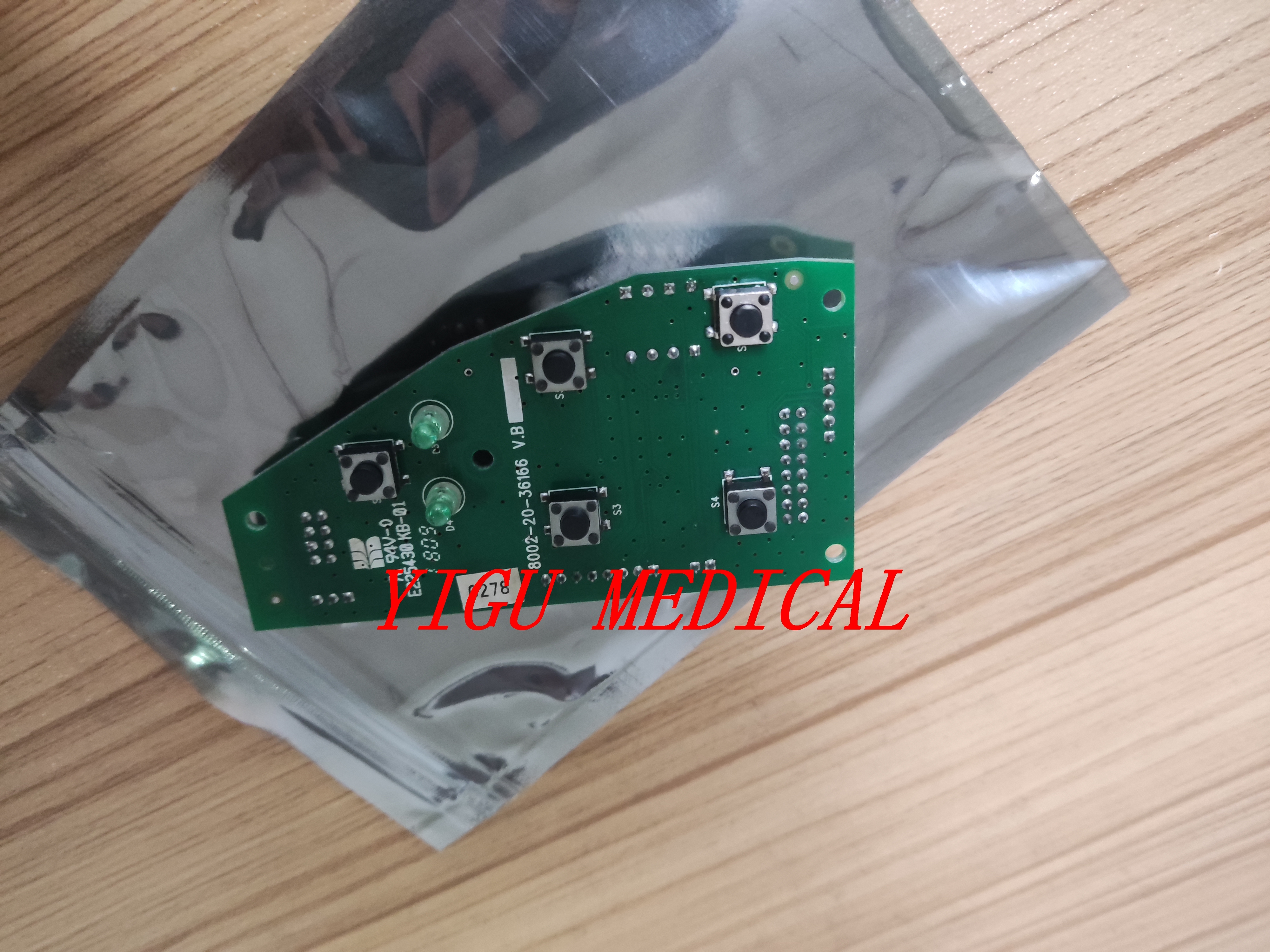

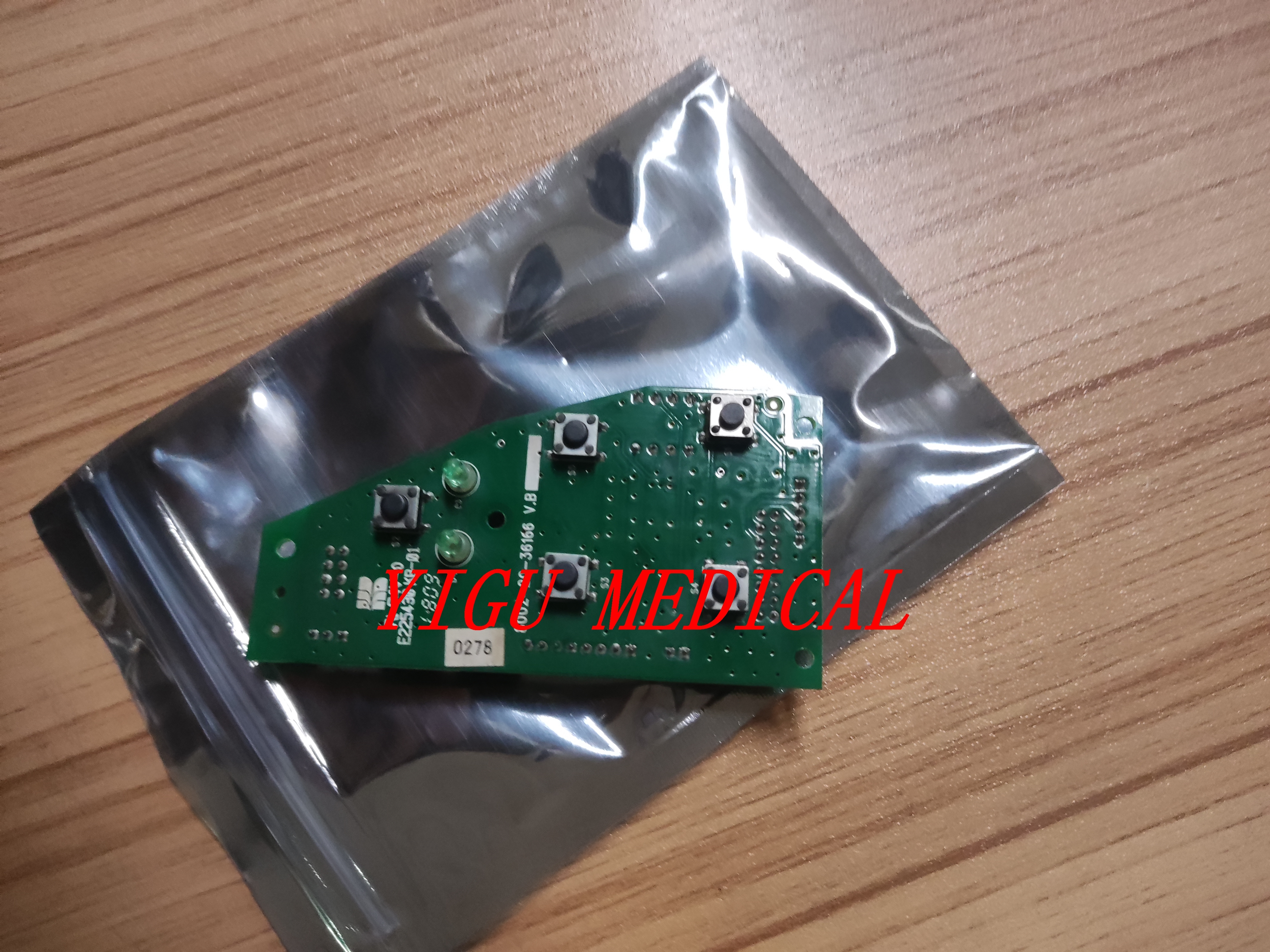

Board Images
Mindray PM8000 Patient Monitor Interface Board with 3 Months Warranty, Ethernet LAN Port, and VGA Port 0
Mindray PM8000 Patient Monitor Interface Board with 3 Months Warranty, Ethernet LAN Port, and VGA Port 1
Service Notes
Replacement involves removing the monitor cover and disconnecting the flat ribbon cable connecting to the main Parameter Module Board. This interface board is model-specific and not interchangeable with other Mindray monitor versions due to internal connection and firmware differences.
