Medical Patient GE B650 Monitor Power Supply Featuring AC DC Power for Extended Monitoring Time
Medical Patient GE B650 Monitor Power Supply Featuring AC DC Power for Extended Monitoring Time
Medical Patient GE B650 Monitor Power Supply Featuring AC DC Power for Extended Monitoring Time Medical Patient GE B650 Monitor Power Supply Featuring AC DC Power for Extended Monitoring Time Medical Patient GE B650 Monitor Power Supply Featuring AC DC Power for Extended Monitoring Time Medical Patient GE B650 Monitor Power Supply Featuring AC DC Power for Extended Monitoring Time Medical Patient GE B650 Monitor Power Supply Featuring AC DC Power for Extended Monitoring Time

Medical Patient GE B650 Monitor Power Supply Featuring AC DC Power for Extended Monitoring Time

Product Details:
Brand Name: GE
Model Number: b650
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Normal package
Delivery Time: Within 1-2 work days
Payment Terms: T/T,Western Union,PayPal
Supply Ability: 20
Contact Now
  • Detail Information
  • Product Description

Detail Information
Output Voltage: 12V DC

Product Description

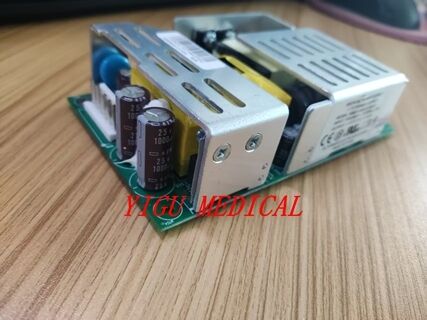

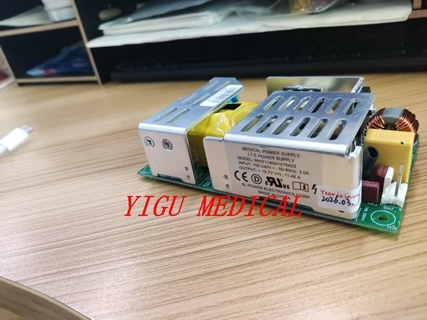

Medical Patient GE B650 Monitor Power Supply

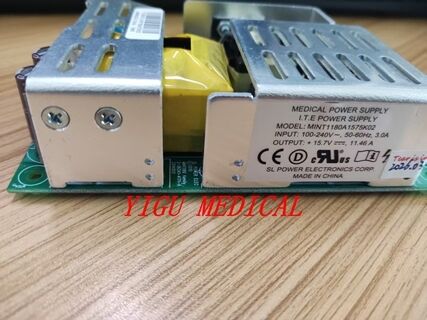

This GE CARESCAPE B650 Patient Monitor Power Supply (PN MINT1180A1575K02) is in good condition and ready for reliable operation in medical monitoring applications, featuring AC/DC power for extended monitoring time.
90-Day Warranty Included
Power System Overview
The GE CARESCAPE B650 patient monitor features a sophisticated power management subsystem engineered for maximum reliability and patient safety. The system comprises an internal AC/DC power supply unit, a DC/DC board for power distribution, and an optional backup battery.
AC/DC Power Supply Unit
For uninterrupted monitoring during patient transport or power outages, the B650 supports an optional rechargeable lithium-ion battery:
Specification Details
Runtime Approximately 1-2 hours when fully charged (varies by configuration)
Voltage 11.1V lithium-ion battery
Charging Time 2-3 hours to reach full charge
Capacity 6.21 Ah typical capacity
The entire power system is designed for high efficiency and uses convection cooling, with the power supply unit's heat sink mounted to the aluminum rear case for effective heat dissipation without requiring a fan.
DC/DC Board and Power Management
The DC/DC board manages power from both the AC/DC supply and battery, providing several critical functions:
  • Voltage Conversion: Converts incoming power to required voltages (+3.3V for CPU board, +5V for interface boards, +12V for display backlight and optional recorder)
  • Battery Management: Handles all battery charging and communication through a Power Management Controller (PMC) to optimize charging and monitor battery status
  • Power Path Management: Intelligently selects between AC power and battery power for seamless switching during power loss
