Comen CM1200B Electrocardiograph Mainboard PN 050-000214-00 ECG Motherboard
Comen CM1200B Electrocardiograph Mainboard PN 050-000214-00 ECG Motherboard Comen CM1200B Electrocardiograph Mainboard PN 050-000214-00 ECG Motherboard Comen CM1200B Electrocardiograph Mainboard PN 050-000214-00 ECG Motherboard Comen CM1200B Electrocardiograph Mainboard PN 050-000214-00 ECG Motherboard

Comen CM1200B Electrocardiograph Mainboard PN 050-000214-00 ECG Motherboard

Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: normal package
Delivery Time: 1-2 days
Supply Ability: 20
Contact Now
  • Detail Information
  • Product Description

Detail Information
Stocks: AVAILABLE Shape: Standard
Connector Type: Standard Connector Function: Provide Power For Patient Monitor
Keywords: ECG Machine Mainboard Warranty: 3Months
Qc: Tested 100% Working Quality: 100% Original
Shipping: DHL,UPS, FEDEX Packing: Box Packing Clean
Quality Control: 100% Working Tested Lead Time: Within 1-3 Working Days,2 Days
Price: Negotiation

Product Description

Comen CM1200B Electrocardiograph Mainboard PN 050-000214-00 ECG Motherboard
Product Overview

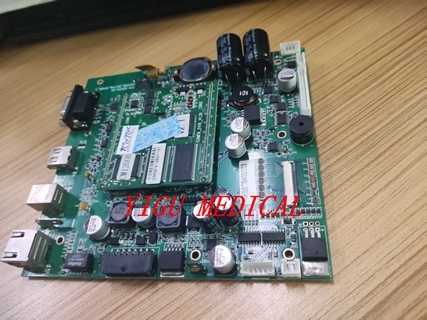

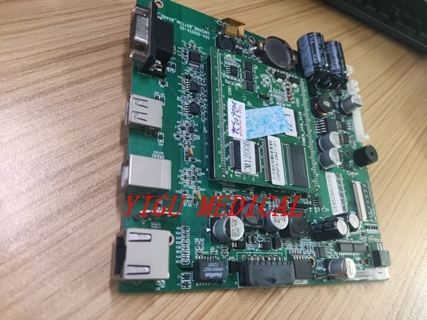

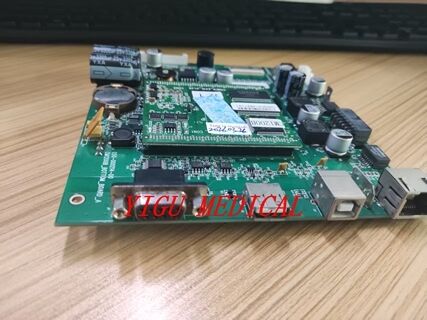

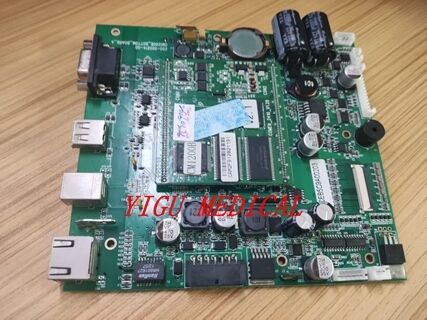

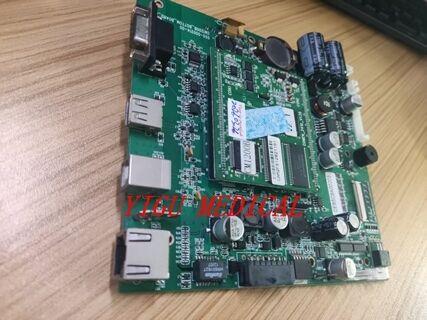

The Comen CM1200B Mainboard is the central processing unit of the Comen CM1200B 12-Channel Electrocardiograph. This digital ECG machine is designed for resting ECG analysis in hospitals, clinics, and emergency medical services, featuring a compact, portable chassis with aluminum alloy internal frame for shockproof and anti-drop protection.

ECG System Features
  • 12-channel simultaneous acquisition and analysis
  • Multi-language support (Chinese, English, Spanish, Polish)
  • Print preview before printing
  • 1:1 waveform ratio between LCD screen and printed output
  • Digital filtering to eliminate baseline drift and muscle interference
  • USB port for external printer and data transmission
  • Numeric keyboard with backlight for night use
Technical Specifications
Signal Processing Multi-channel high-precision ADC technology
Sampling Rate ≥1000 Hz for high-fidelity waveform reproduction
Filtering Capabilities Power line filter (50Hz/60Hz), muscle artifact suppression (25Hz/35Hz/45Hz), baseline drift filter (0.05Hz/0.15Hz/0.25Hz/0.50Hz), low-pass options (70Hz, 100Hz, 150Hz)
Processing Power Dual-core processor for real-time analysis
Analysis Capabilities Automatic analysis, arrhythmia analysis for 122 types, pacemaker detection
Storage Capacity ≥5,000 ECG records, 300 patient records (standard), 2 minutes of 12-lead waveform data
Connectivity USB port, Wi-Fi support for Hospital Information Systems (HIS)
Application Environments
  • Hospital cardiology departments for routine ECG diagnostics
  • Clinical outpatient ECG testing
  • Emergency services with mobile/ambulatory use (≥1.2m drop resistance)
  • Battery-powered operation for ambulance transport (up to 4 hours runtime)
Maintenance & Compatibility
Important Installation Notes:
  • Verify compatibility - Specifically for CM1200B model (also compatible with CM1500D)
  • Professional installation required by qualified biomedical engineering personnel
  • Ensures patient safety and compliance with medical electrical equipment standards
  • Typical failure rate: <0.3% per year under normal use
  • Fully modular internal design for easy maintenance and upgrades
