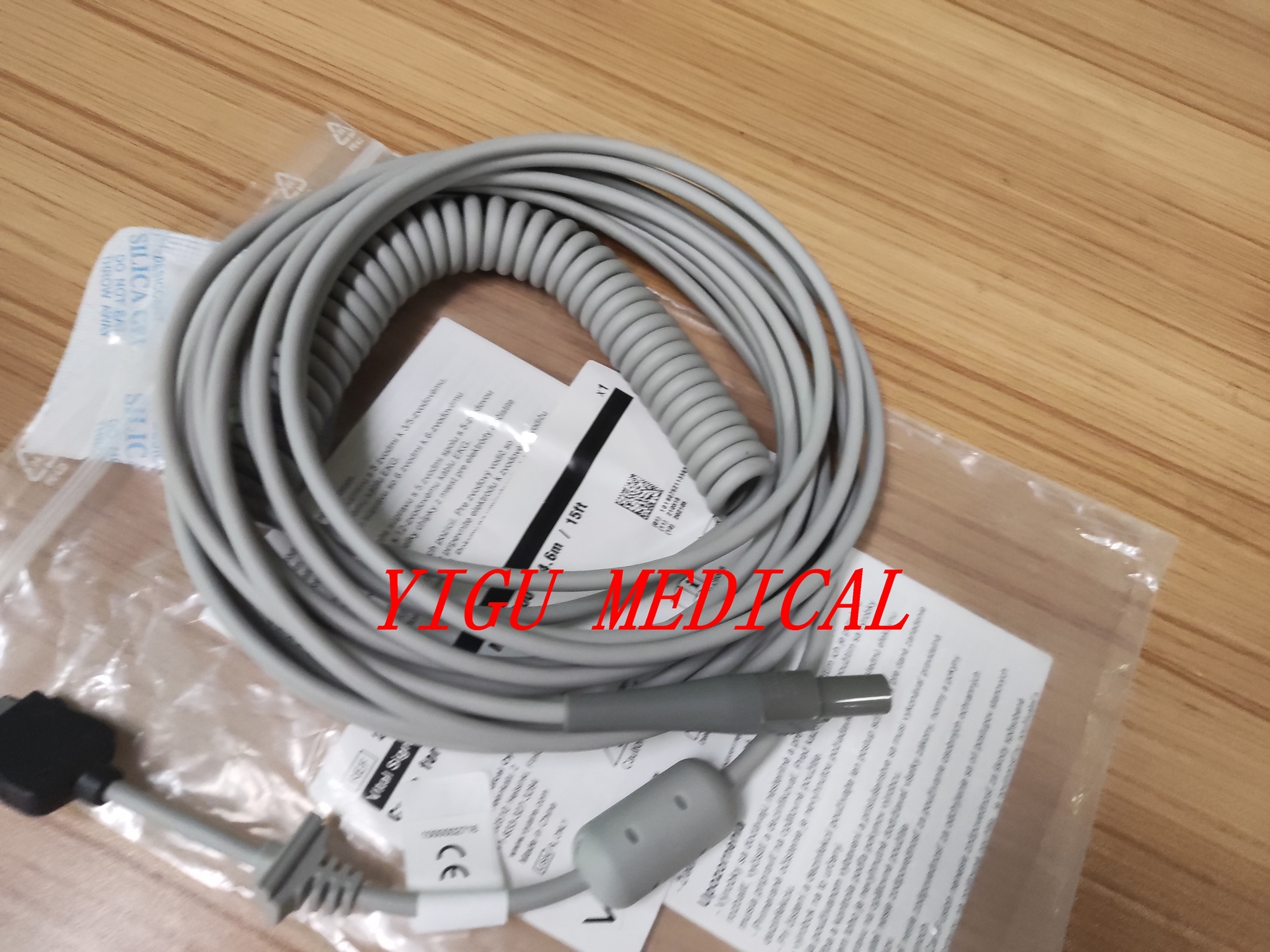

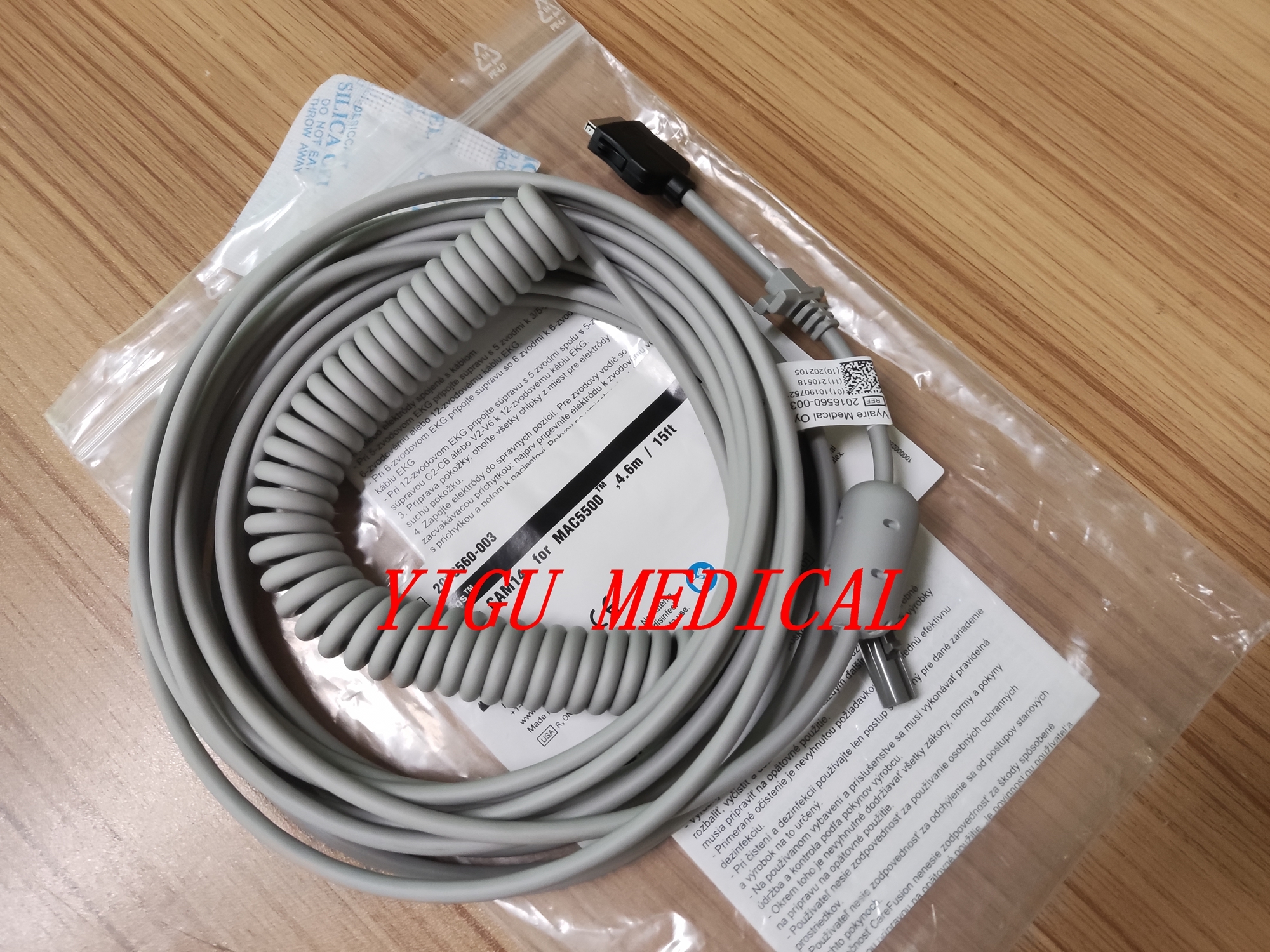

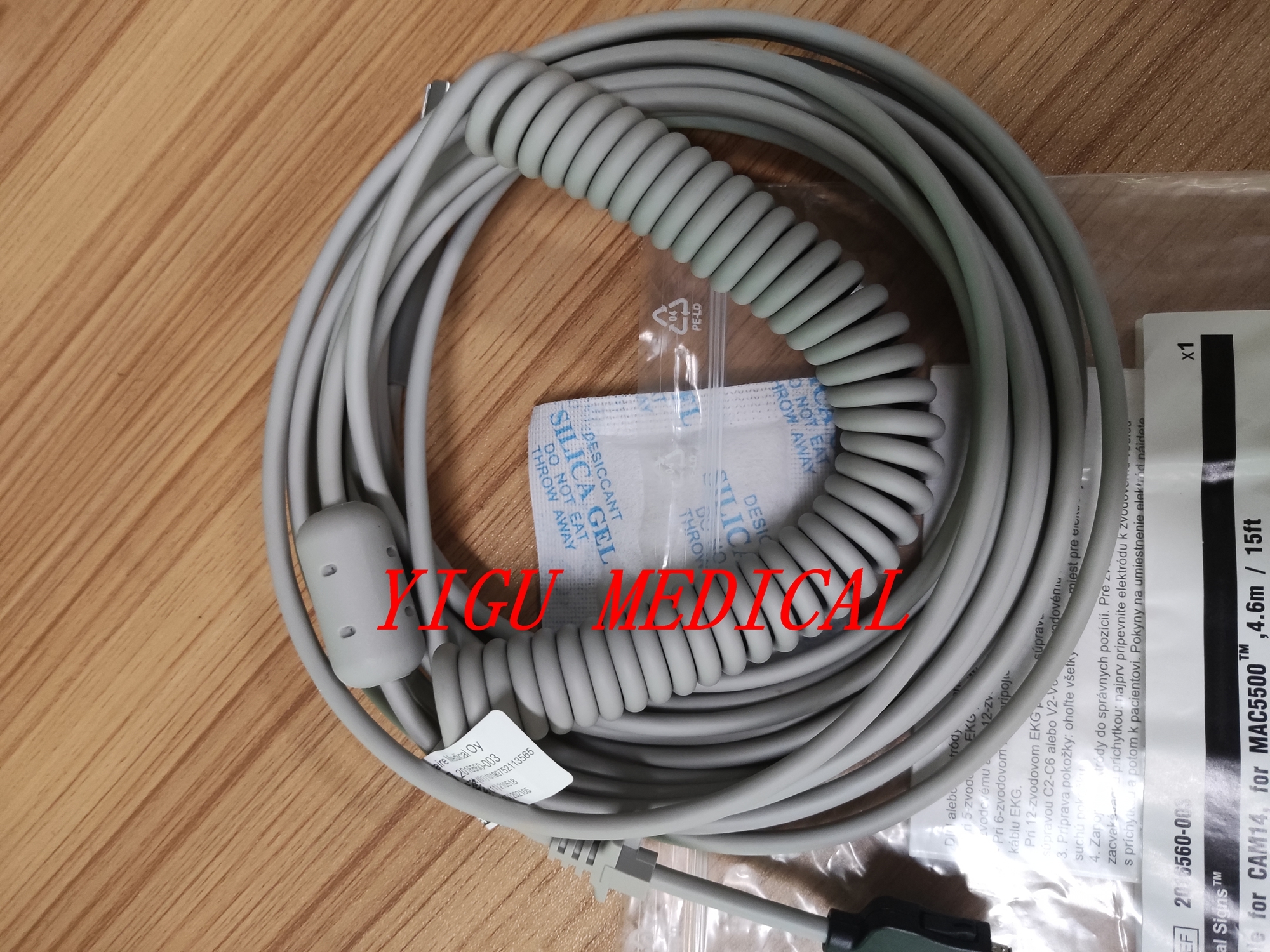

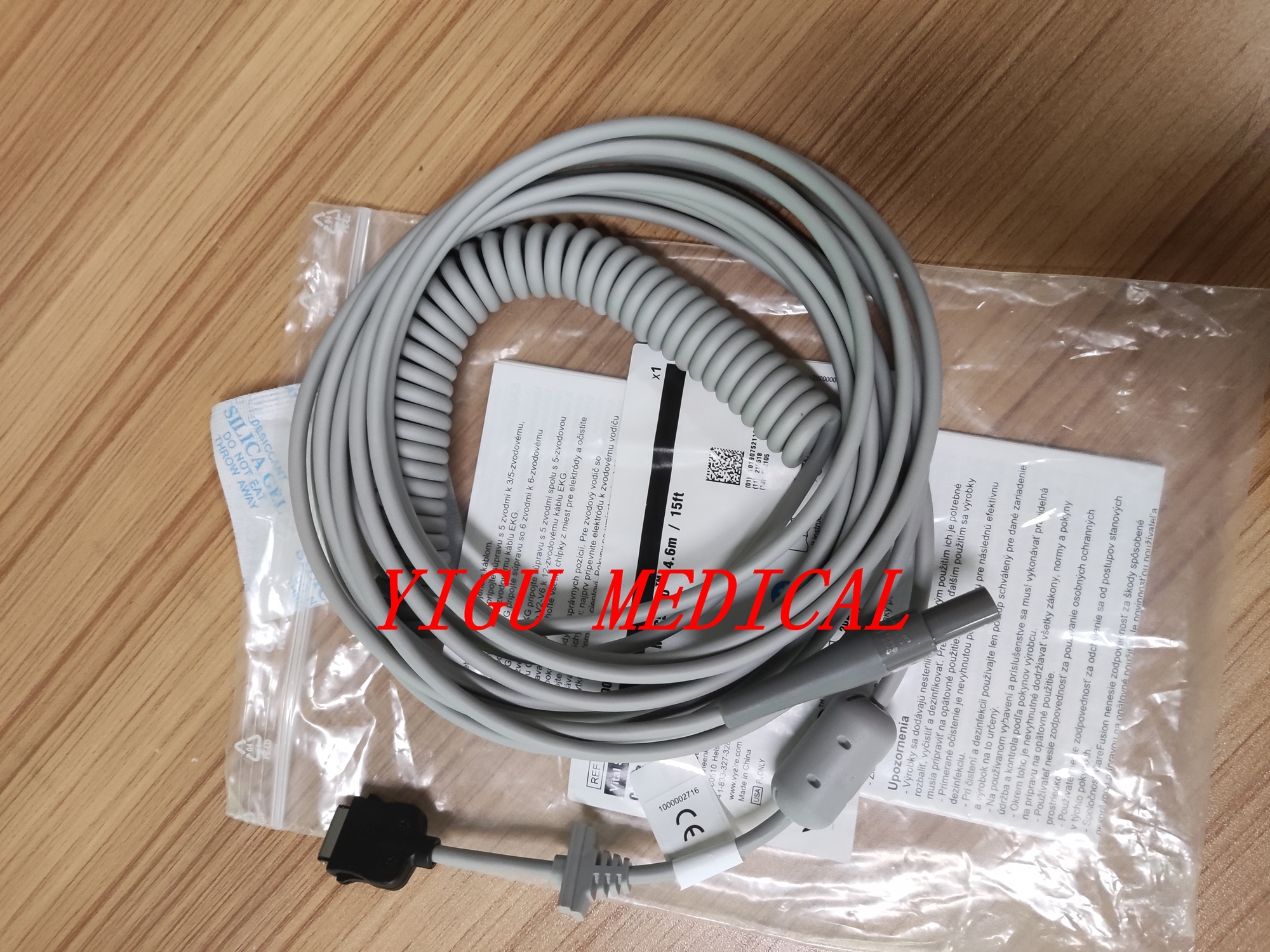

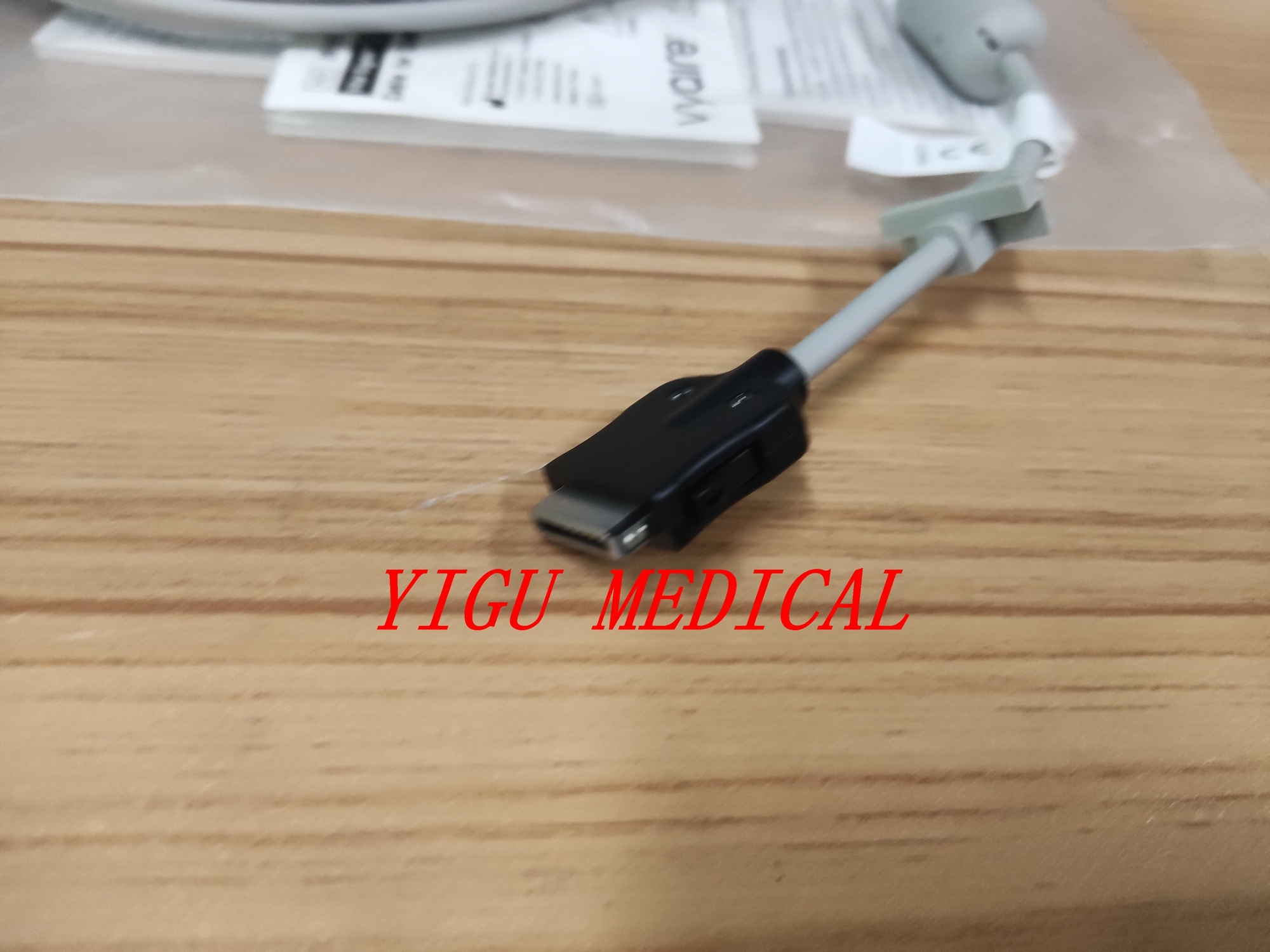

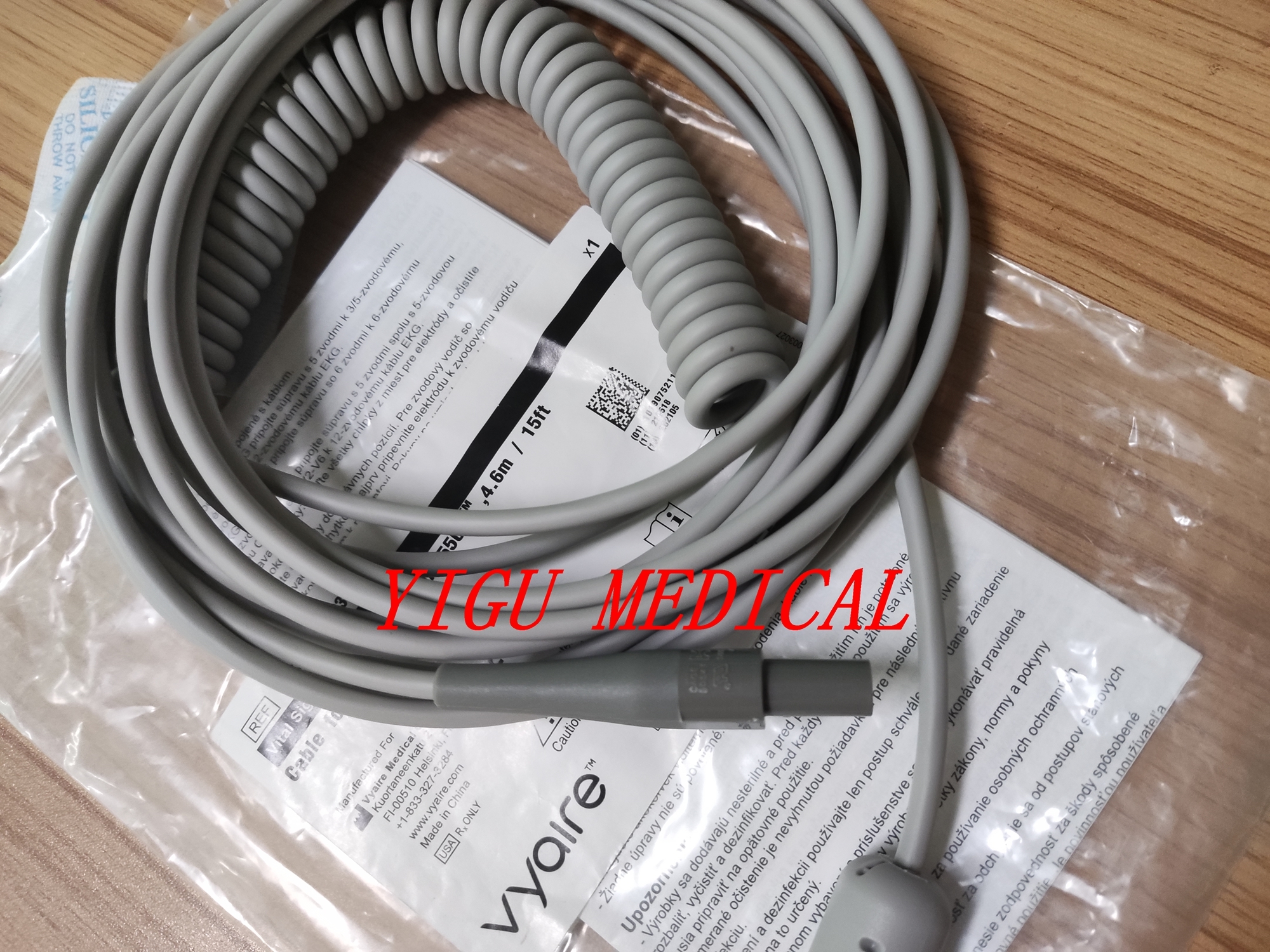

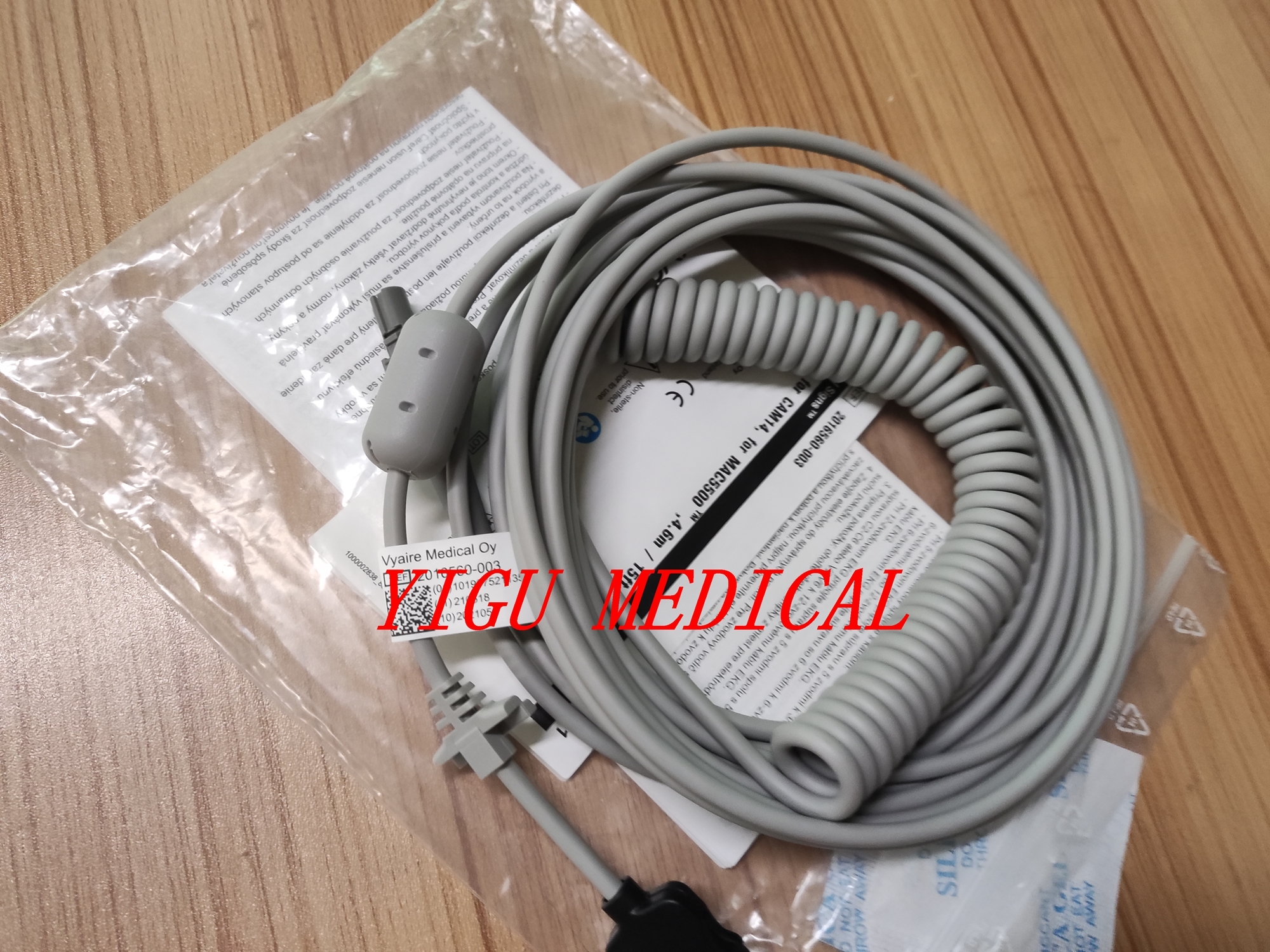

GE Marquette CAM14 Cable Original Brand-new Cable With Part Number 2016560-003

The CAM14 cable (part number 2016560-003) is a high-quality, direct-connect ECG trunk cable designed for use with compatible GE Healthcare patient monitoring and diagnostic systems. As an original, brand-new component, it ensures optimal signal integrity and patient safety, meeting the rigorous standards expected in clinical environments.

The CAM14 Acquisition Module, formally identified as the Printed Circuit Board (PCB) Cam 14 Cable Interface Connector (P/N 801502-001), is a critical internal component of an ECG data acquisition system manufactured by GE HealthCare.

The primary function of the PCB CAM14 is to perform high-resolution ECG data acquisition for use with host equipment. It receives the minute analog ECG signals sent from the patient's skin via electrodes and lead wires. The module then amplifies, digitalizes, and performs some initial processing on these signals before transmitting them to a host unit, such as a patient monitor or an exercise stress testing system.

The CAM14 acquisition module is a component within an acquisition module assembly and is not a standalone, self-contained module. It connects to a broader ECG monitoring system that includes a patient monitor, a Data Acquisition System (DAS), a processor, and other components. The CAM14 PCB serves as the cable interface connector for lead wires, linking them to the host device via a 9-Pin connector and a flex circuit.

This module is compatible with the following GE product lines: CAM 14, CAM 14 v1, CAM 14 v2, CAM HD.
