GE Dash 2500 Compatible AC Power Supply Board with PN 2023940-001 3 Month Warranty
GE Dash 2500 Compatible AC Power Supply Board with PN 2023940-001 3 Month Warranty
GE Dash 2500 Compatible AC Power Supply Board with PN 2023940-001 3 Month Warranty GE Dash 2500 Compatible AC Power Supply Board with PN 2023940-001 3 Month Warranty GE Dash 2500 Compatible AC Power Supply Board with PN 2023940-001 3 Month Warranty GE Dash 2500 Compatible AC Power Supply Board with PN 2023940-001 3 Month Warranty GE Dash 2500 Compatible AC Power Supply Board with PN 2023940-001 3 Month Warranty GE Dash 2500 Compatible AC Power Supply Board with PN 2023940-001 3 Month Warranty GE Dash 2500 Compatible AC Power Supply Board with PN 2023940-001 3 Month Warranty GE Dash 2500 Compatible AC Power Supply Board with PN 2023940-001 3 Month Warranty

GE Dash 2500 Compatible AC Power Supply Board with PN 2023940-001 3 Month Warranty

Product Details:
Brand Name: GE
Model Number: DASH2500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: normal package
Delivery Time: 1-3 work days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 50
Contact Now
  • Detail Information
  • Product Description

Detail Information
Charges: Negotiation Power: 100V-240V， 50Hz-60Hz
Cost: Negotiate Packing Weight: 0.5kg
Applicable Devices: Patient Monitors Model: DASH2500
Machine Type: Medical Equipments Conditions: In Good Working
Warranty: 90 Days Warranty Leadtime: 1-2 Business Days Once Payment Is Done
Stocks: 50 Pcs Transportation: Express
Highlight:

90-264V AC Input AC Power Supply Board

,

3 Month Warranty Power Supply Board

,

GE Dash 2500 Compatible Patient Monitor Board

Product Description

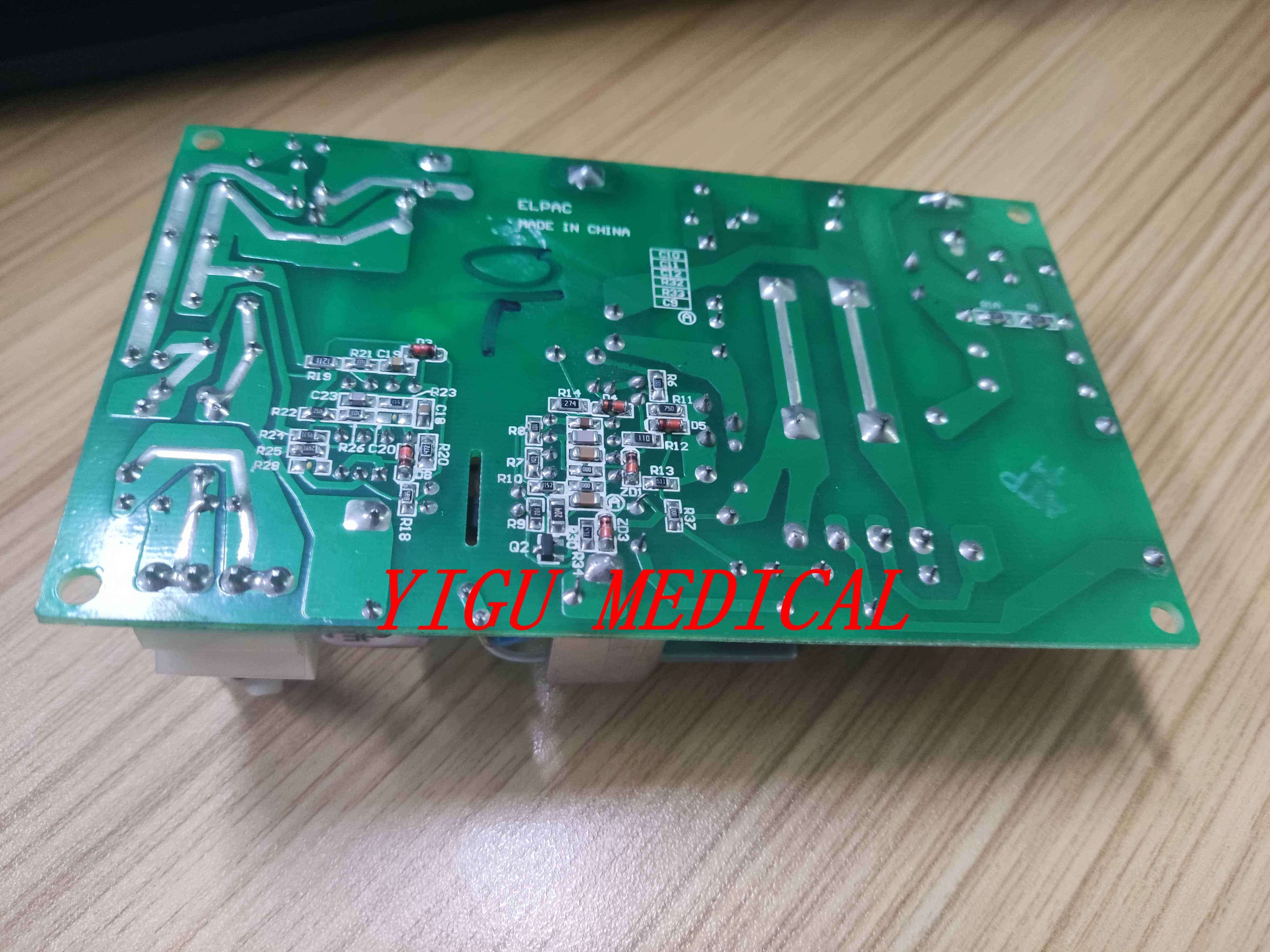

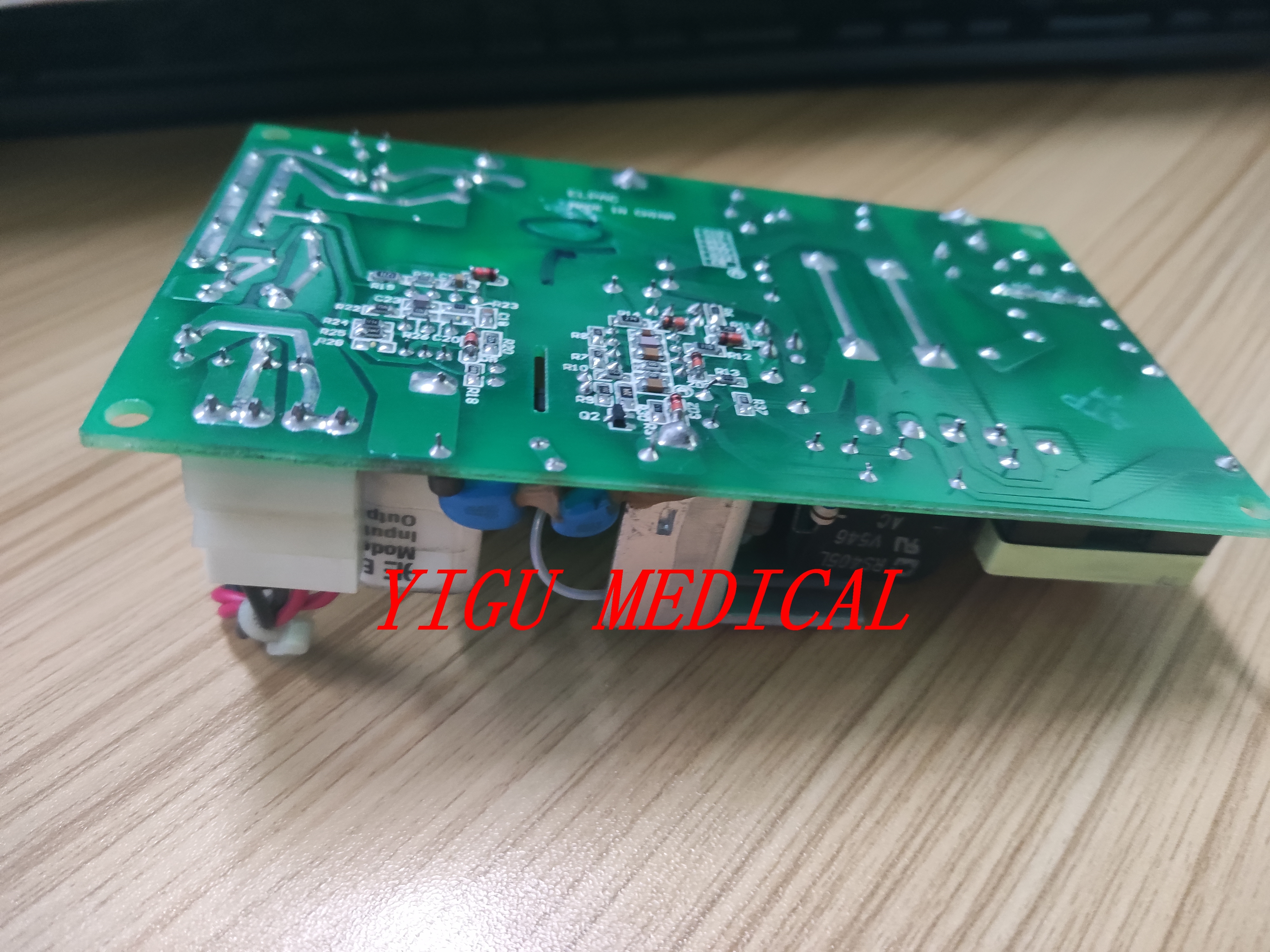

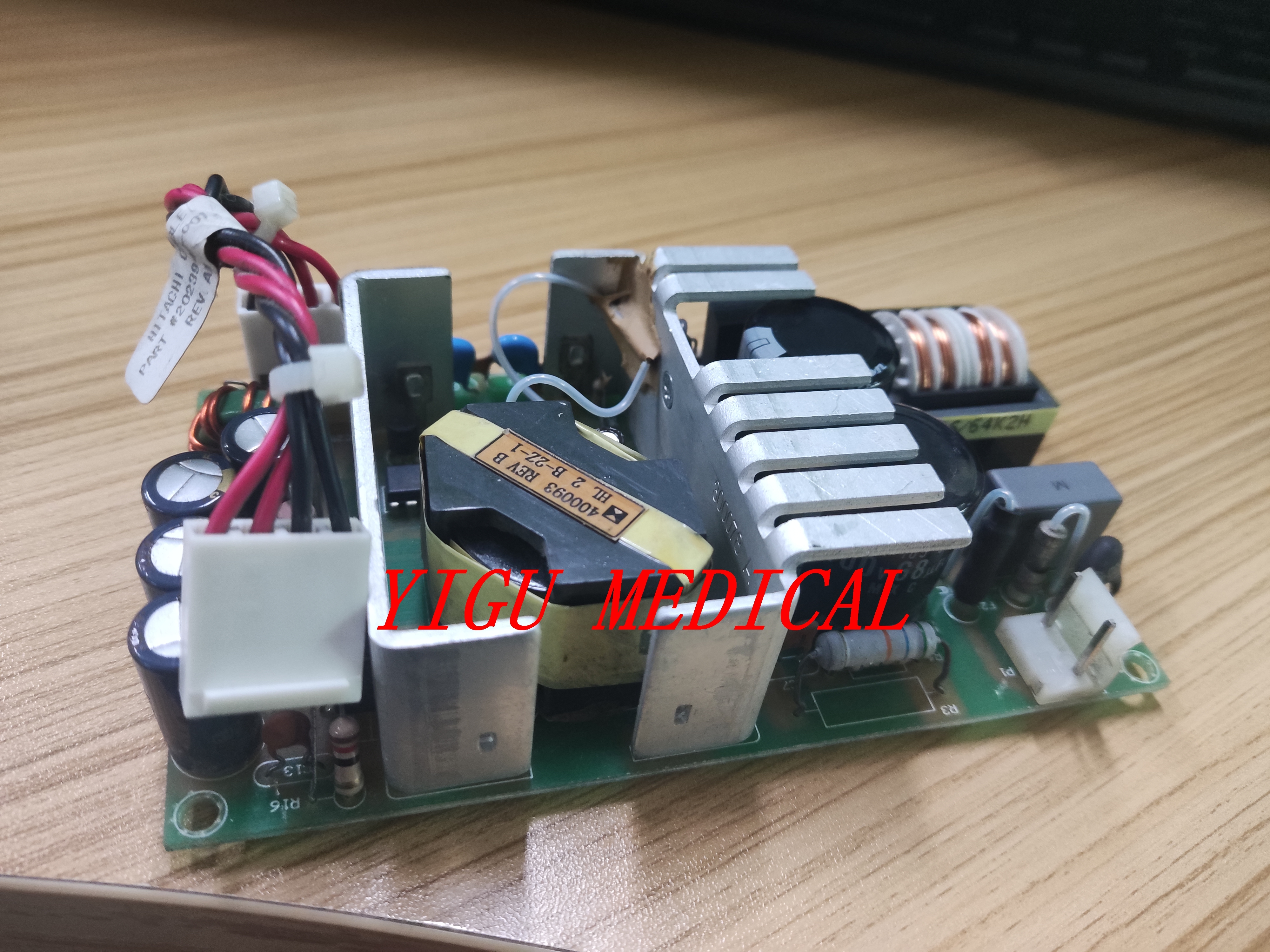

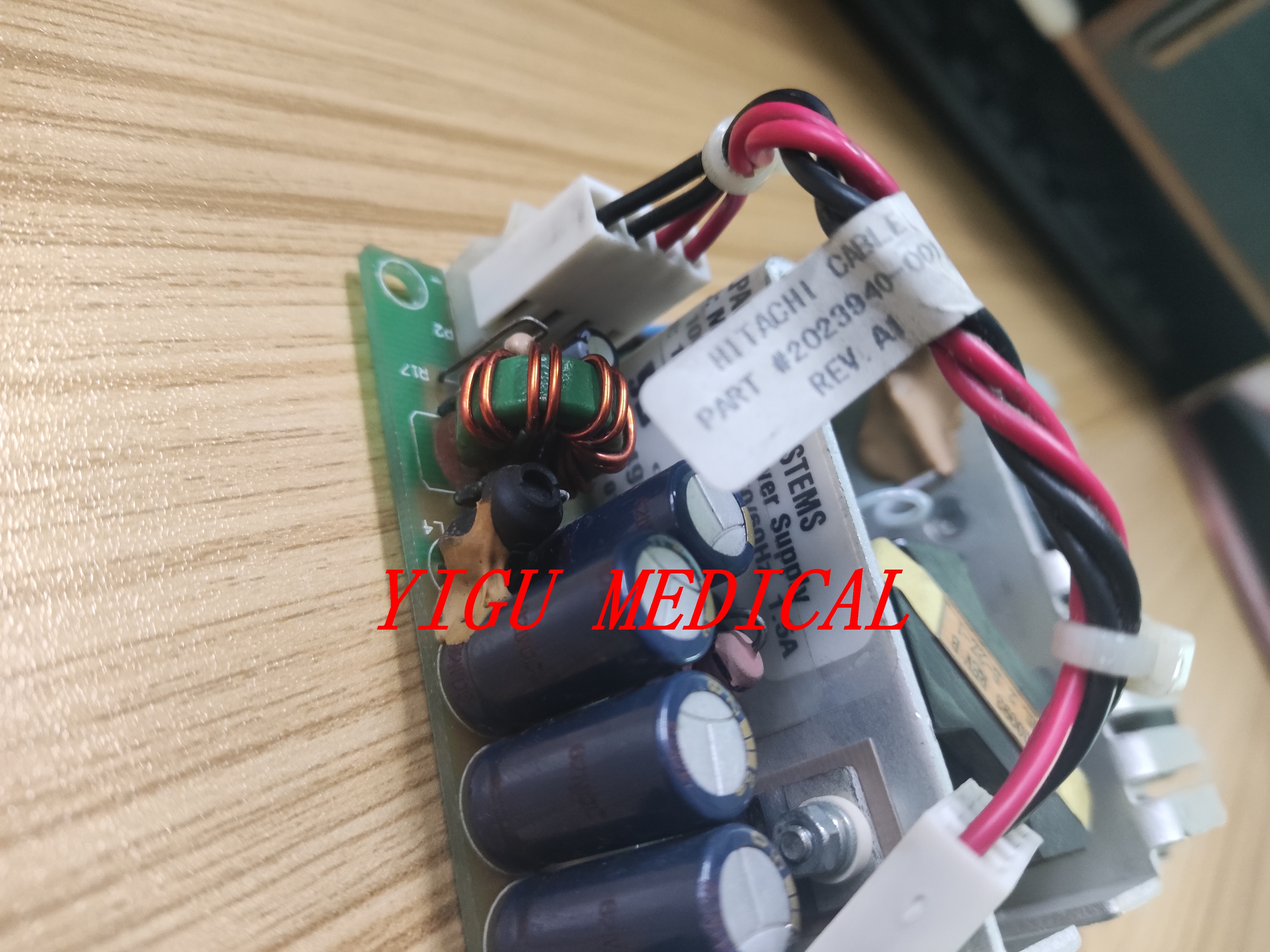

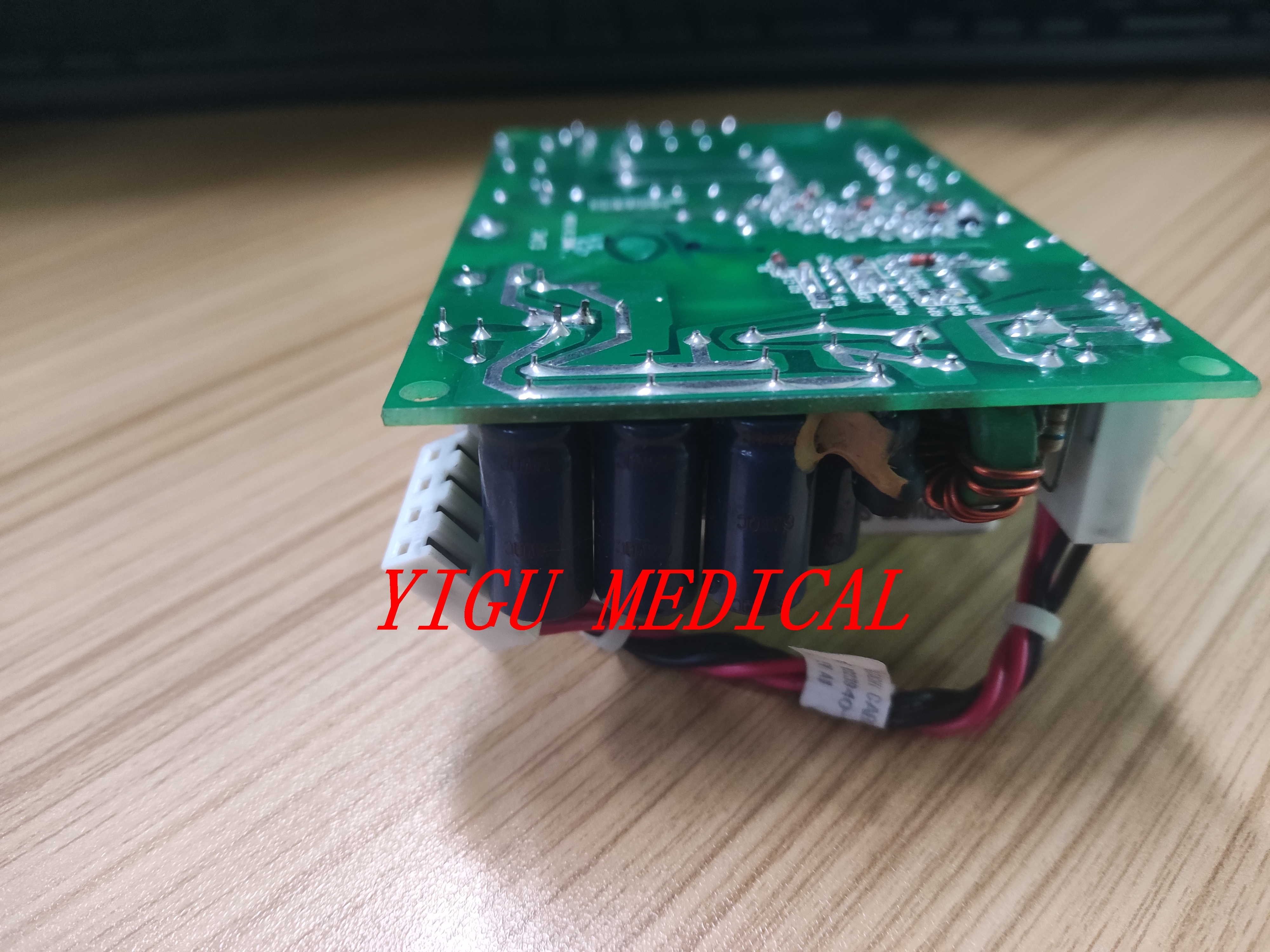

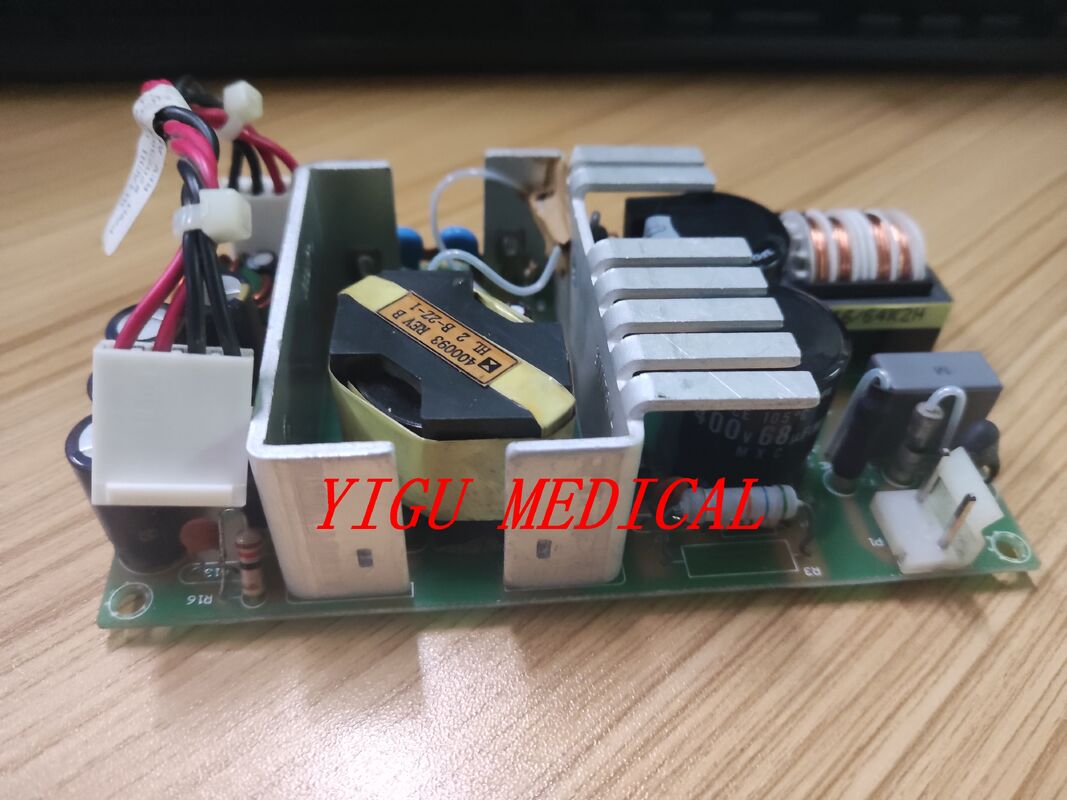

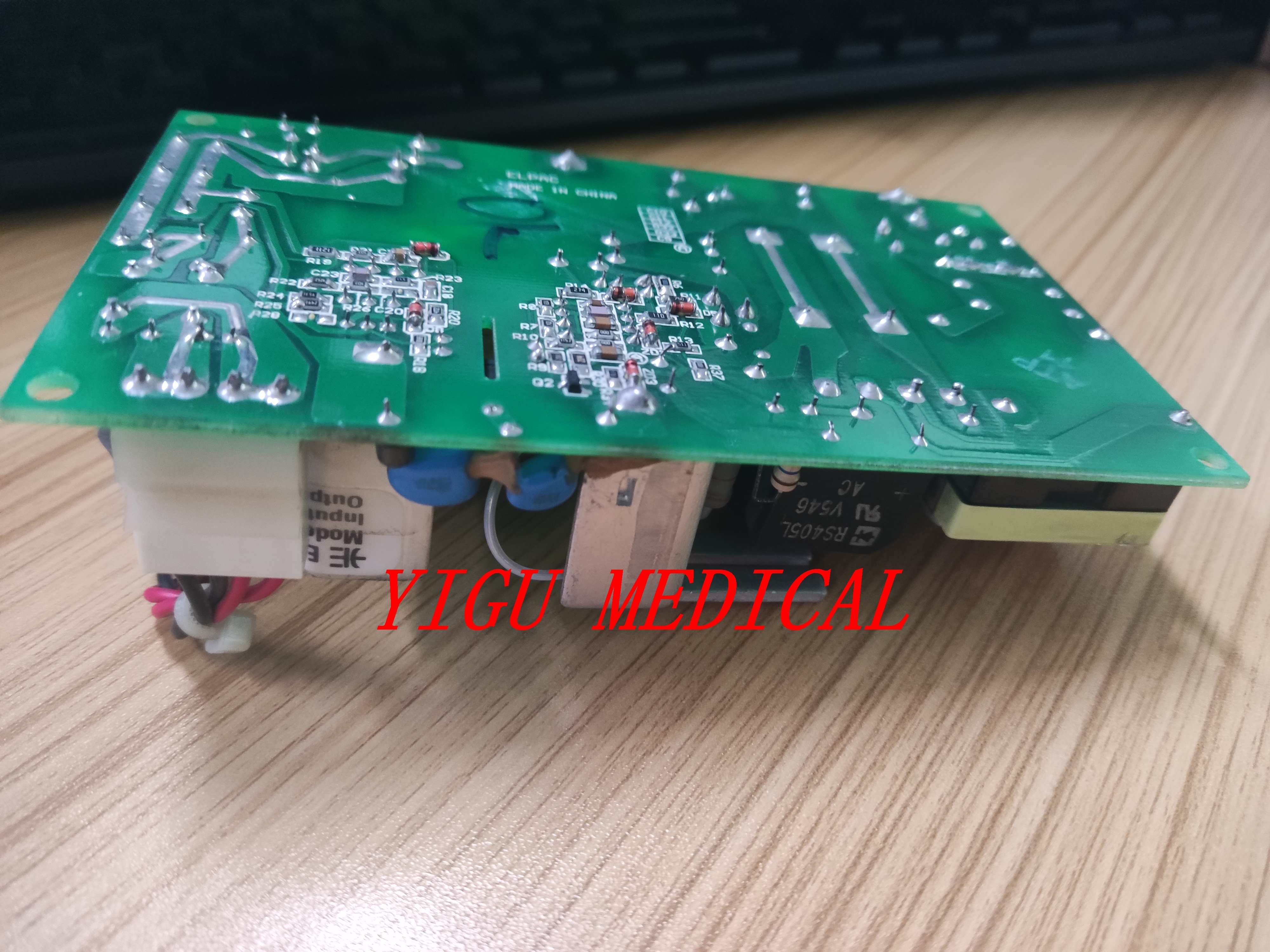

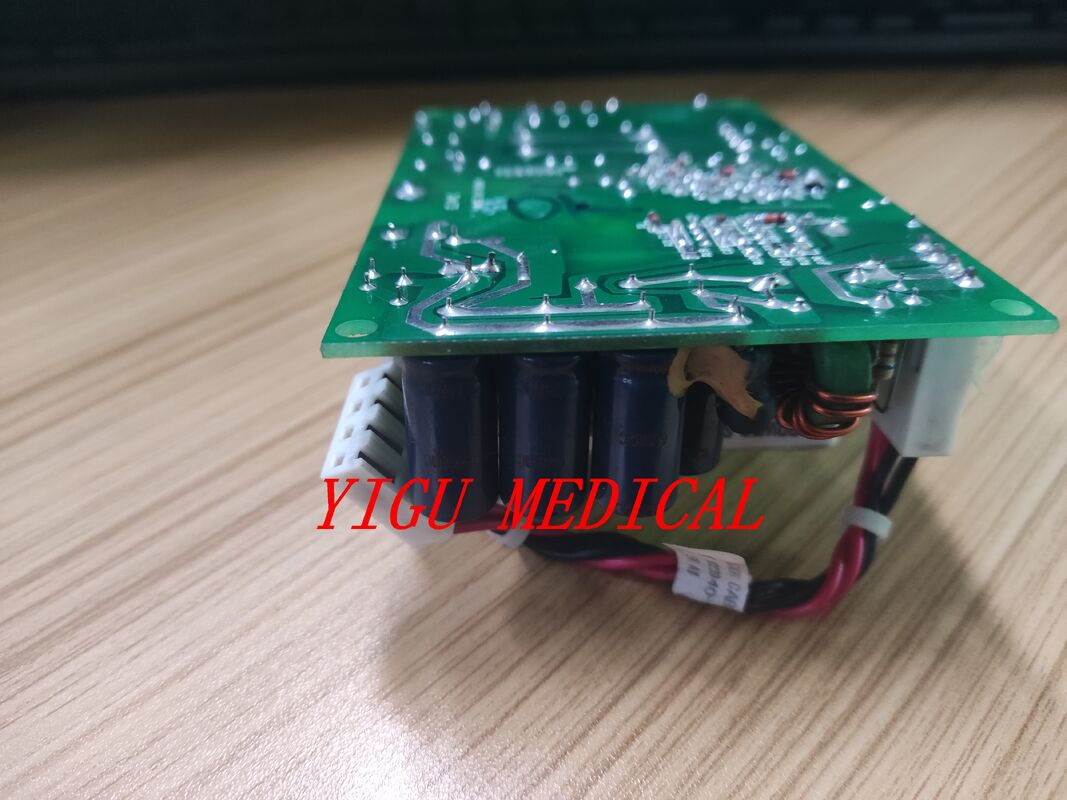

GE Dash 2500 Patient Monitor AC Power Supply Board PN 2023940-001
This genuine GE replacement power supply board (PN 2023940-001) comes with a 3-month warranty and is designed for the Dash 2500 portable patient monitor system.
Product Overview
The GE Dash 2500 is a compact patient monitor engineered for transport, emergency, and bedside applications. Its power supply system delivers maximum flexibility and reliability across diverse clinical environments.
Power Supply Components & Options
Internal Power Supply
  • Primary Function: Converts external power sources to appropriate operating voltages
  • Input Range: 90-264V AC, 47-63Hz (universal input)
  • Output: Multiple DC voltages (+/-5V, +/-12V, 3.3V) for monitor components
  • Location: Mounted internally on main system board or as separate power board
External Power Sources
Power Source Specifications Features
AC Mains Power 100-240V AC, 50/60Hz, 65-90W rating Standard IEC C13/C14 connection
DC/Battery Power 14.4V or 10.8V lithium-ion battery, 2-4 hours runtime Internal/removable main battery, optional external packs
Vehicle/Ambulance Power 12V/24V vehicle systems Surge and reverse polarity protection
Key Power Supply Features
Power Management System
  • Automatic source switching between AC, battery, and vehicle power
  • Intelligent multi-stage battery charging (trickle → fast → maintenance)
  • Real-time battery level monitoring and runtime estimation
  • Visual and audible low battery alarms with configurable thresholds
Redundancy & Reliability
  • Hot-swappable batteries in some configurations
  • Dual battery options for extended runtime
  • Medical-grade power isolation for patient safety
Common Power Supply Issues & Troubleshooting
Power Failure Symptoms
  • Monitor won't power on (no LEDs or display)
  • Intermittent shutdowns during operation
  • Battery not charging or rapid discharge
  • "Check Power Source" error messages
Common Fault Points
Component Symptoms Diagnosis
AC Adapter Failure Monitor works on battery but not AC Check adapter output voltage and cable integrity
Battery Problems Reduced capacity, sudden power loss Check aging cells, controller failure, connector issues
Internal Power Board Loss of specific voltage rails Check failed capacitors, DC-DC converters, blown fuses
Vehicle Power Issues Damaged input protection Check voltage spikes, reverse polarity damage
Quick Reference Summary: The GE Dash 2500 power supply is a multi-source system supporting AC mains, internal batteries, and vehicle power. Key features include automatic source switching, intelligent battery management, and medical-grade safety isolation. Regular maintenance of batteries and connectors is essential for reliable clinical operation.
