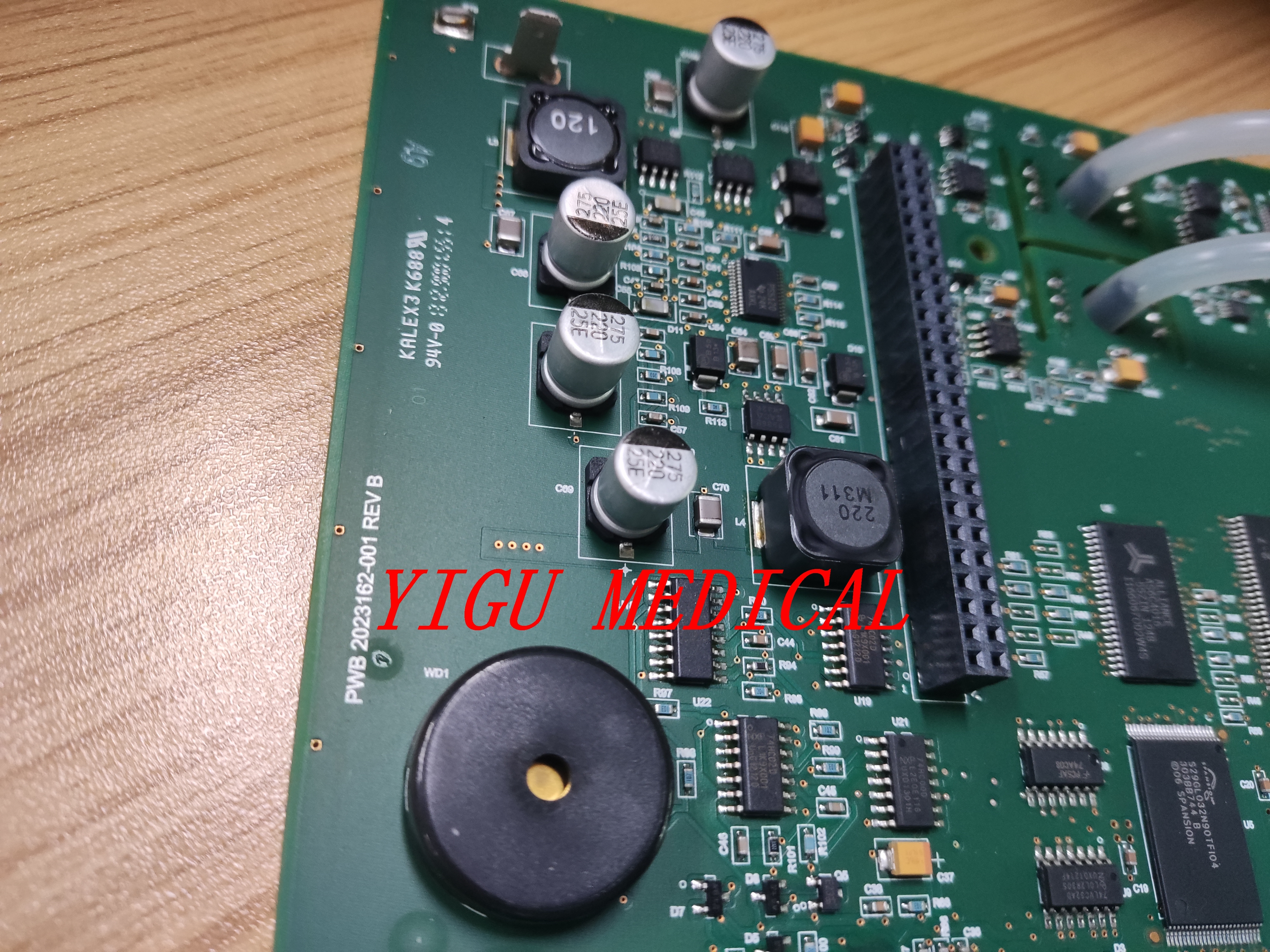

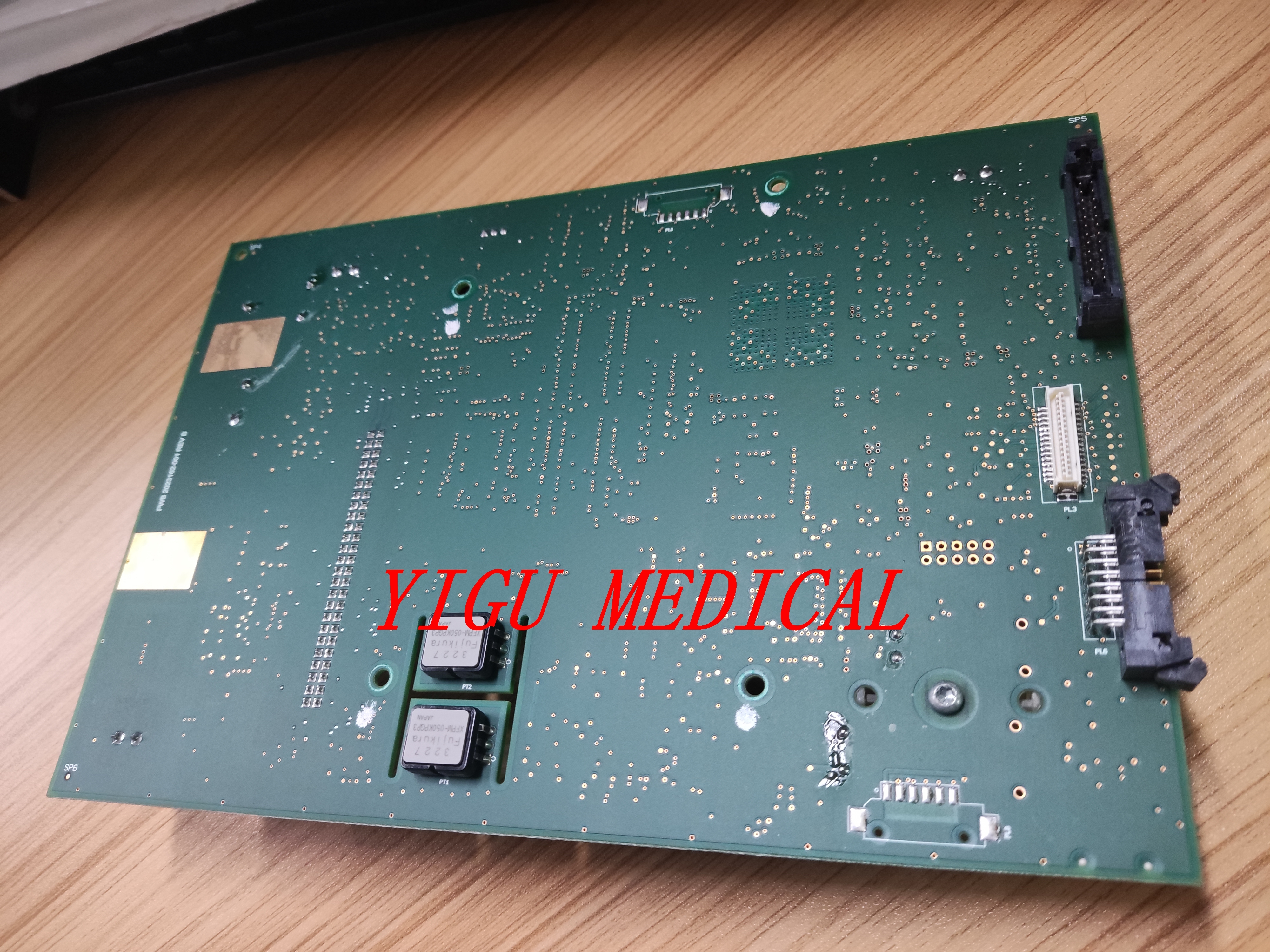

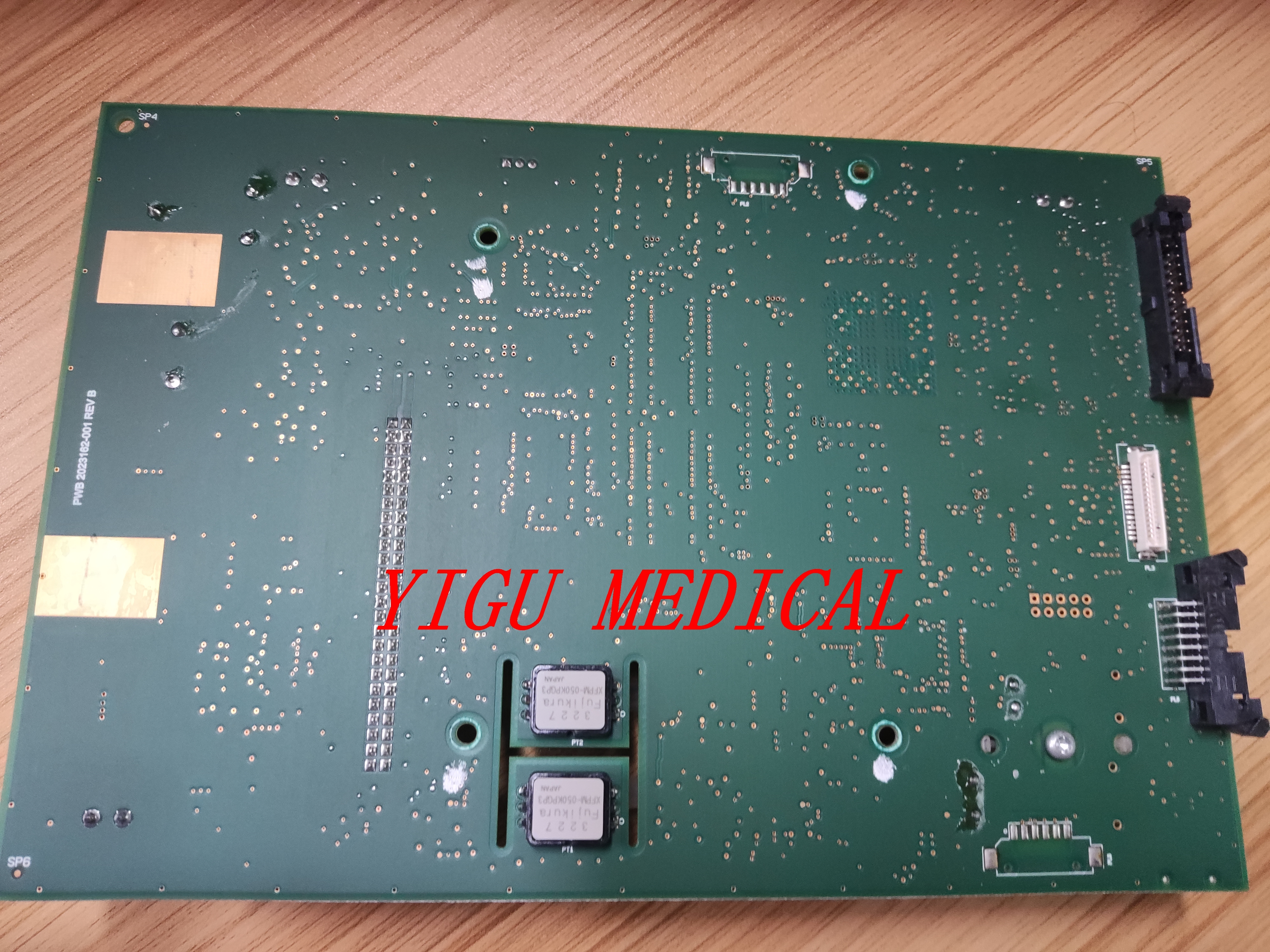

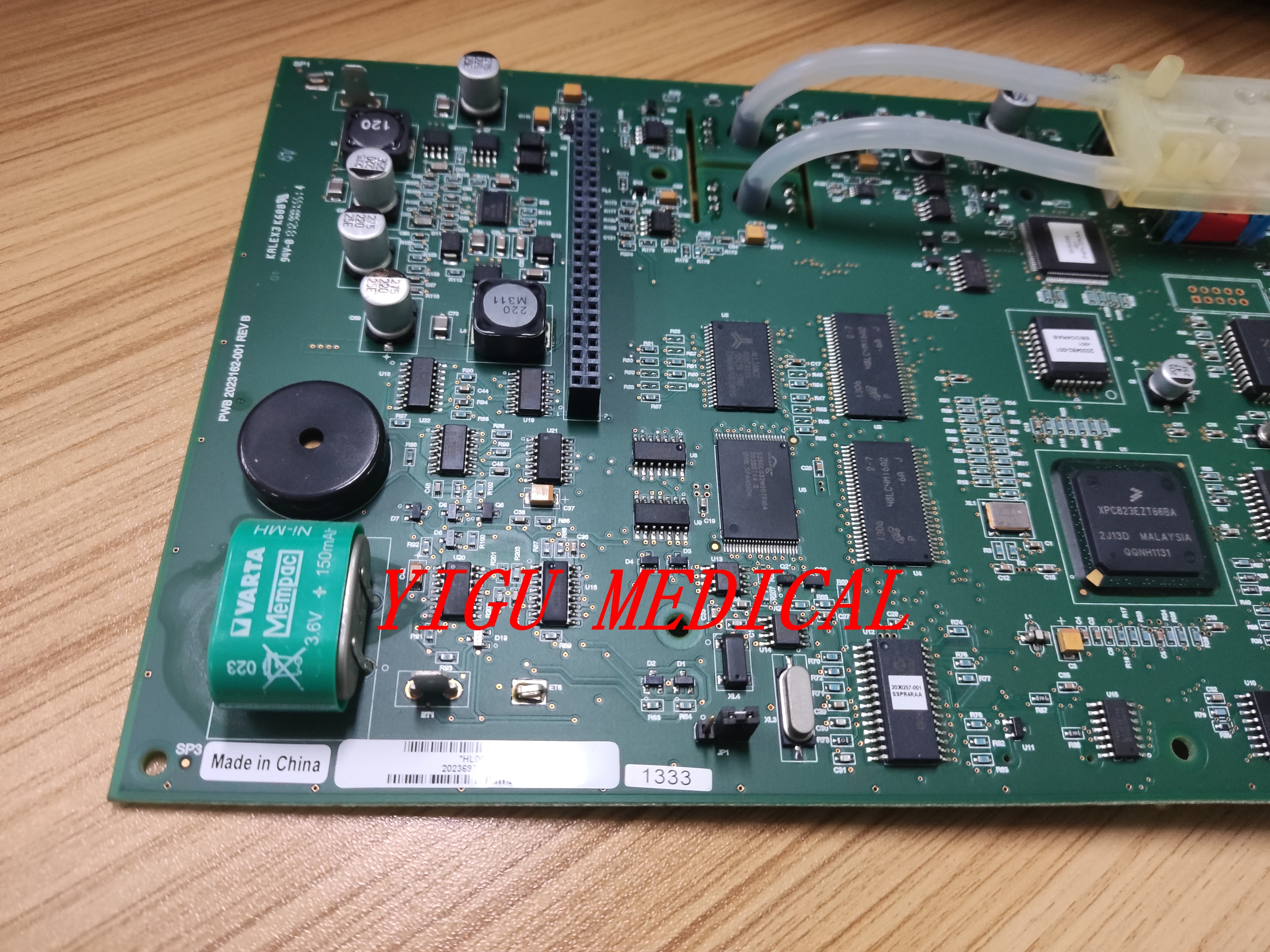

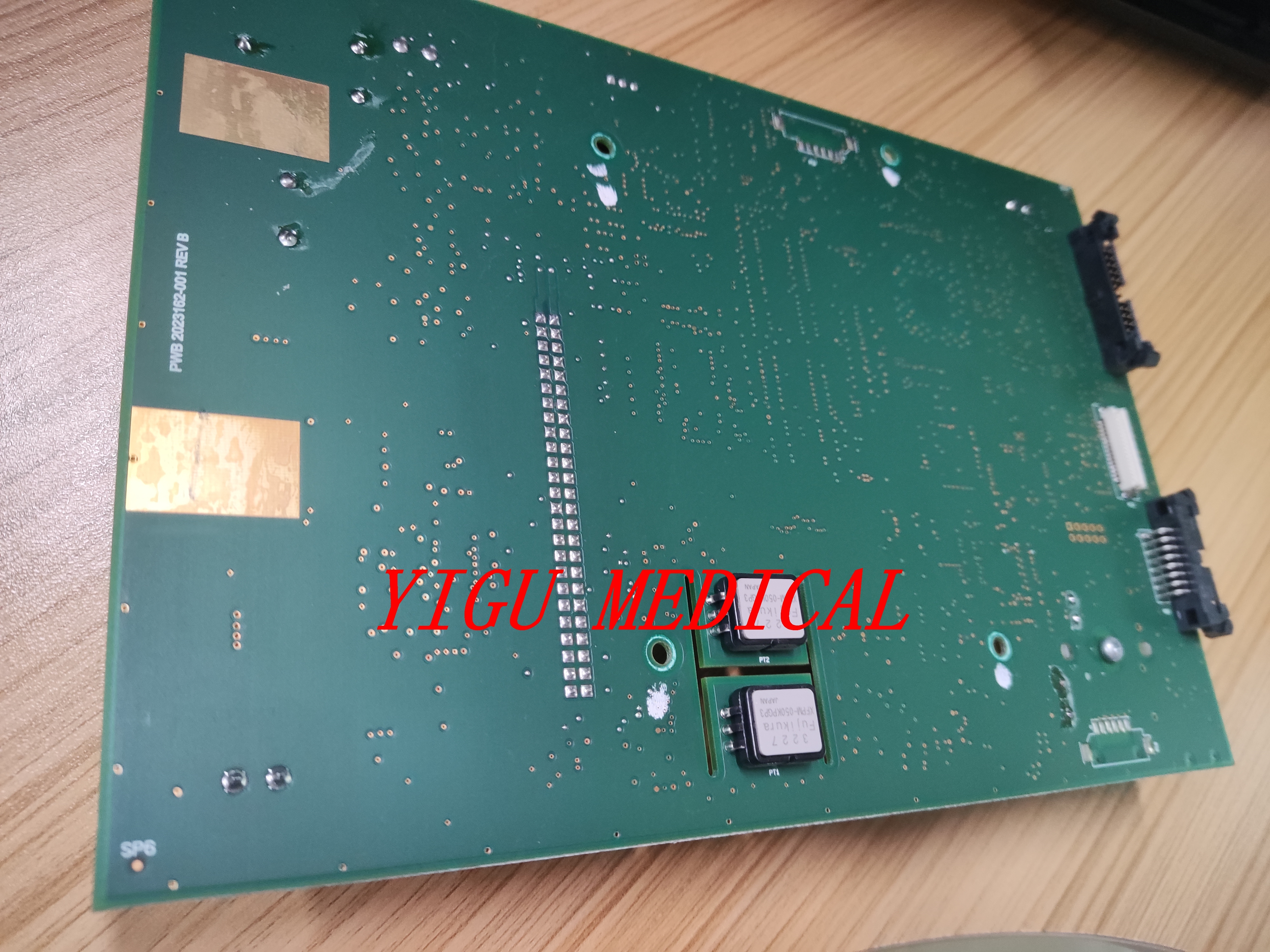

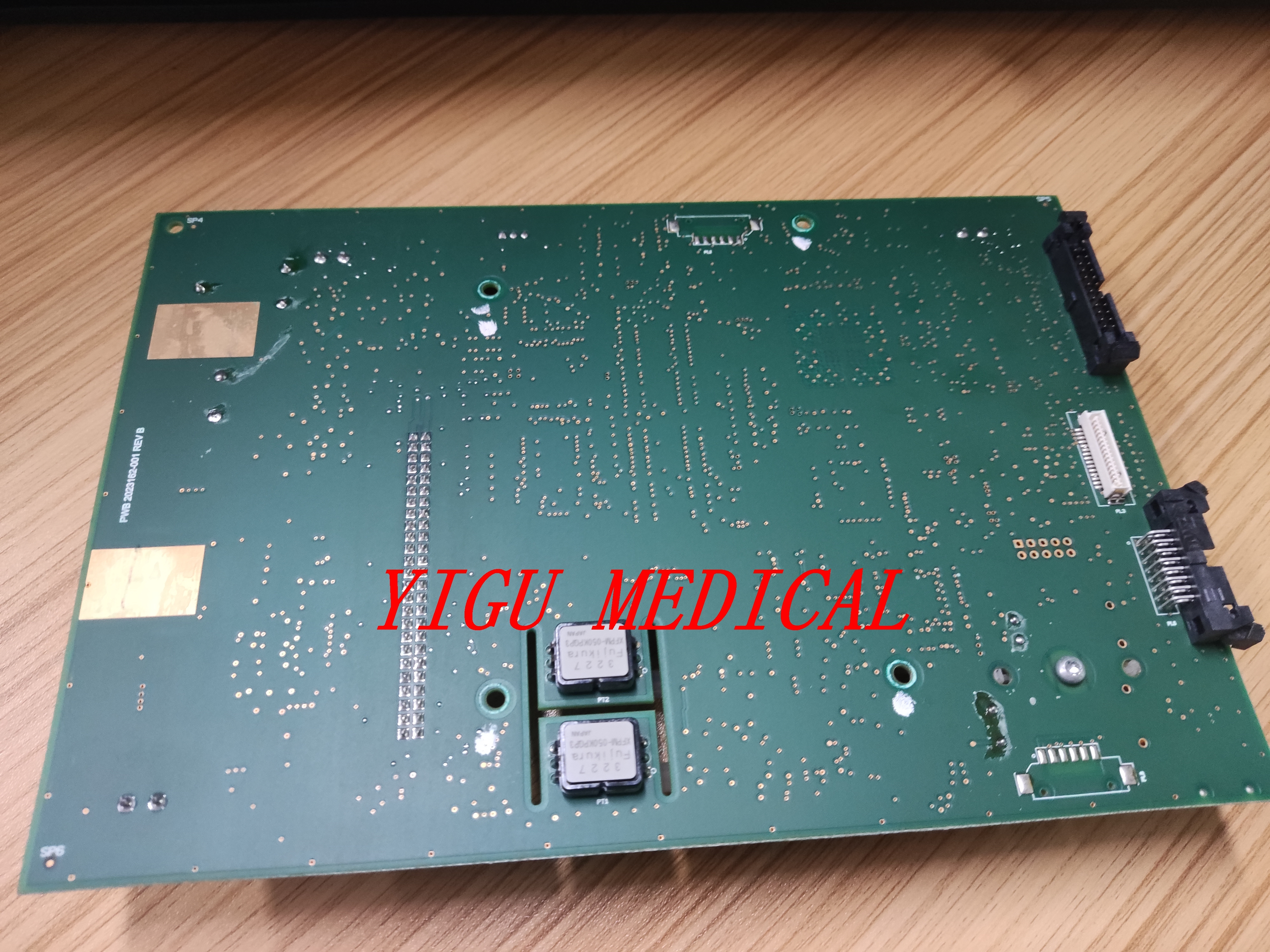

GE Dash2500 Patient Monitor Mainboard PWB 2023162-001 REV B System Board for Monitor Repair

The GE Dash2500 Patient Monitor Mainboard (PWB 2023162-001 REV B) serves as the central printed circuit board that functions as the core processing unit for the Dash 2500 patient monitoring system. This monitor motherboard is specifically engineered for medical applications and handles all critical system operations.

This mainboard is a large green or blue circuit board positioned behind the display assembly, typically mounted on the monitor's rear cover. It features specialized connectors for the inverter (screen backlight power), front panel controls, and power supply interfaces. As a proprietary medical-grade component, it utilizes custom-designed connectors and components specifically developed for GE patient monitoring systems.

In medical equipment repair protocols, the Dash 2500 mainboard is typically replaced as a complete unit rather than undergoing component-level repair. Replacement procedures often require transferring firmware from the original board or reprogramming the new board with compatible software.
